Disassembly And Assembly With Climate Controlled Seats

REAR SEAT

ARMREST : Disassembly and Assembly


Disassembly

1.Remove the seat cushion and rear seatback. Removal And Installation With Climate Controlled Seats

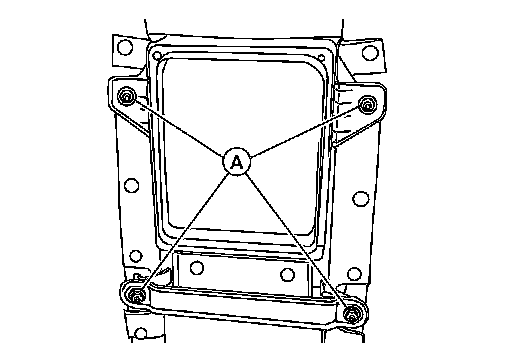

2.Remove armrest bolts (A) and remove the armrest assembly.

Assembly

Assembly is in the reverse order of disassembly.
