Disassembly

DOOR MIRROR

DOOR MIRROR COVER : Disassembly

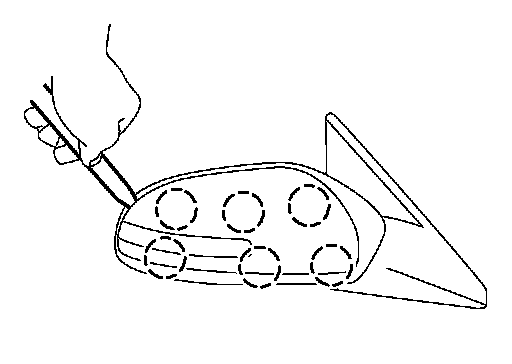

1.Using a suitable tool disengage the upper mirror cover pawls.
Pawl
2.Using a suitable tool disengage the lower mirror cover pawls and remove mirror cover.

CAUTION:
Be careful not to damage the mirror or mirror cover with tool.
