Nissan-Datsun
>>
2012
>>
Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Base Audio
Base Audio
DISPLAY UNIT
Reference Values

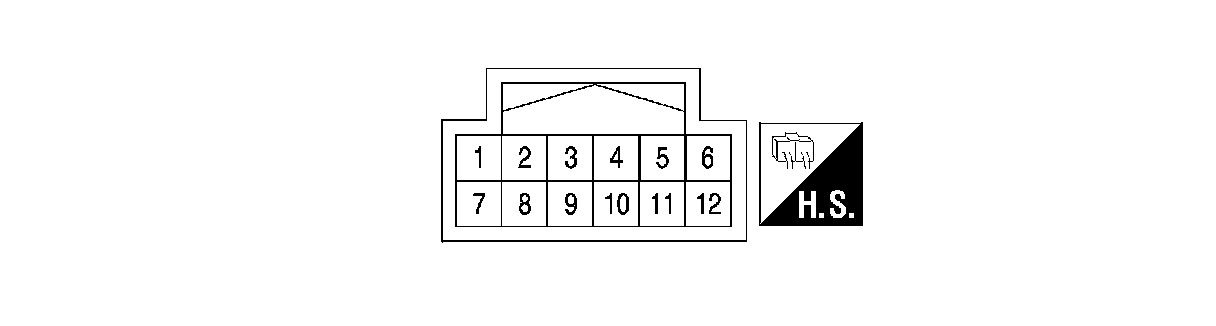

TERMINAL LAYOUT

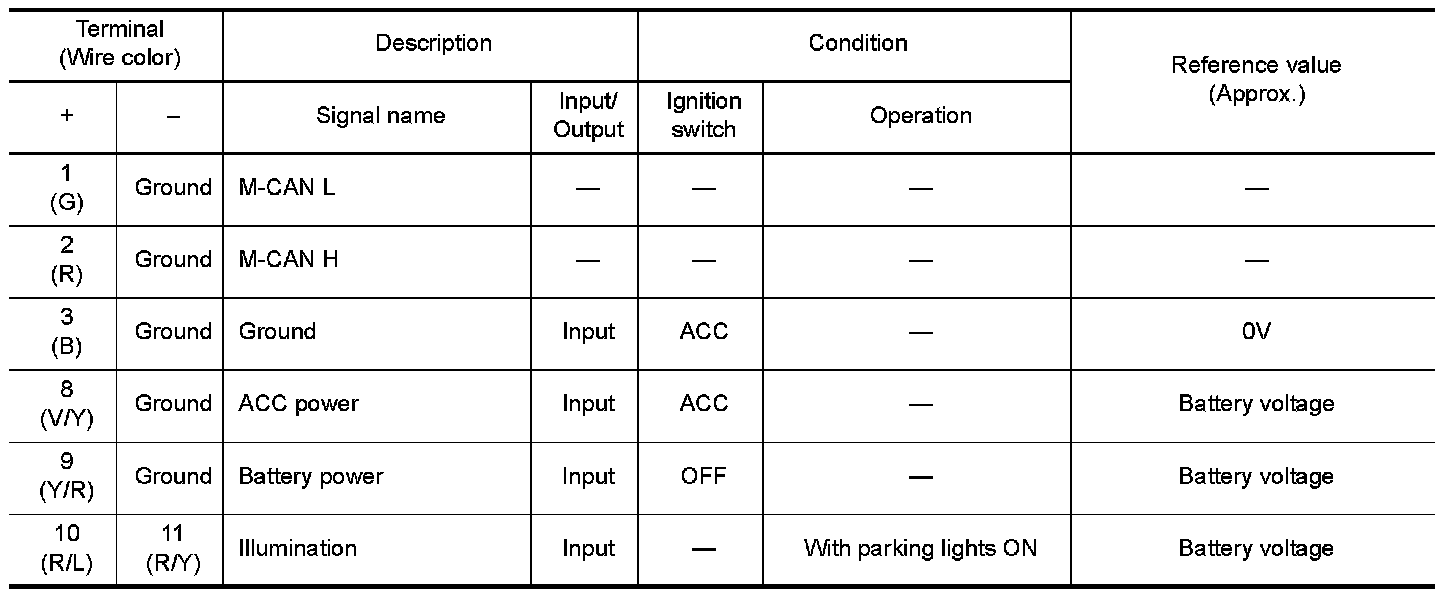

PHYSICAL VALUES
