With Color Display With Navi

REAR VIEW CAMERA

Removal and Installation


REMOVAL

1.Remove the license plate finisher. Xenon Type.
2.Remove trunk lid finisher. Exploded View.

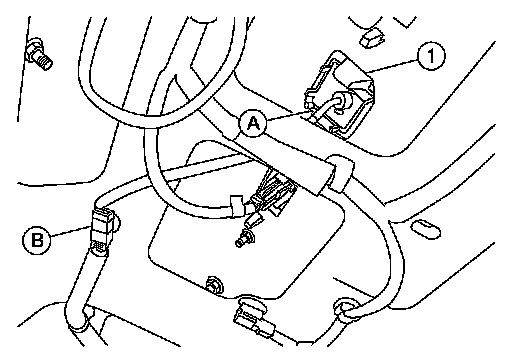

3.Disconnect the rear view camera connector (B), press the rear view camera tab (A) and remove the rear view camera (1).

INSTALLATION

Installation is in the reverse order of removal.
