Rear Washer Nozzle And Tube

REAR WASHER NOZZLE AND TUBE

Removal and Installation


REMOVAL

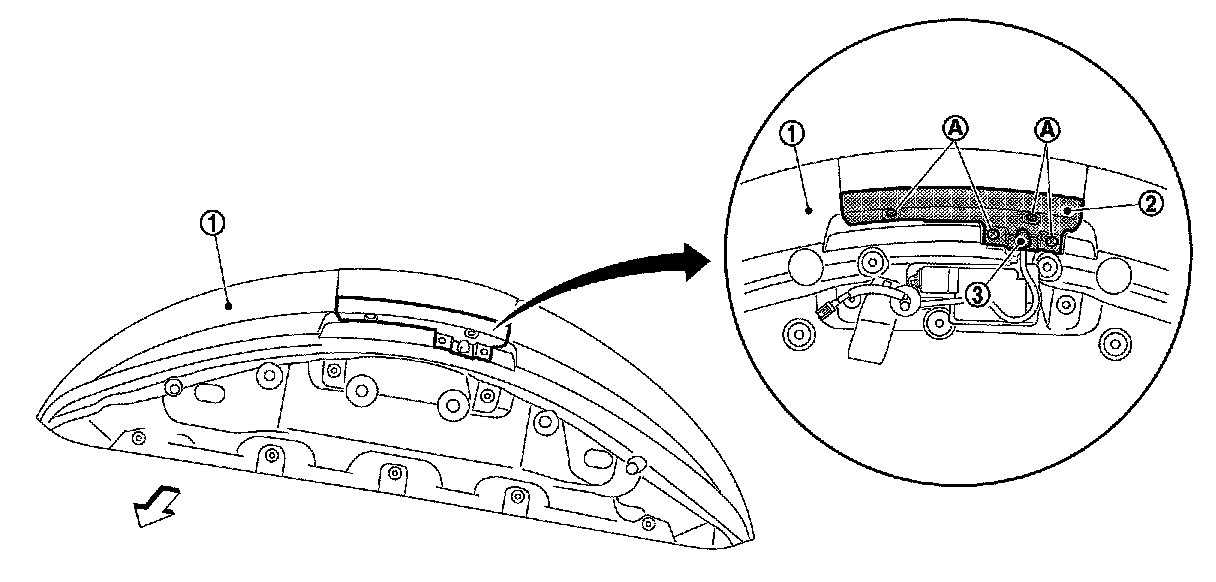

1.Remove rear spoiler (1). Refer to "Removal and Installation" Removal And Installation.






2.Remove high-mounted stop lamp cover (2) mounting screws (A), and then remove the bracket.
3.Disconnect rear washer nozzle tube and remove rear washer nozzle (3) from the bracket.

INSTALLATION

Install in the reverse order of removal.
