Fog/Driving Lamp
>>
Description and Operation
>>
Circuit Diagram
Circuit Diagram
SYSTEM

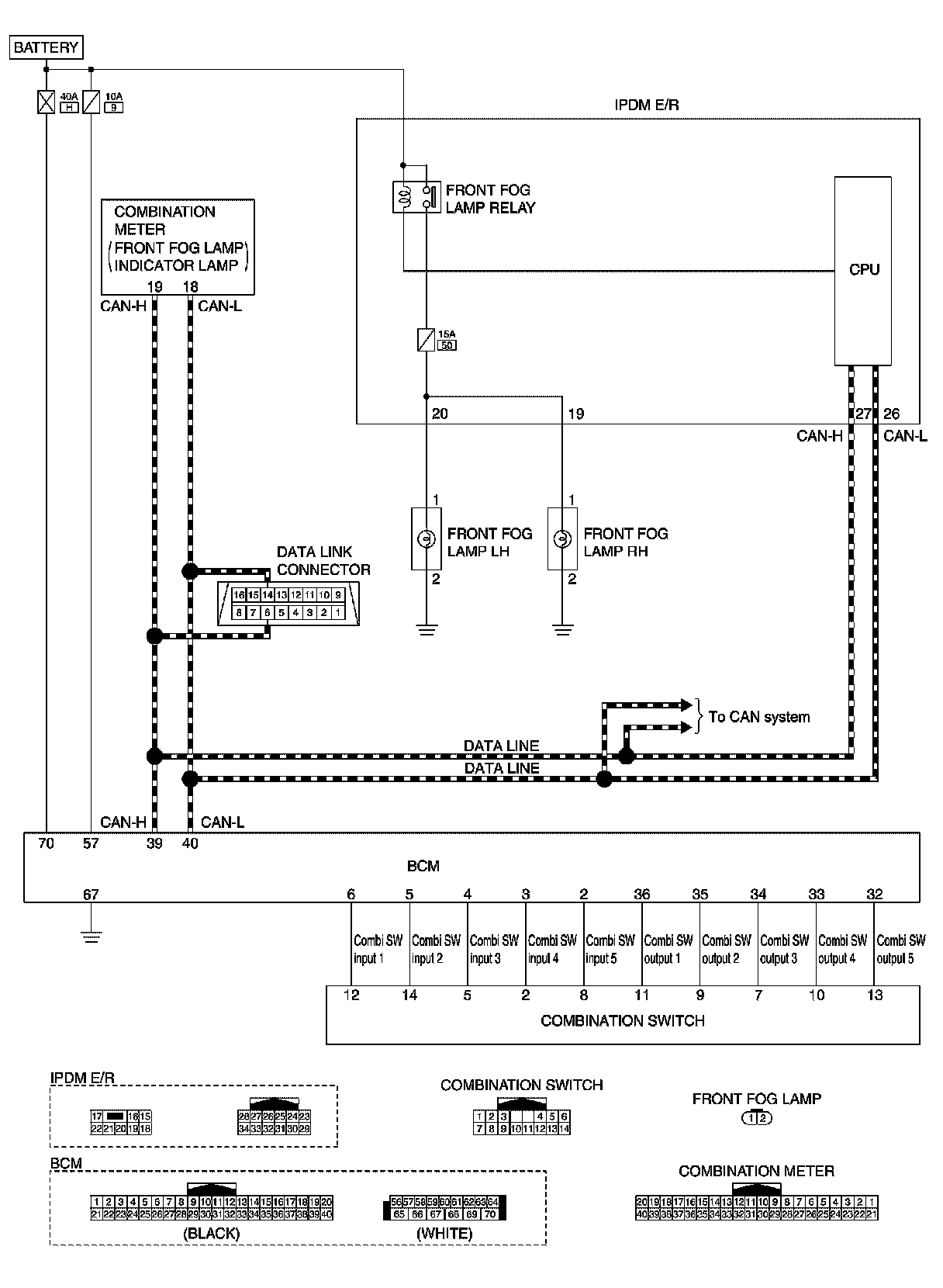

FRONT FOG LAMP SYSTEM : Circuit Diagram
