Auto Light System (For Canada)
>>

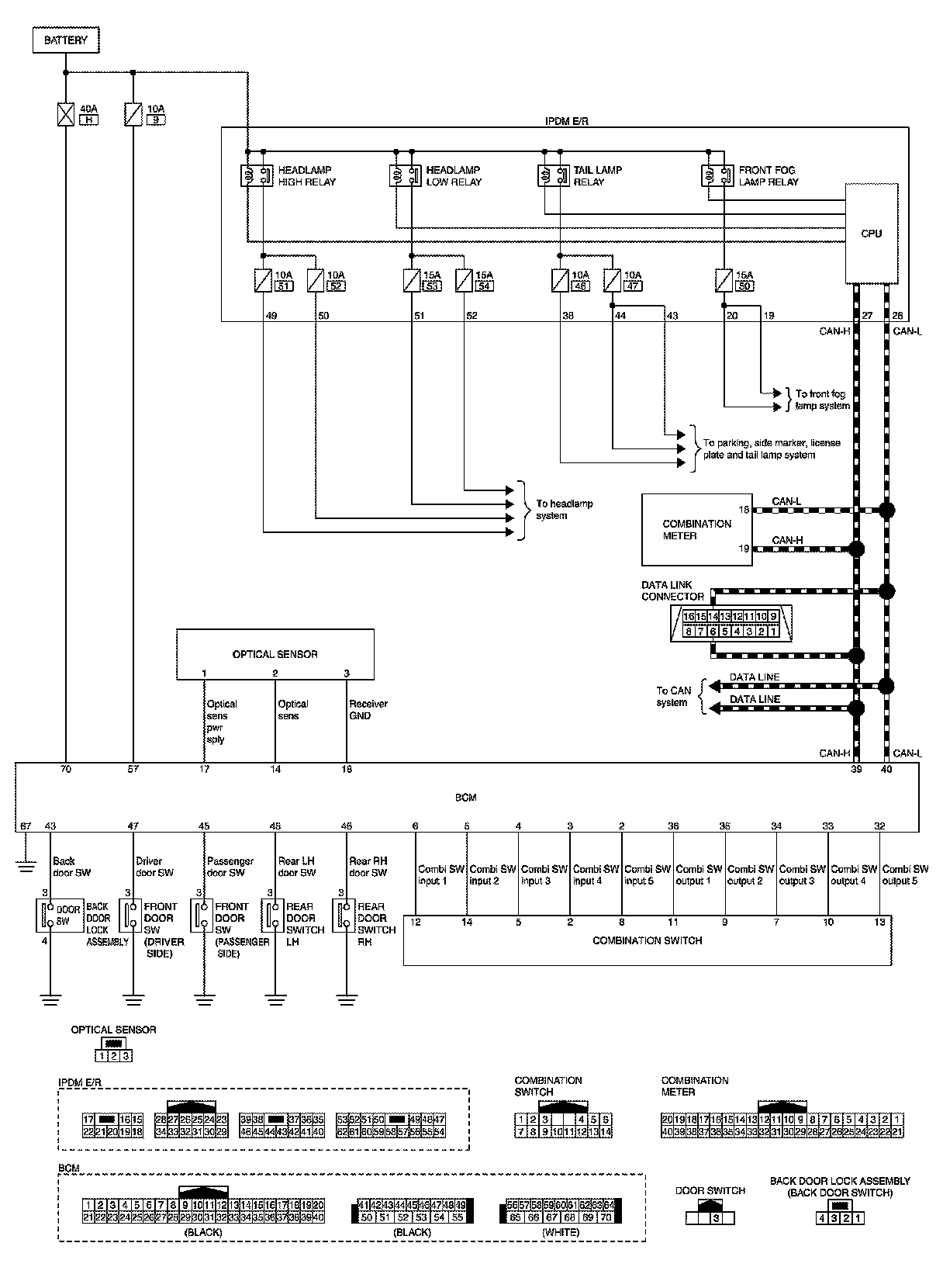

Circuit Diagram
Circuit Diagram
SYSTEM
AUTO LIGHT SYSTEM (FOR CANADA) : Circuit Diagram
