Daytime Running Light System
>>
Circuit Diagram
Circuit Diagram
SYSTEM

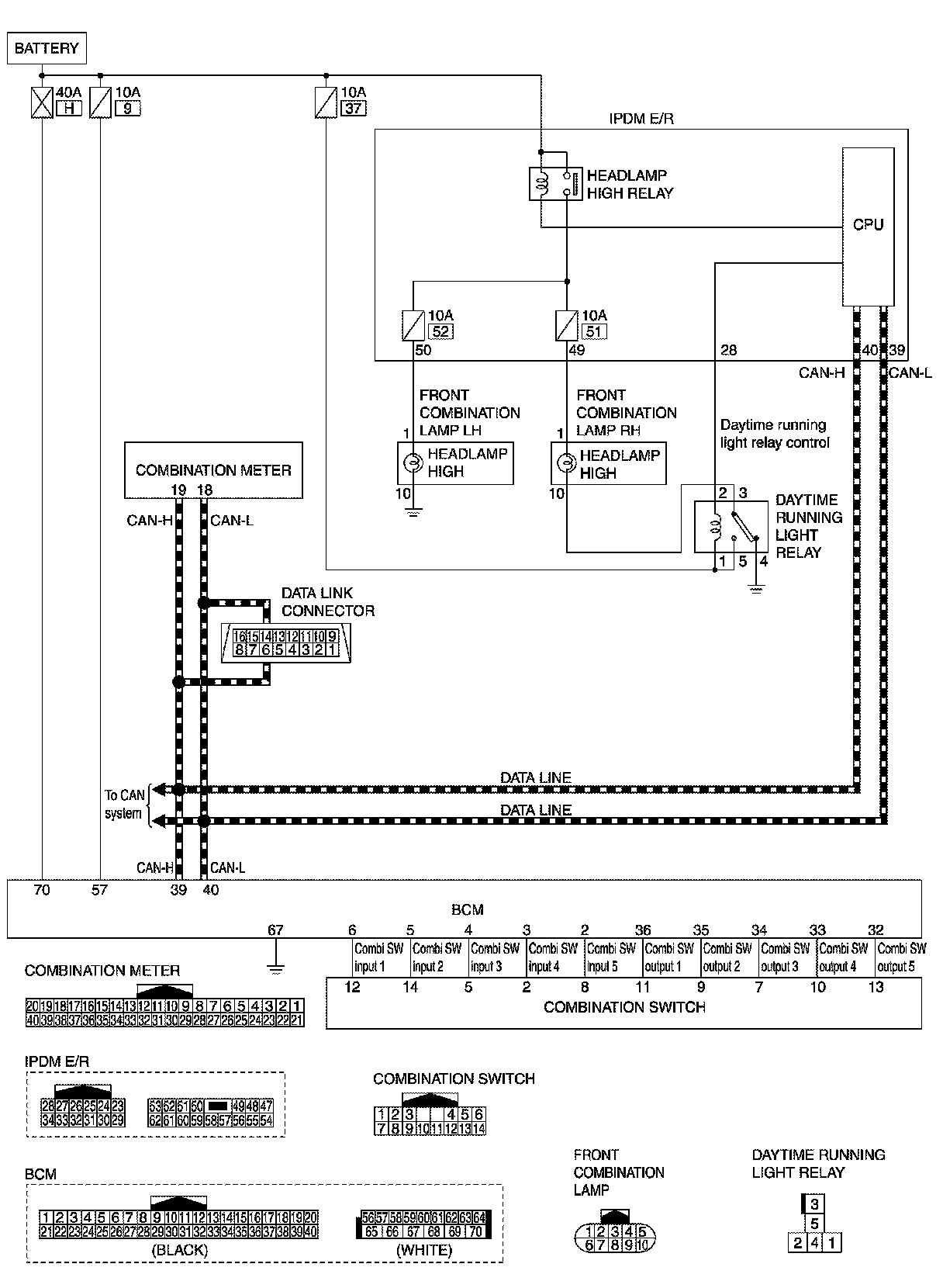

DAYTIME RUNNING LIGHT SYSTEM : Circuit Diagram
