Nissan-Datsun
>>
2012
>>
Leaf ELE-Electric Engine
>>
Repair and Diagnosis
>>
Electric Drive Systems
>>
Battery / Power Control System
>>
DC/DC Junction Box
>>
Service and Repair
>>

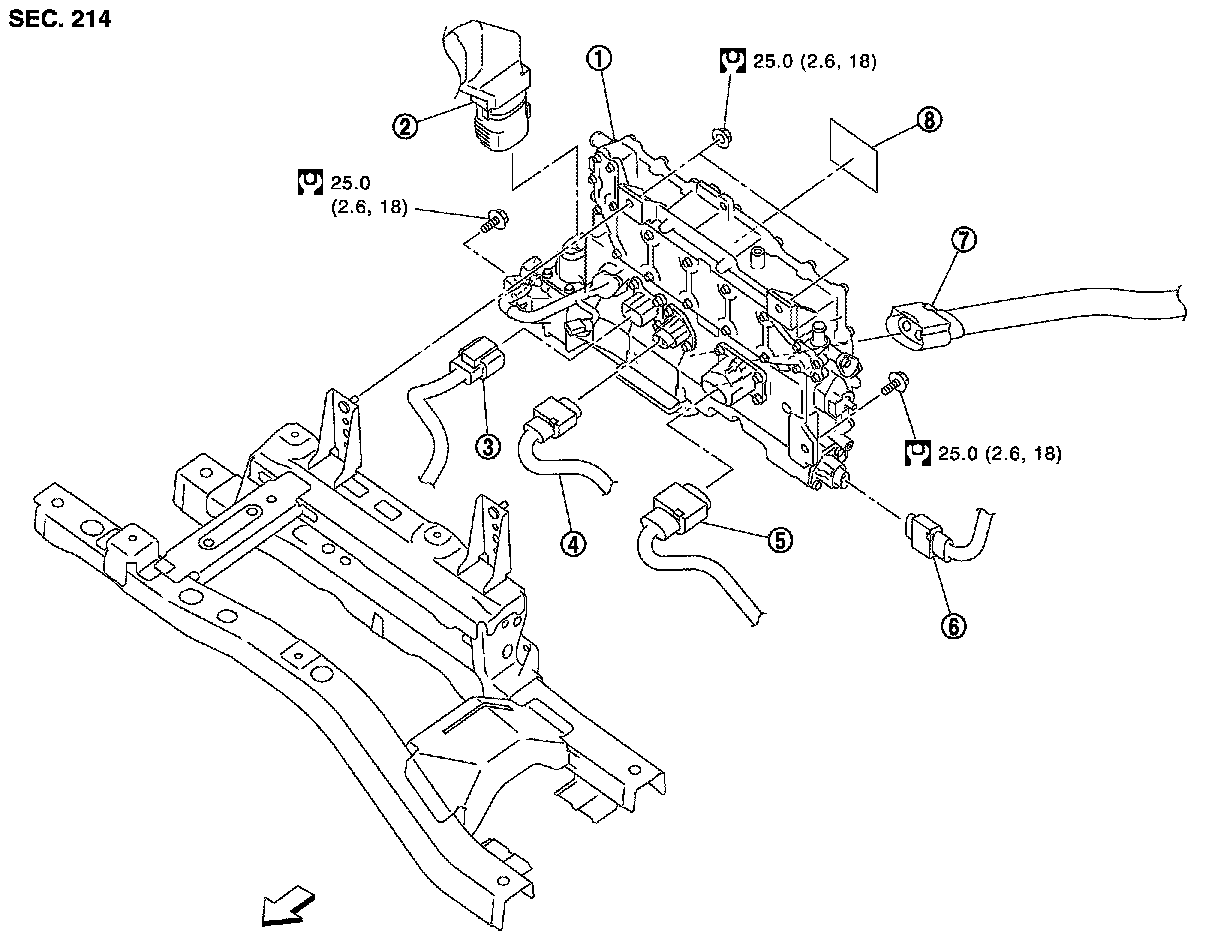

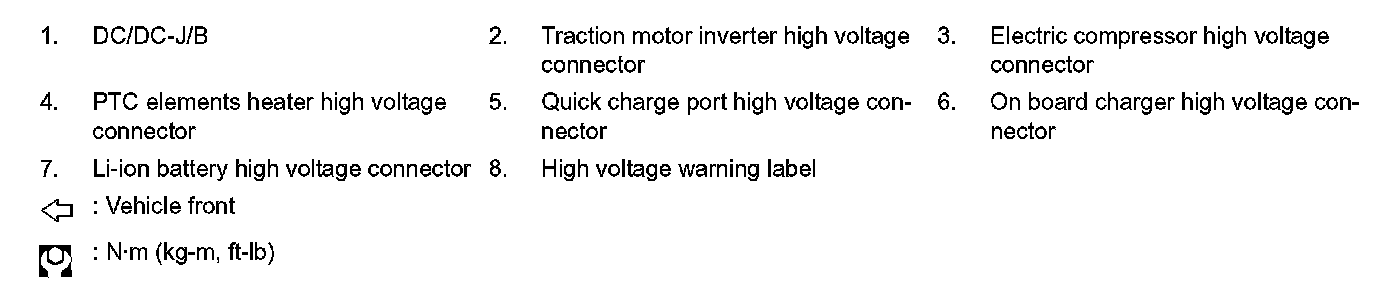

Exploded View
Exploded View
DC/DC-J/B
Exploded View
