Leaf ELE-Electric Engine
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Information
>>
M Main Harness
M Main Harness

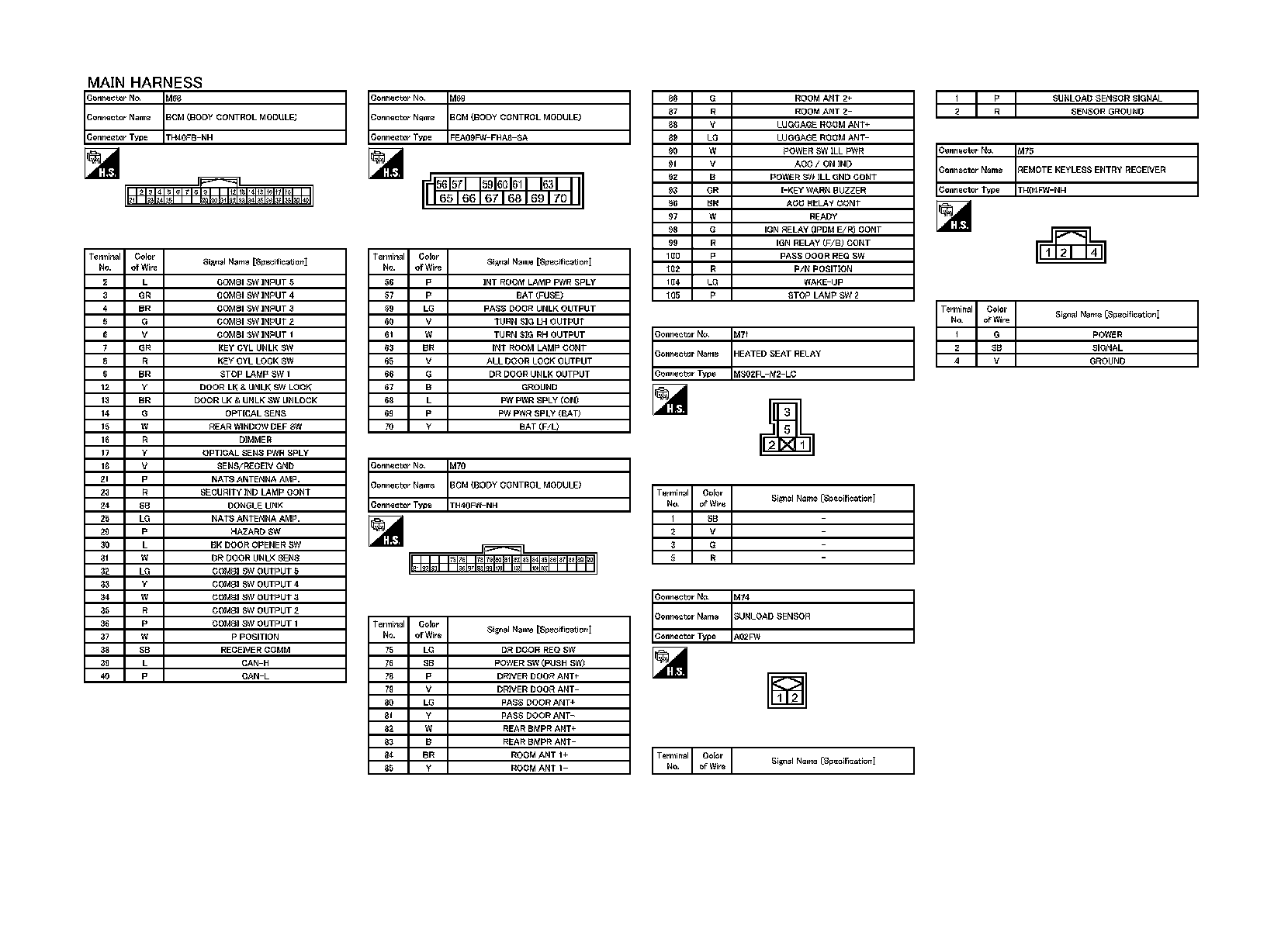

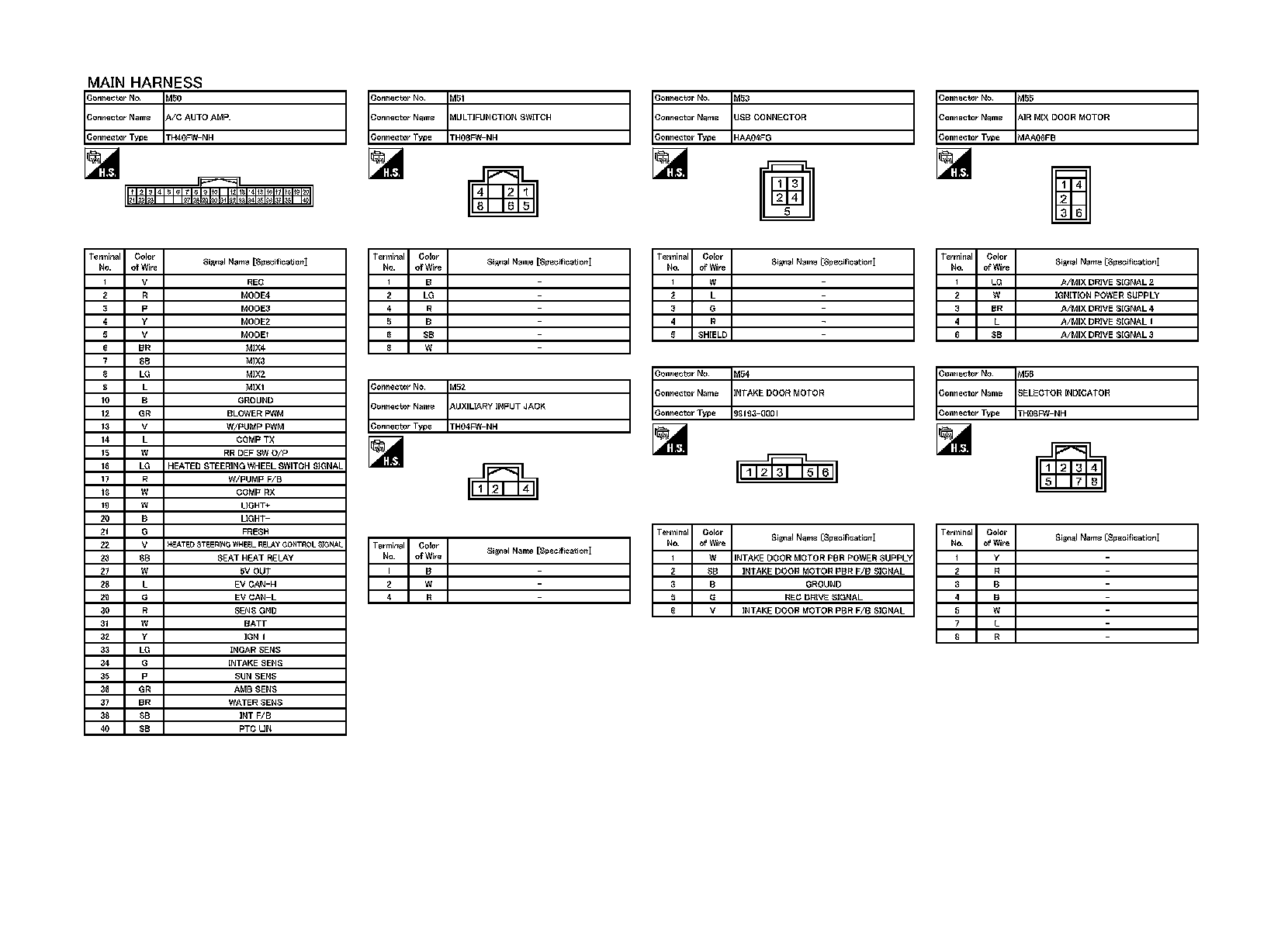

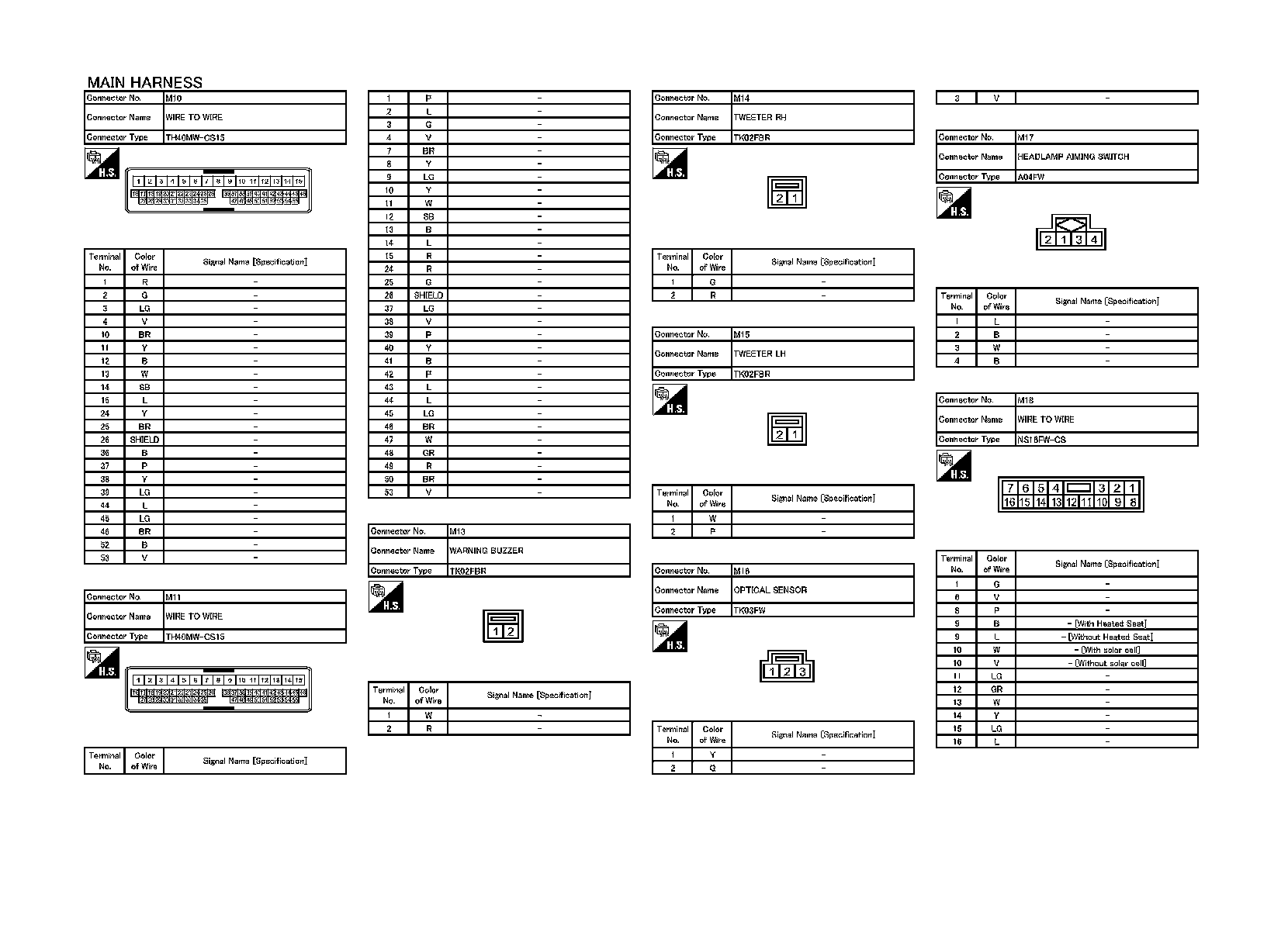

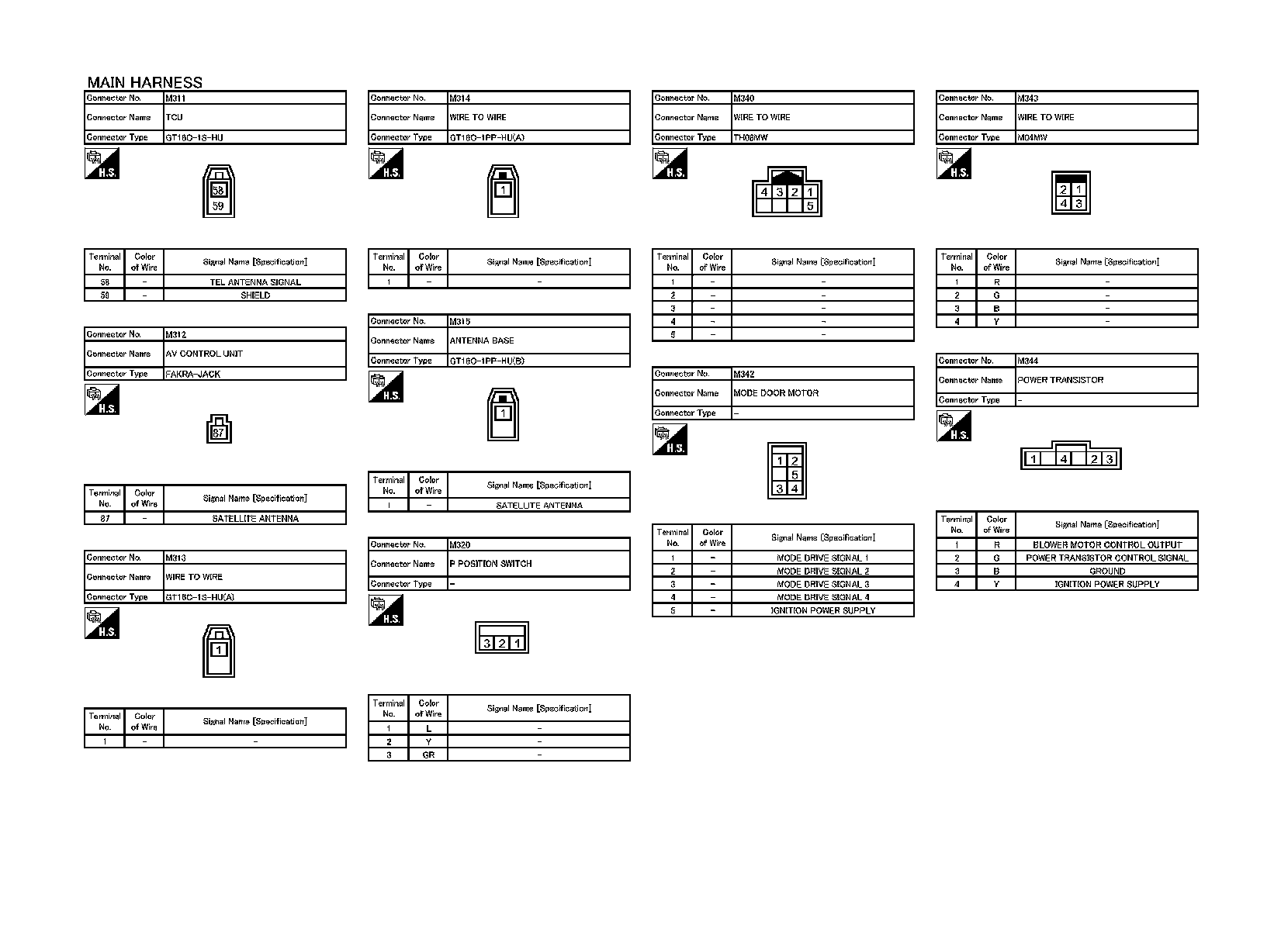

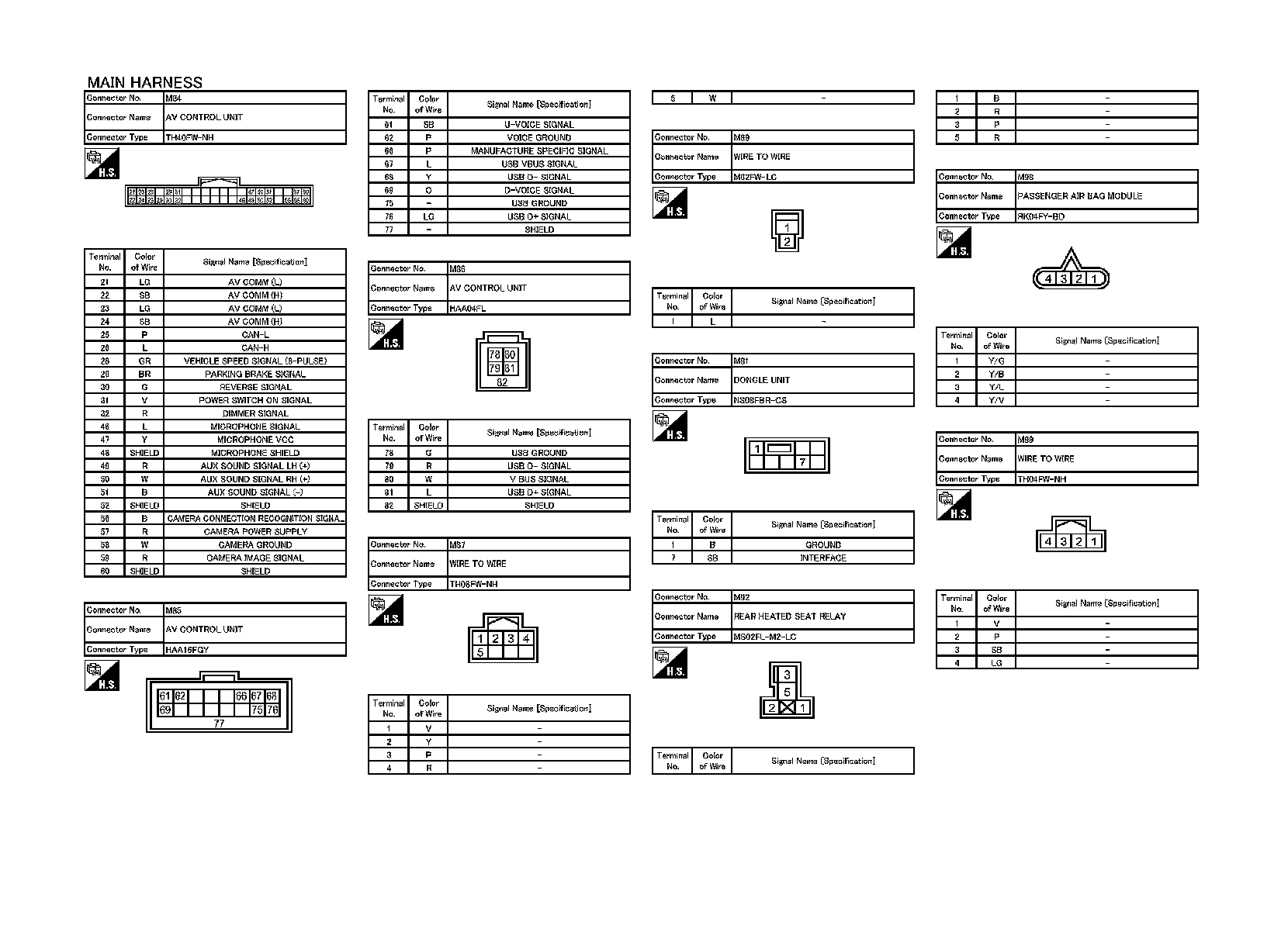

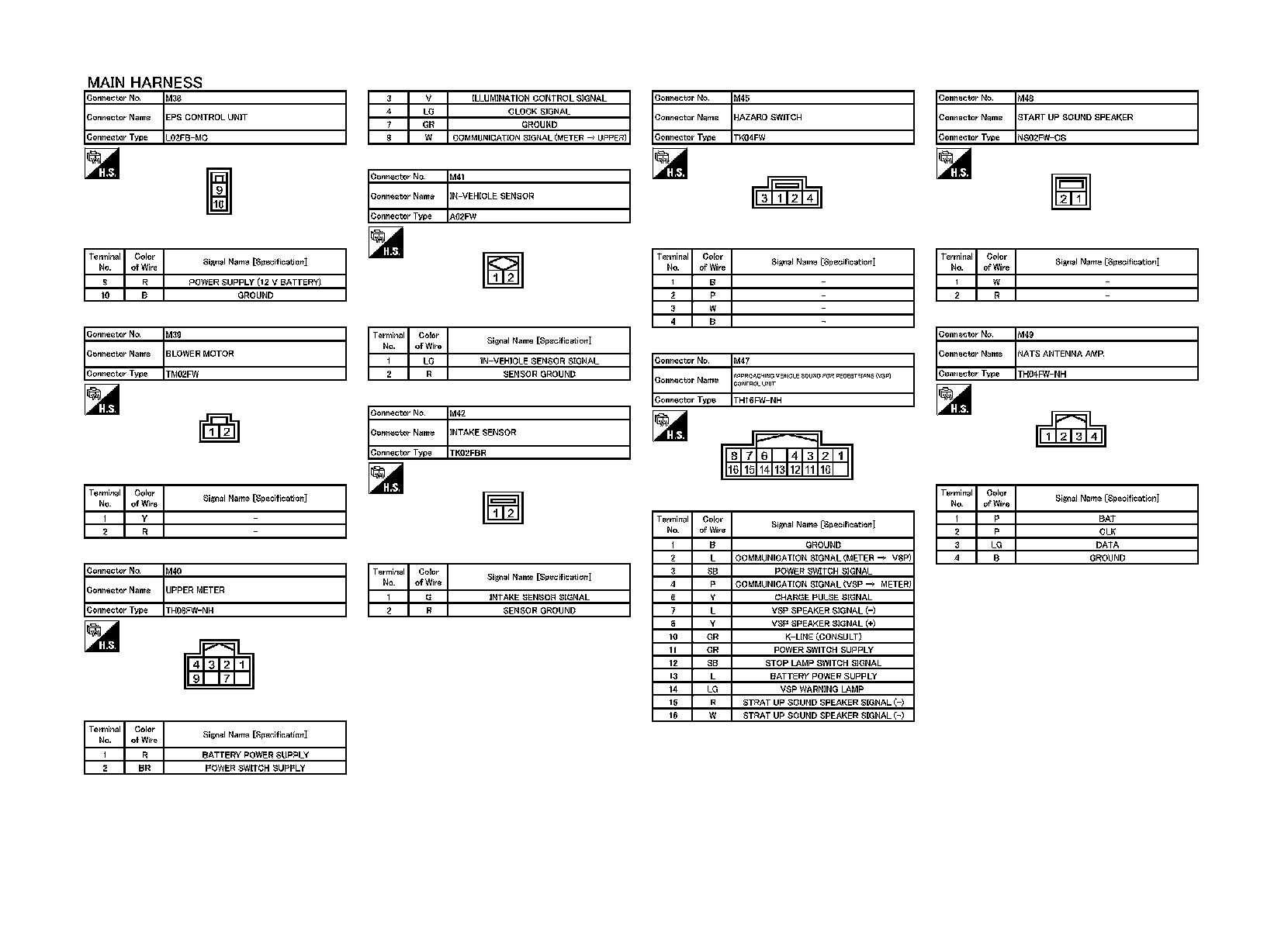

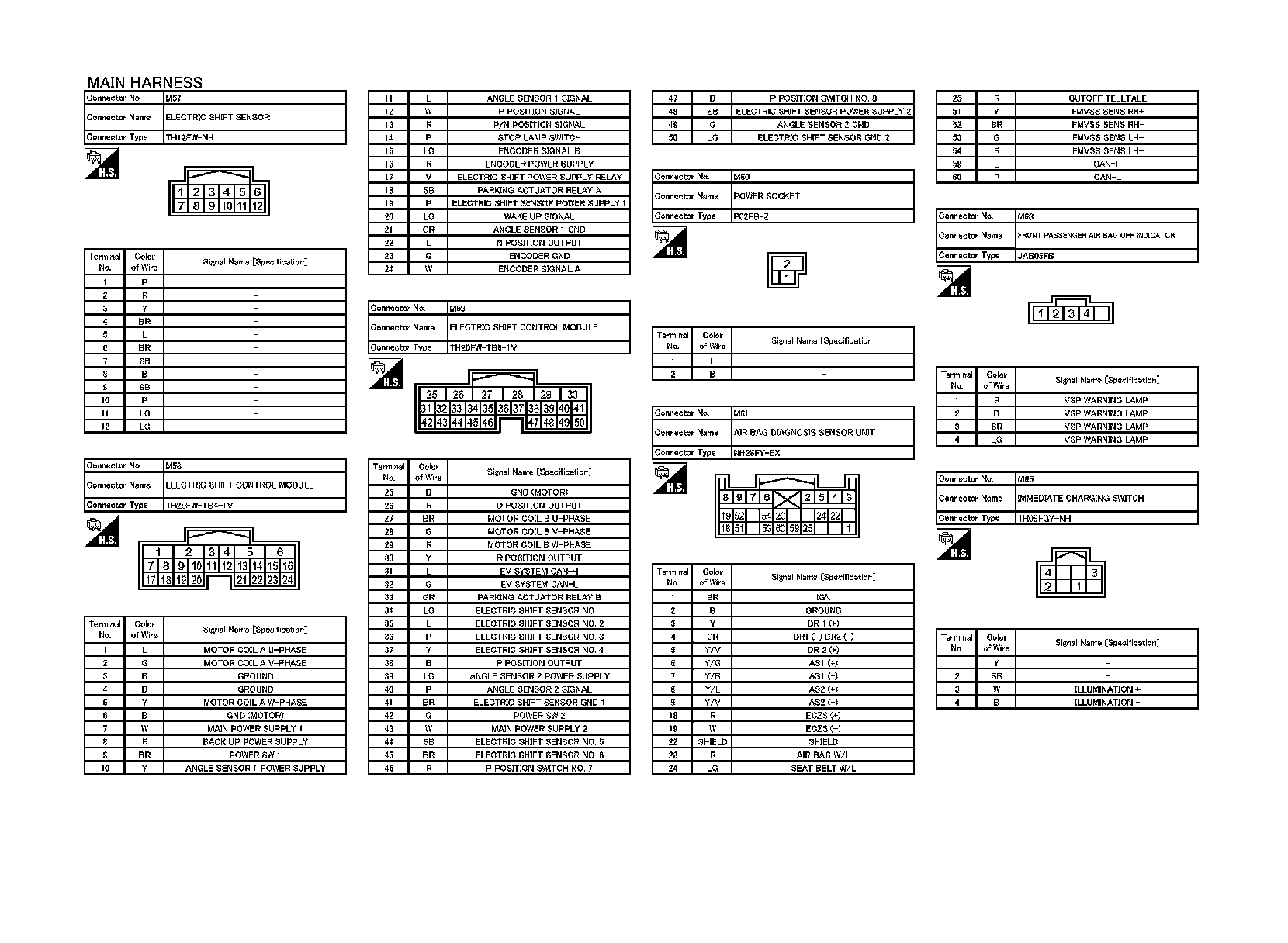

CONNECTOR INFORMATION
M Main Harness
