Nissan-Datsun
>>
2012
>>
Leaf ELE-Electric Engine
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Telematics System
Telematics System
TCU
Reference Value

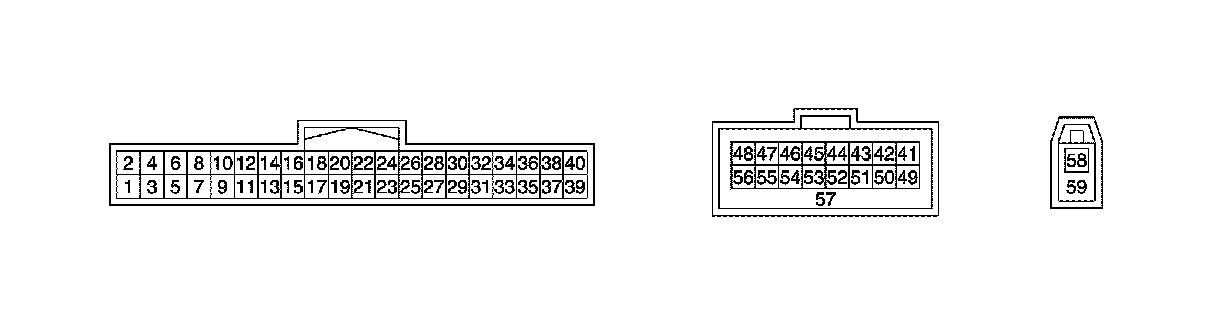

TERMINAL LAYOUT

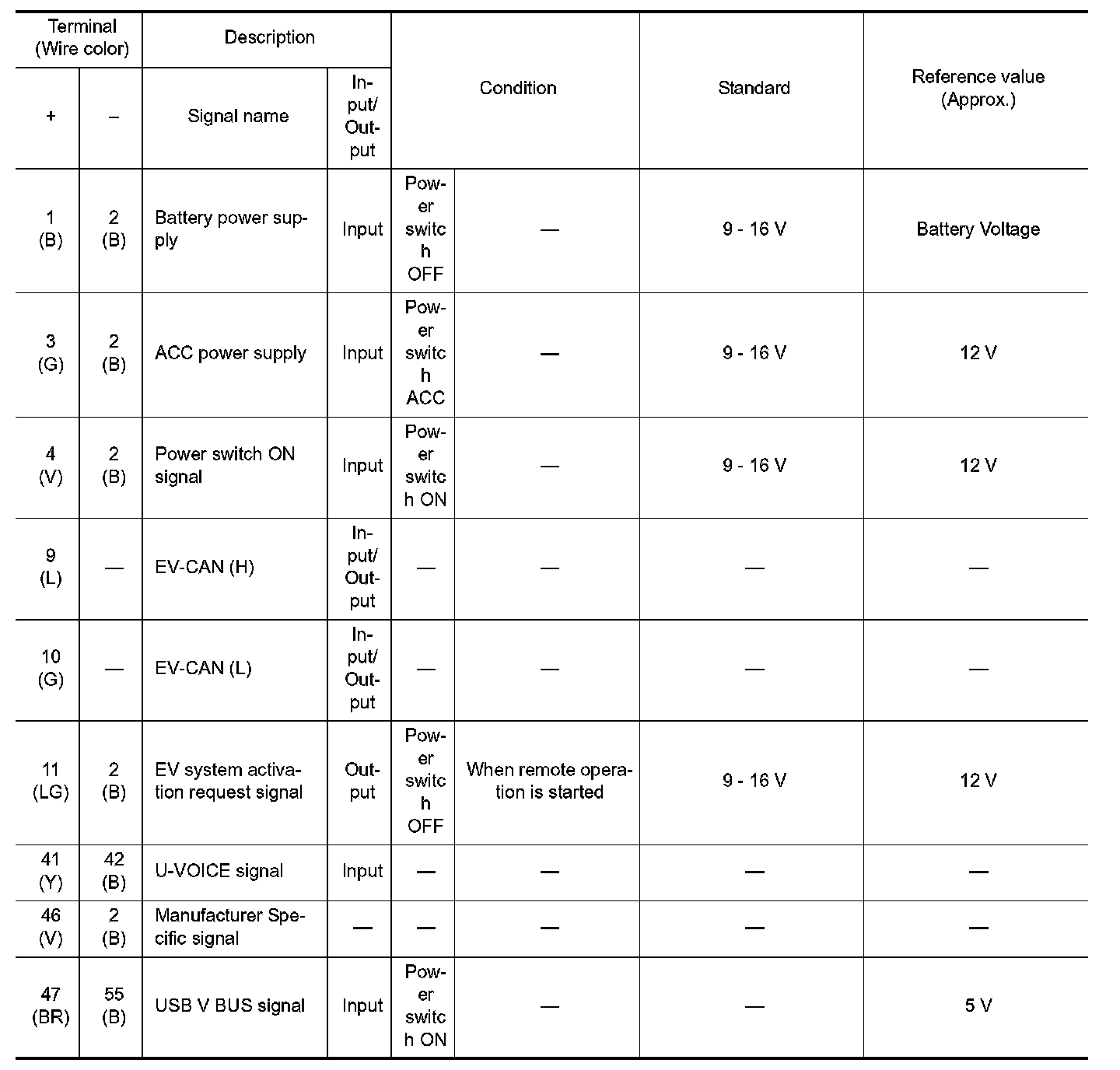

INPUT/OUTPUT SIGNAL STANDARD
