Alarm Horn: Service and Repair

INTELLIGENT KEY WARNING BUZZER

Removal and Installation


REMOVAL

1.Remove the front bumper fascia. Refer to "Removal and Installation" Removal And Installation.

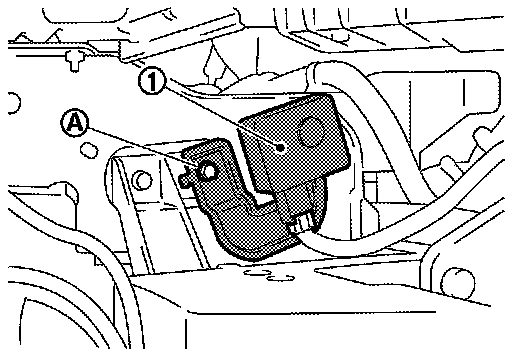

2.Remove the Intelligent Key warning buzzer mounting bolt (A), and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.
