Electric Controlled Coupling
>>

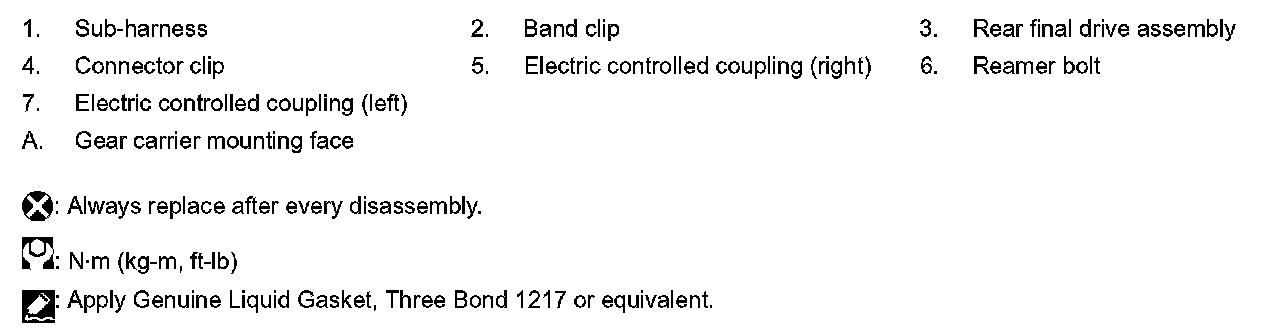

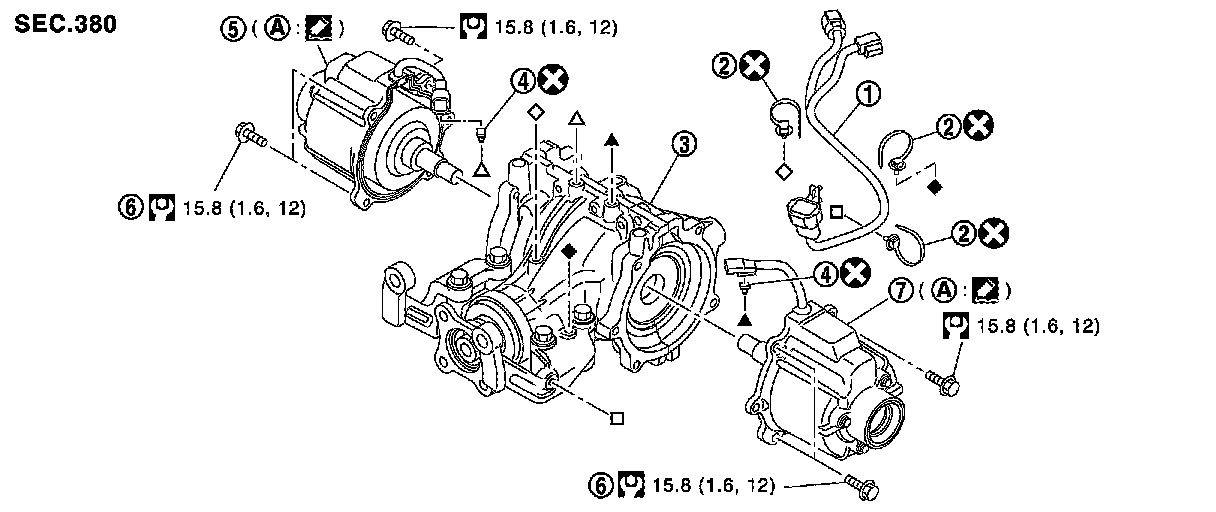

Exploded View
Exploded View
ELECTRIC CONTROLLED COUPLING
Exploded View
ELECTRIC CONTROLLED COUPLING
Exploded View
