Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Juke AWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Shift Interlock
>>
Shift Interlock Cable
>>
Service and Repair
>>

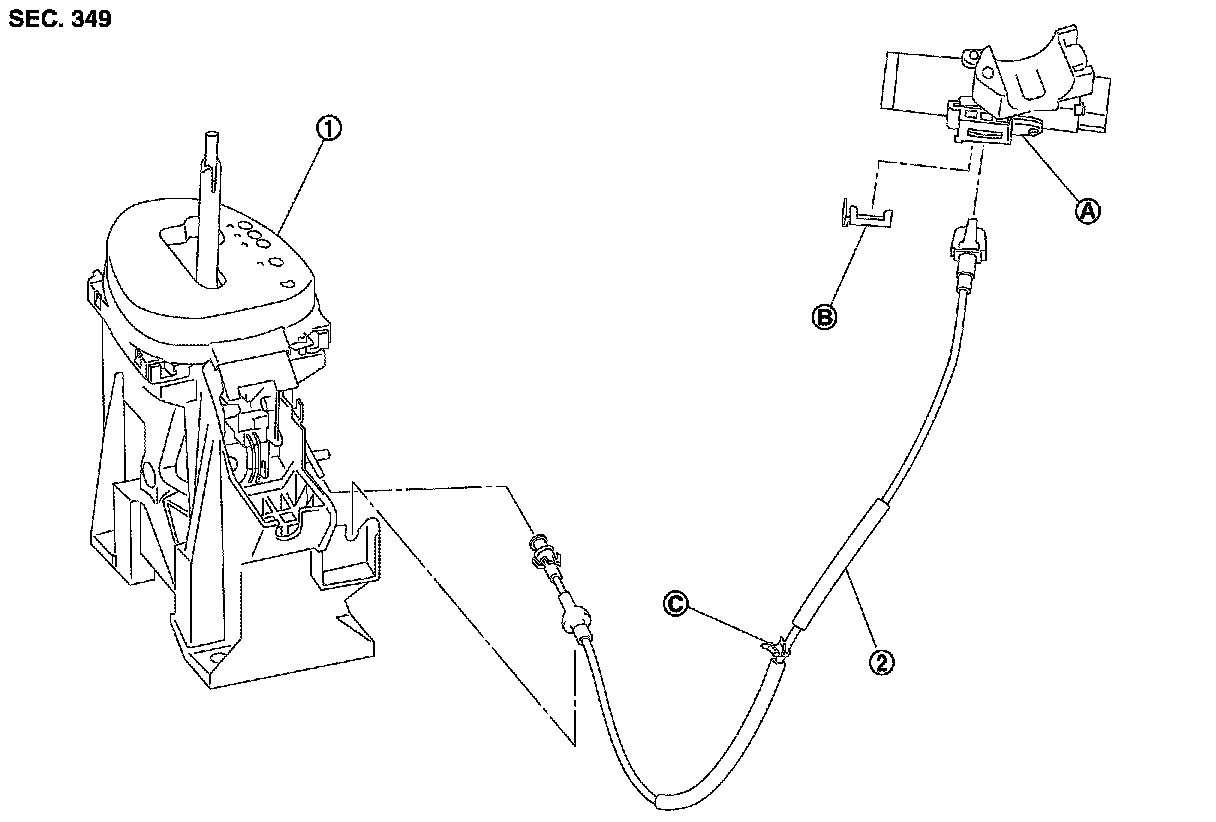

Exploded View
Exploded View
KEY INTERLOCK CABLE
Exploded View
