Home
>>
Nissan-Datsun
>>
2012
>>
Juke AWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Control Arm
>>
Service and Repair
>>
Rear Suspension
>>
Lower Link
>>

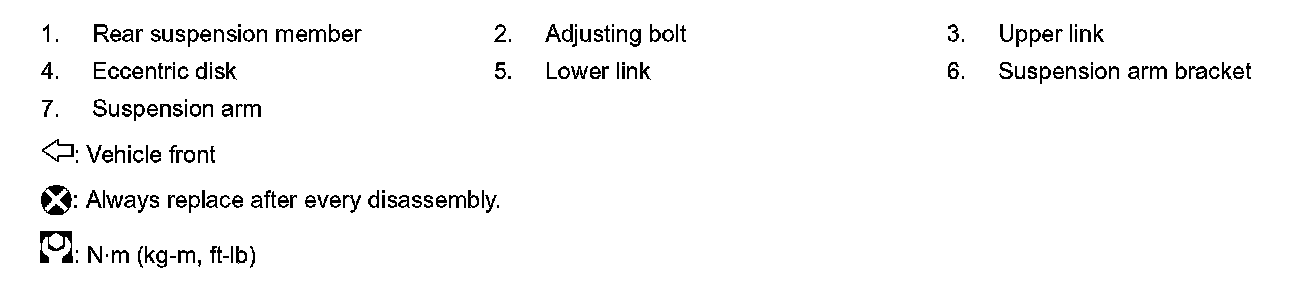

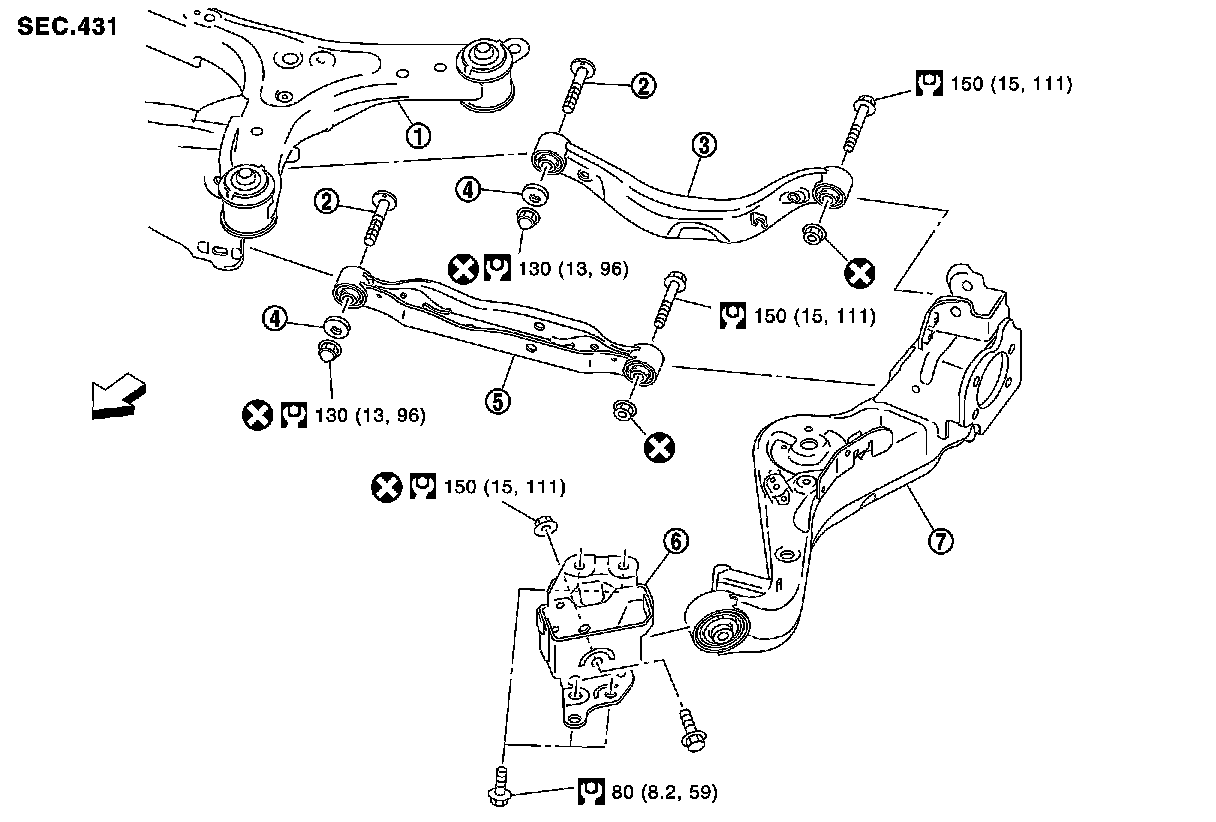

Exploded View
Exploded View
LOWER LINK
Exploded View
