CVT RE0F10B
>>
Oil Pressure Control System
>>
System Diagram
System Diagram
SYSTEM

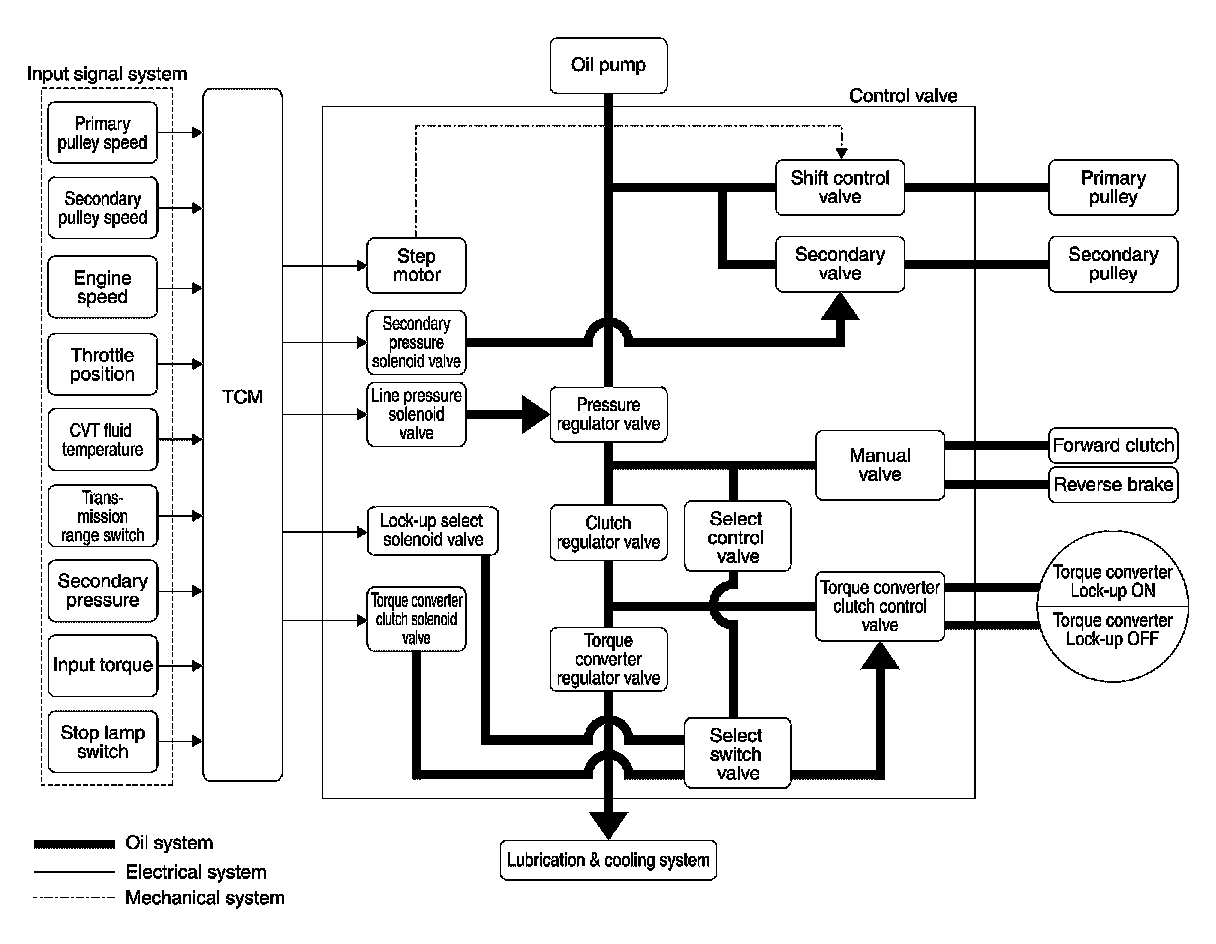

OIL PRESSURE CONTROL SYSTEM : System Diagram
