CVT RE0F10B
>>
Integrated Control System
>>
System Diagram
System Diagram
SYSTEM

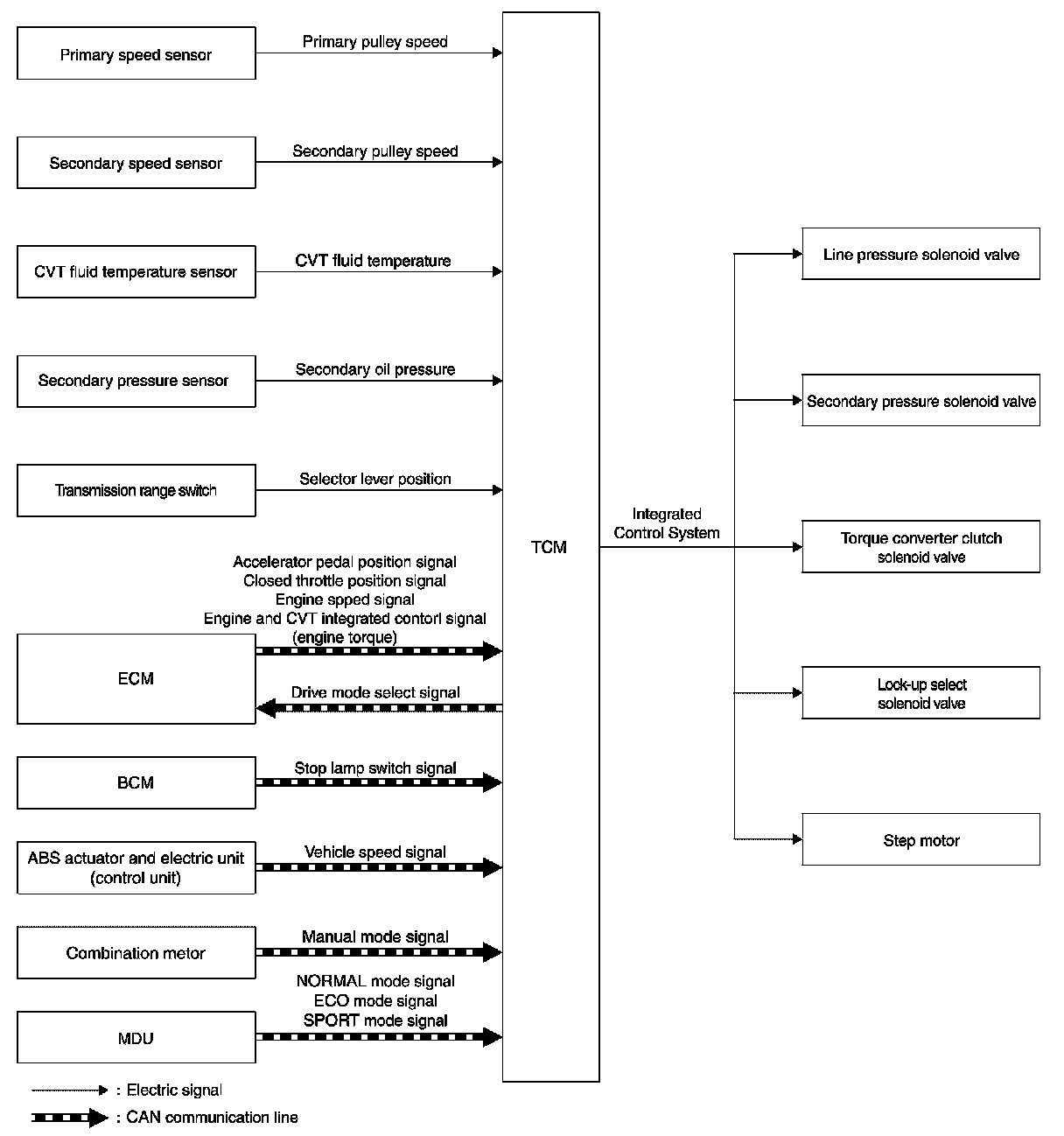

INTEGRATED CONTROL SYSTEM : System Diagram
