CVT RE0F10B
>>
Control System
>>
System Diagram
System Diagram
SYSTEM

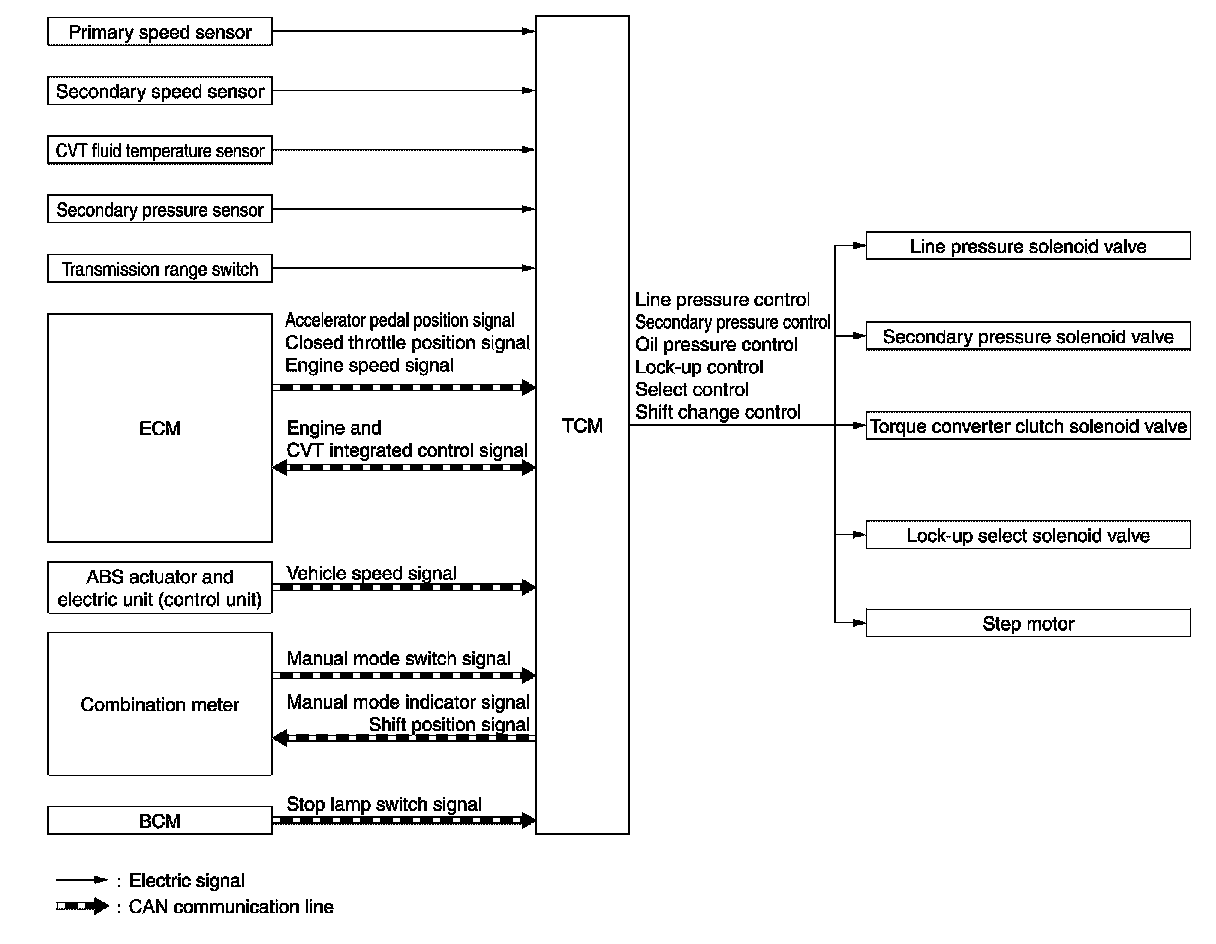

CONTROL SYSTEM : System Diagram
