Nissan-Datsun
>>
2012
>>
Juke AWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Description and Operation
>>
System Diagram
System Diagram
SYSTEM

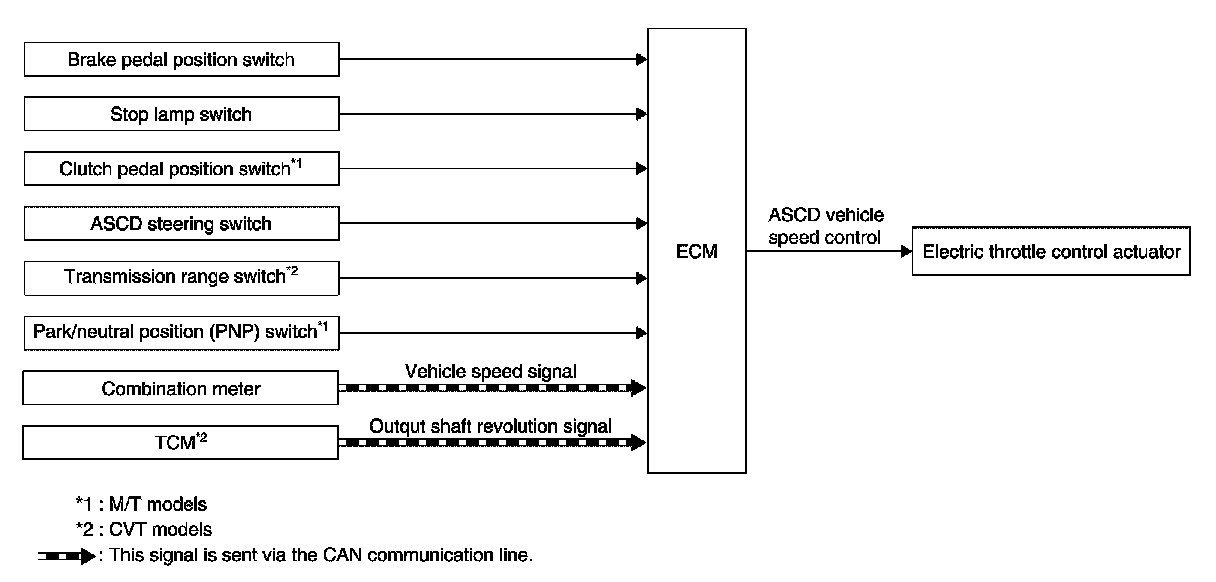

AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Diagram
