Exploded View
>>
Without Intelligent Key System
Without Intelligent Key System

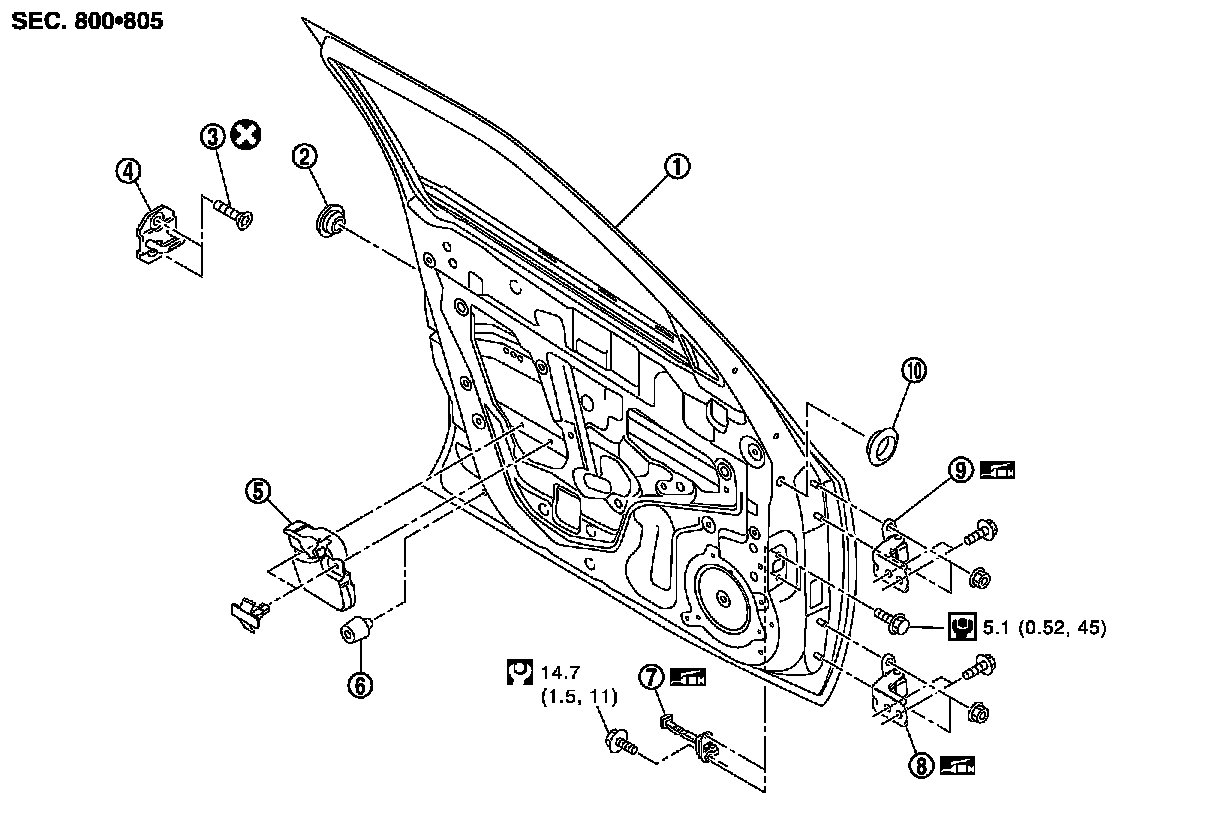

FRONT DOOR
Exploded View
