BCM




DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

WIPER : CONSULT Function (BCM - WIPER)

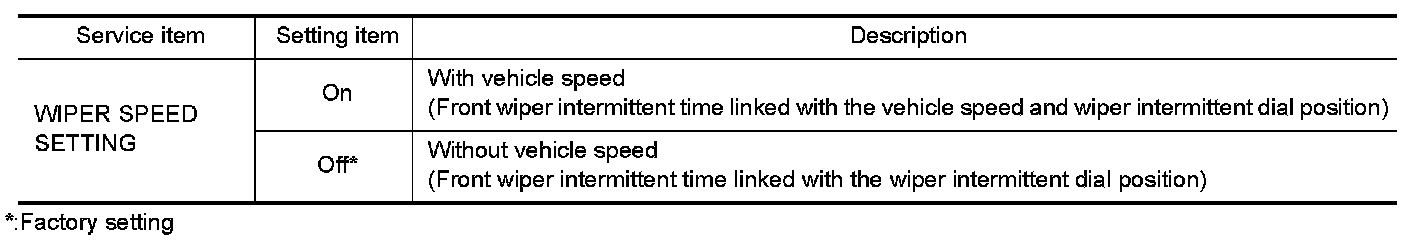

WORK SUPPORT







DATA MONITOR

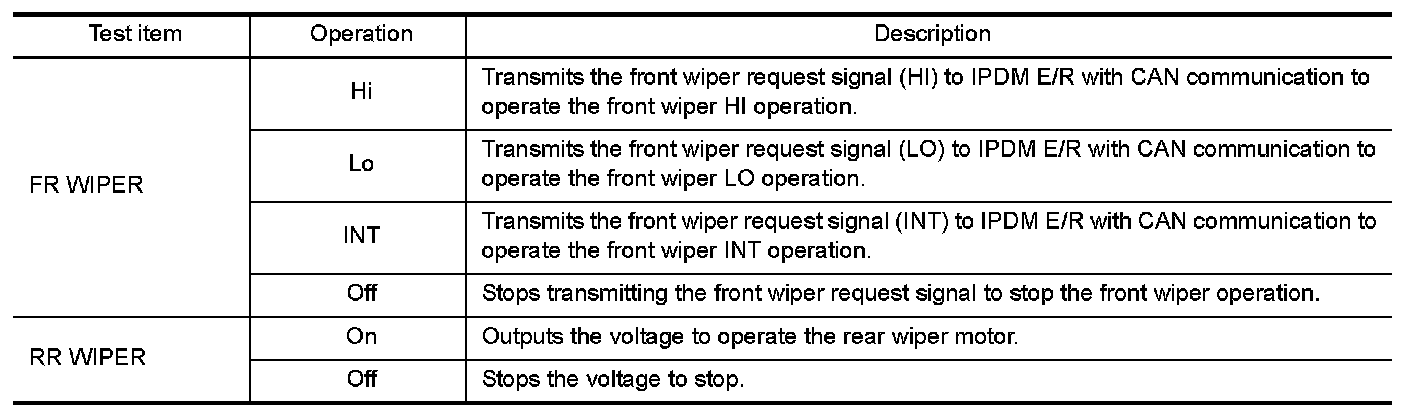

ACTIVE TEST
