IPDM E/R (Intelligent Power Distribution Module Engine Room) With Intelligent Key
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WITH INTELLIGENT KEY : Reference Value

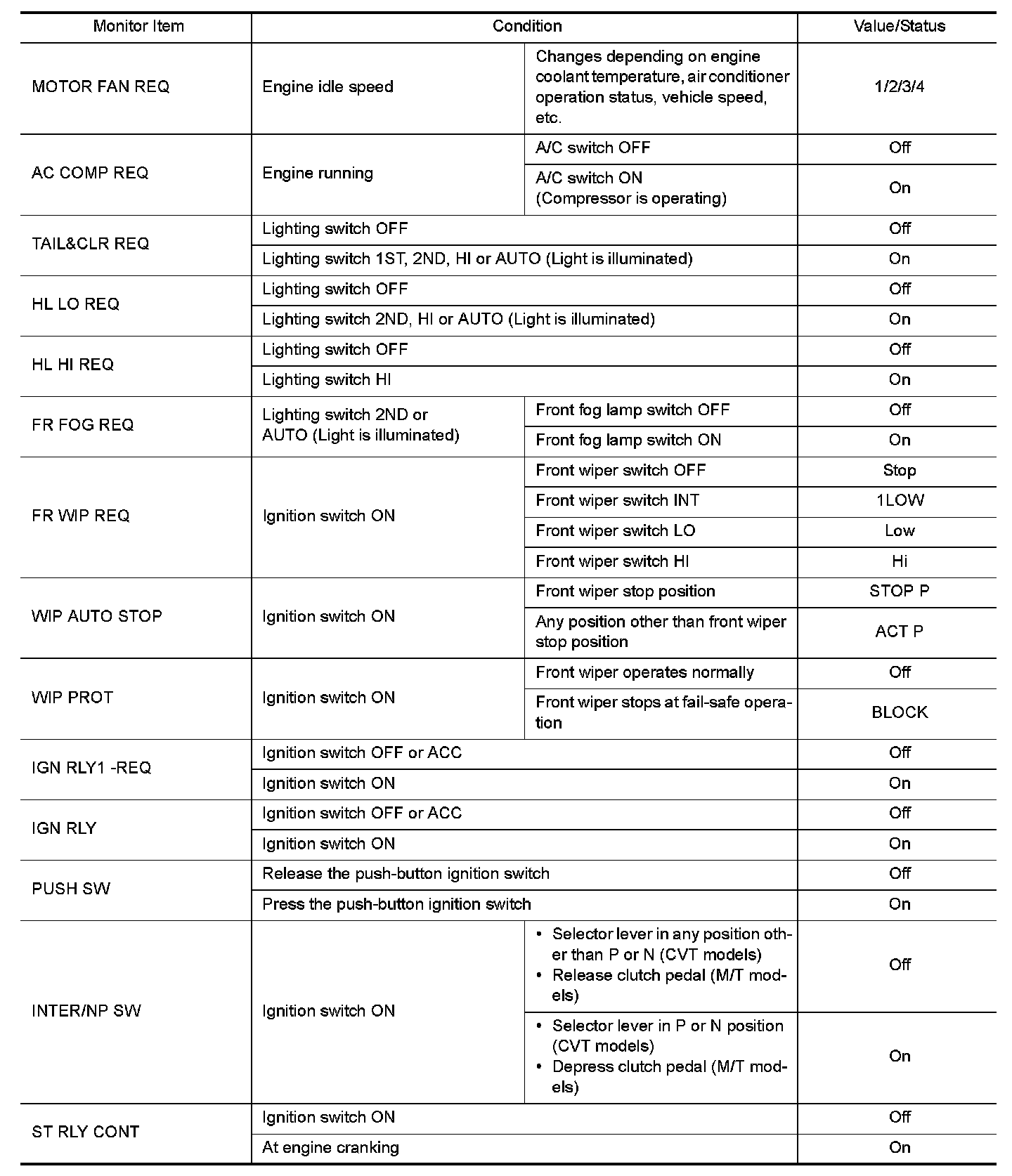

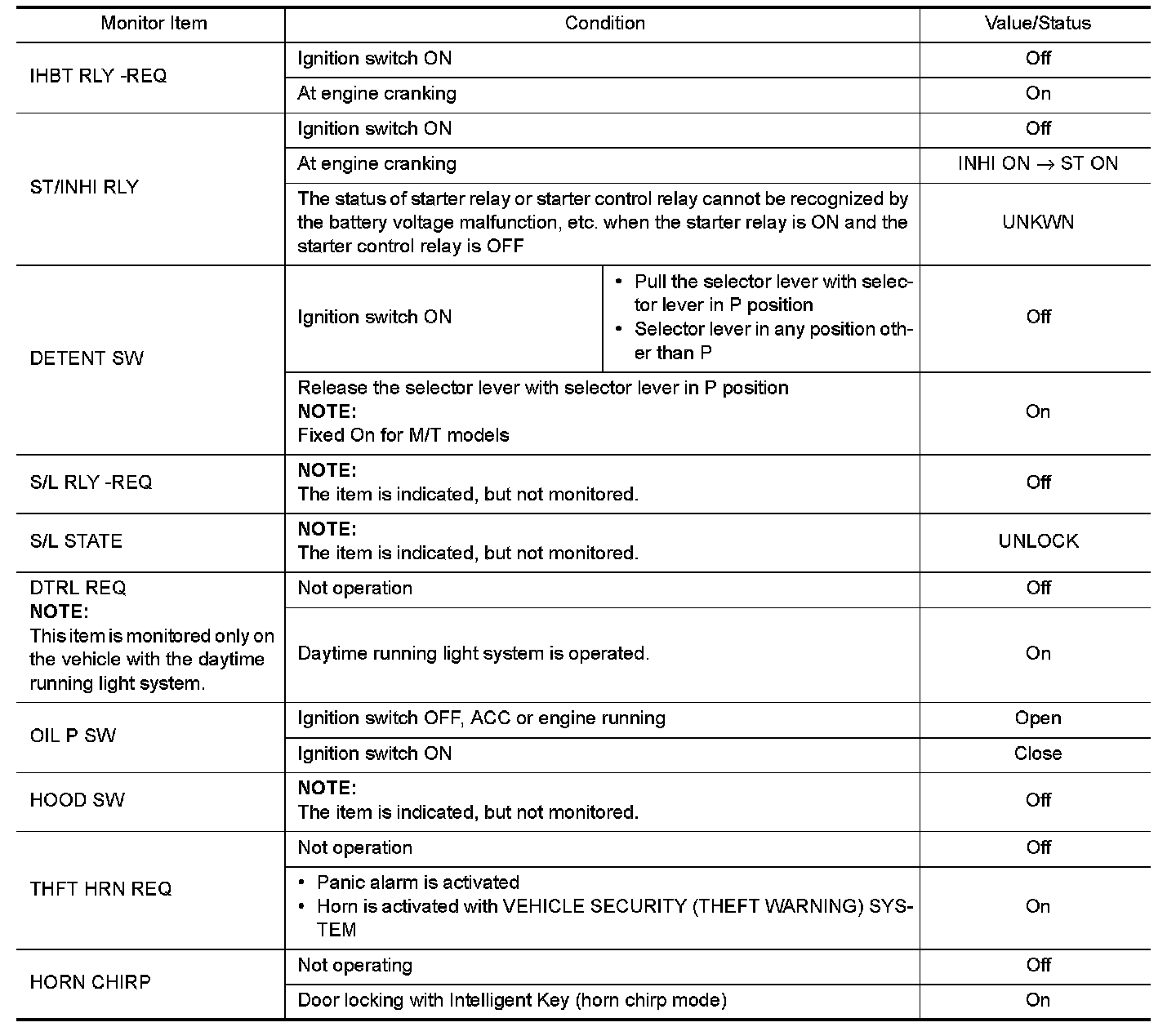

VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT

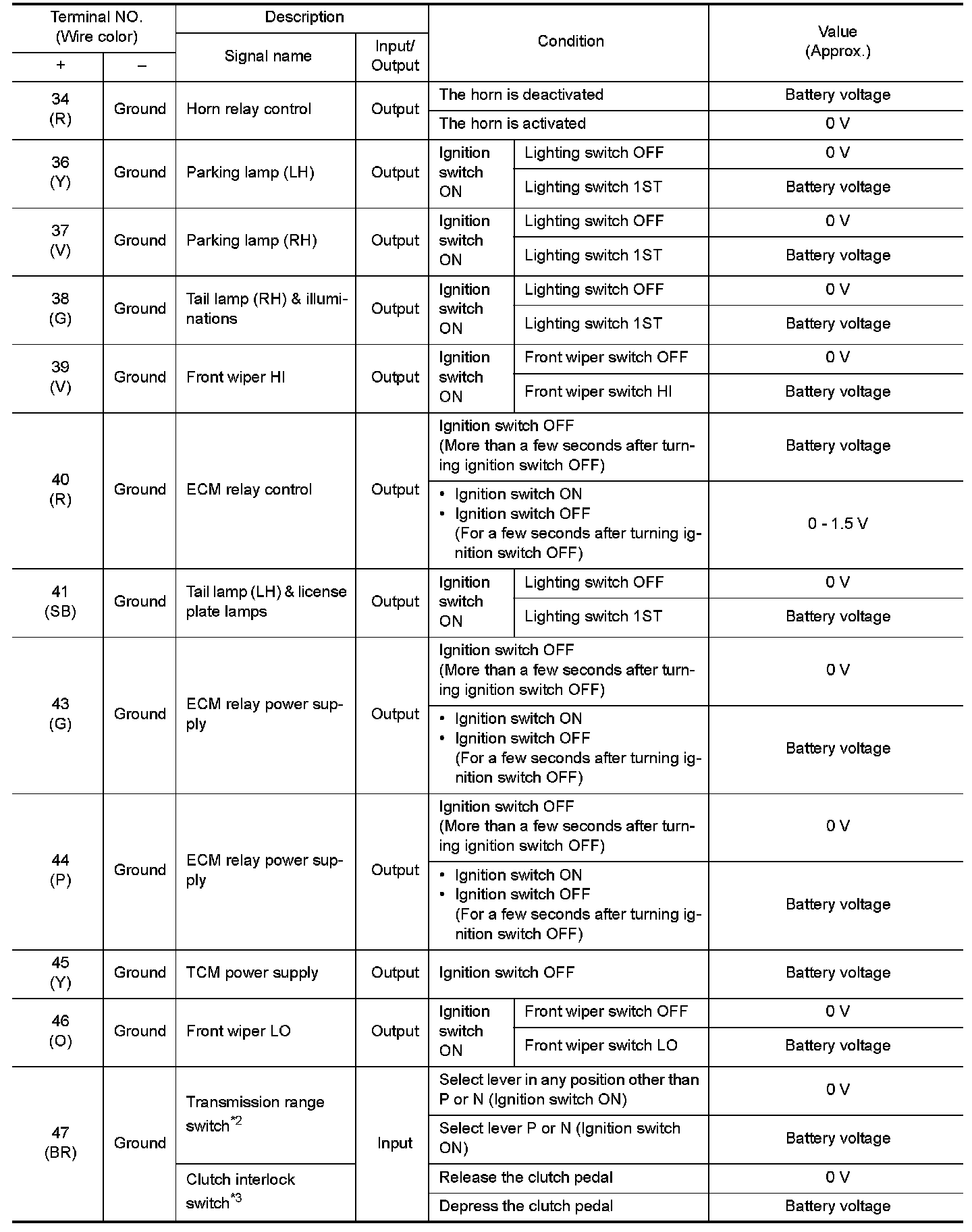

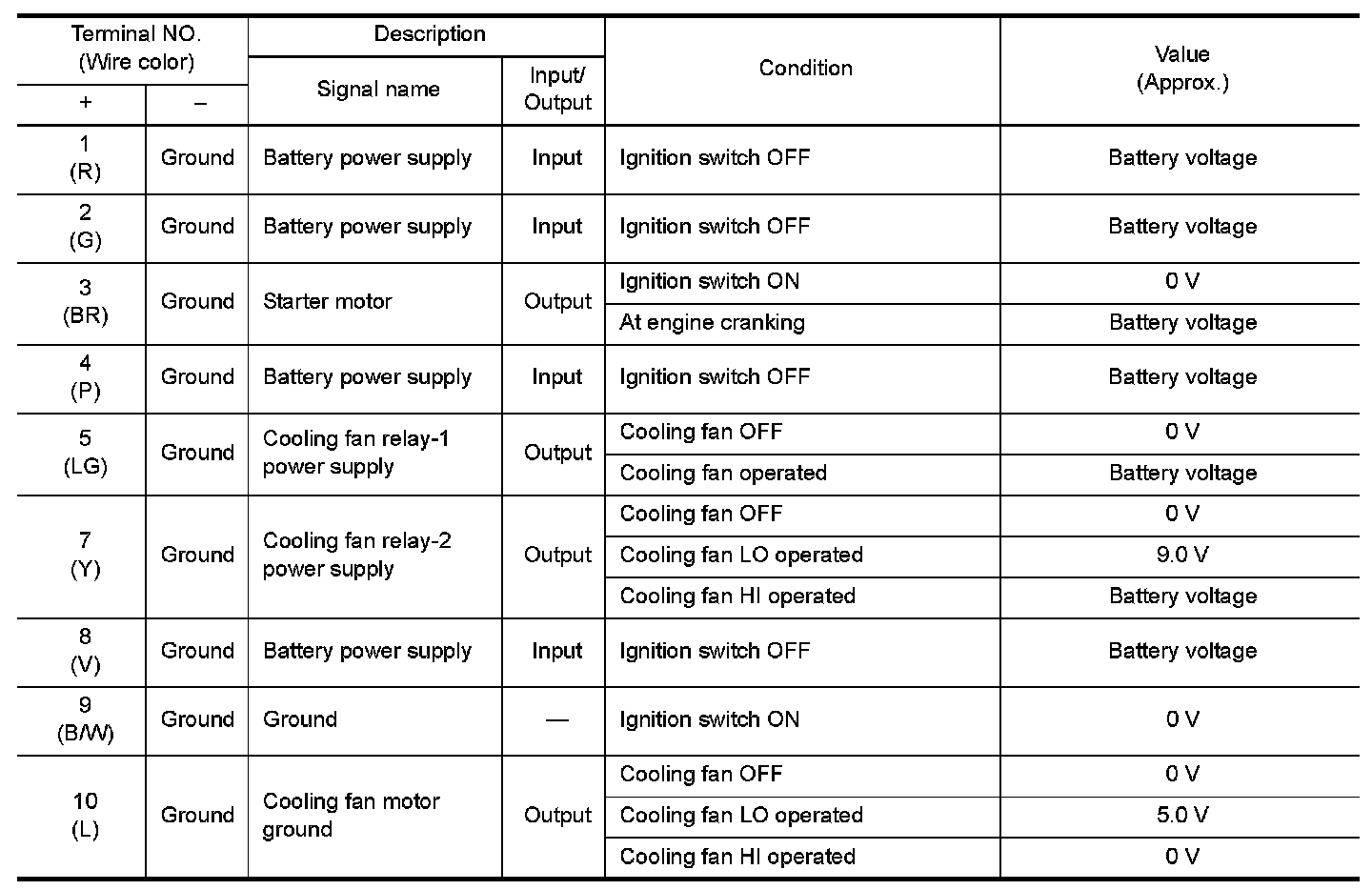

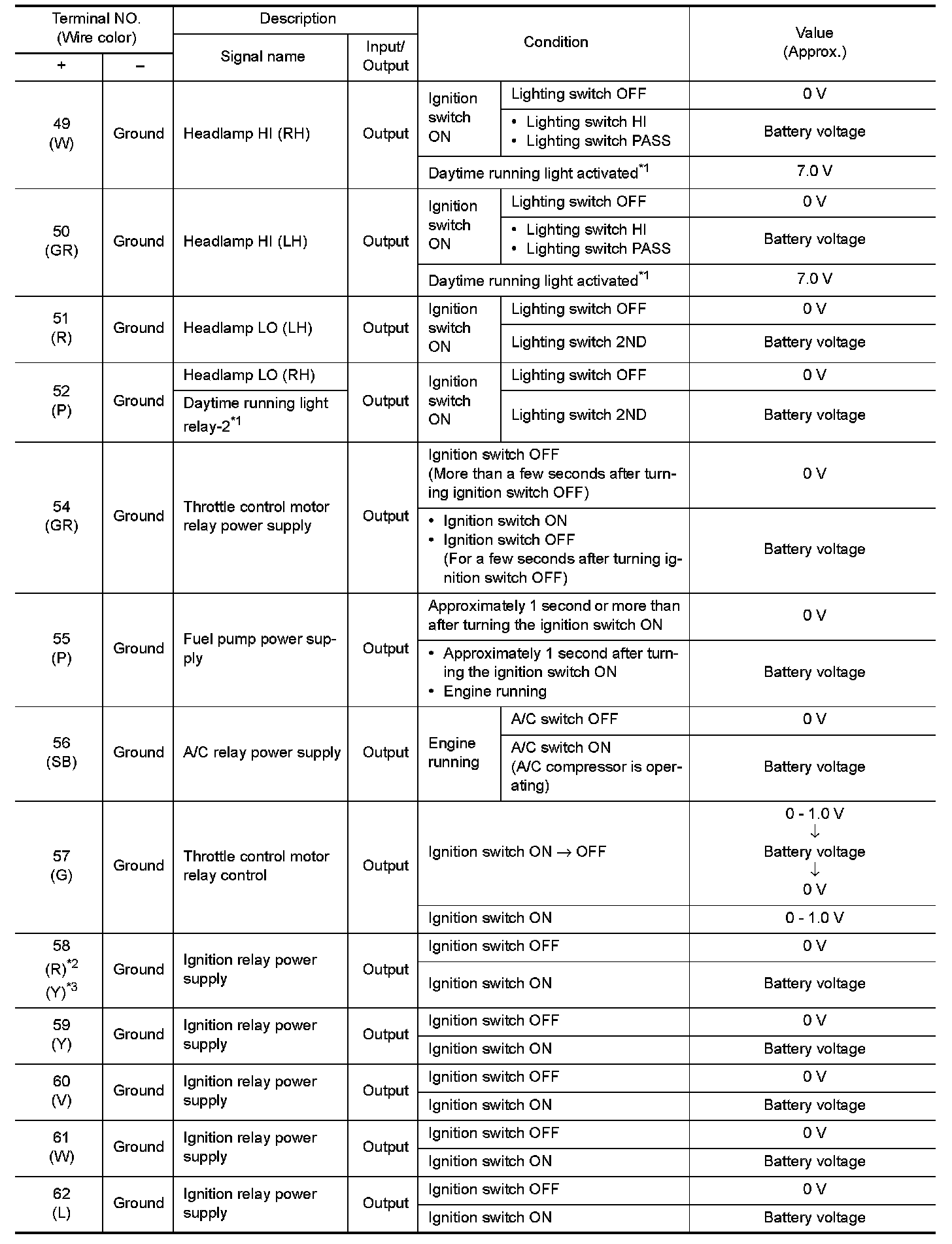

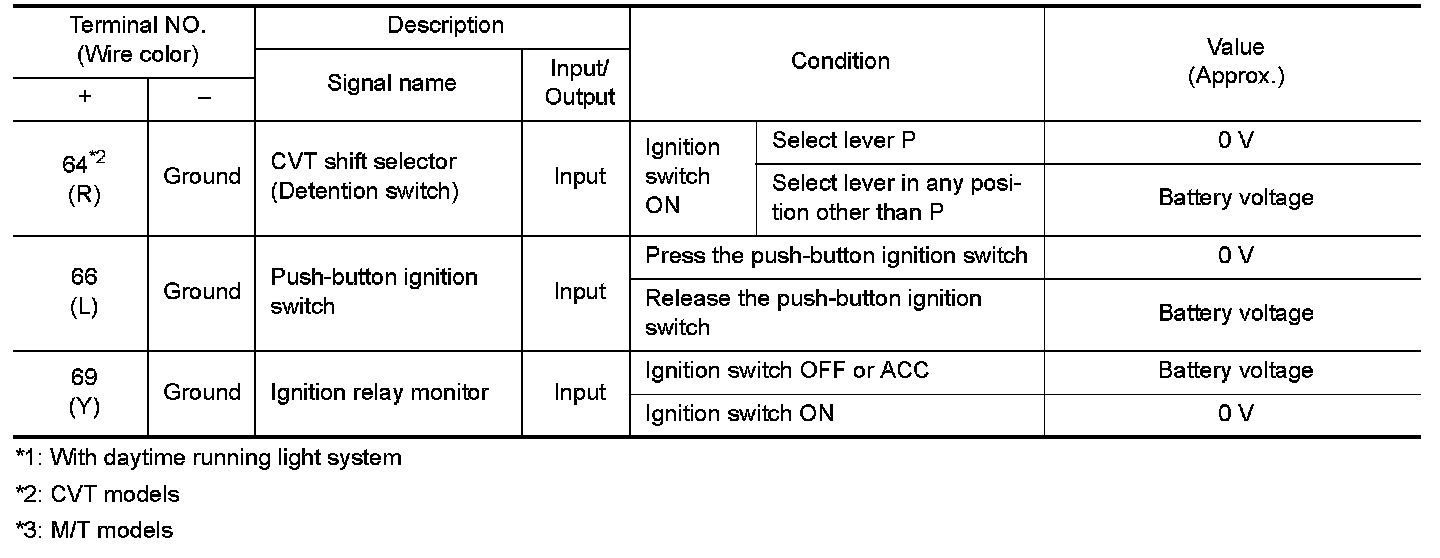

PHYSICAL VALUES
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WITH INTELLIGENT KEY : Reference Value
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
