Nissan-Datsun
>>
2012
>>
Cube L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Description and Operation
>>
Hydraulic Control System
>>
System Diagram
System Diagram

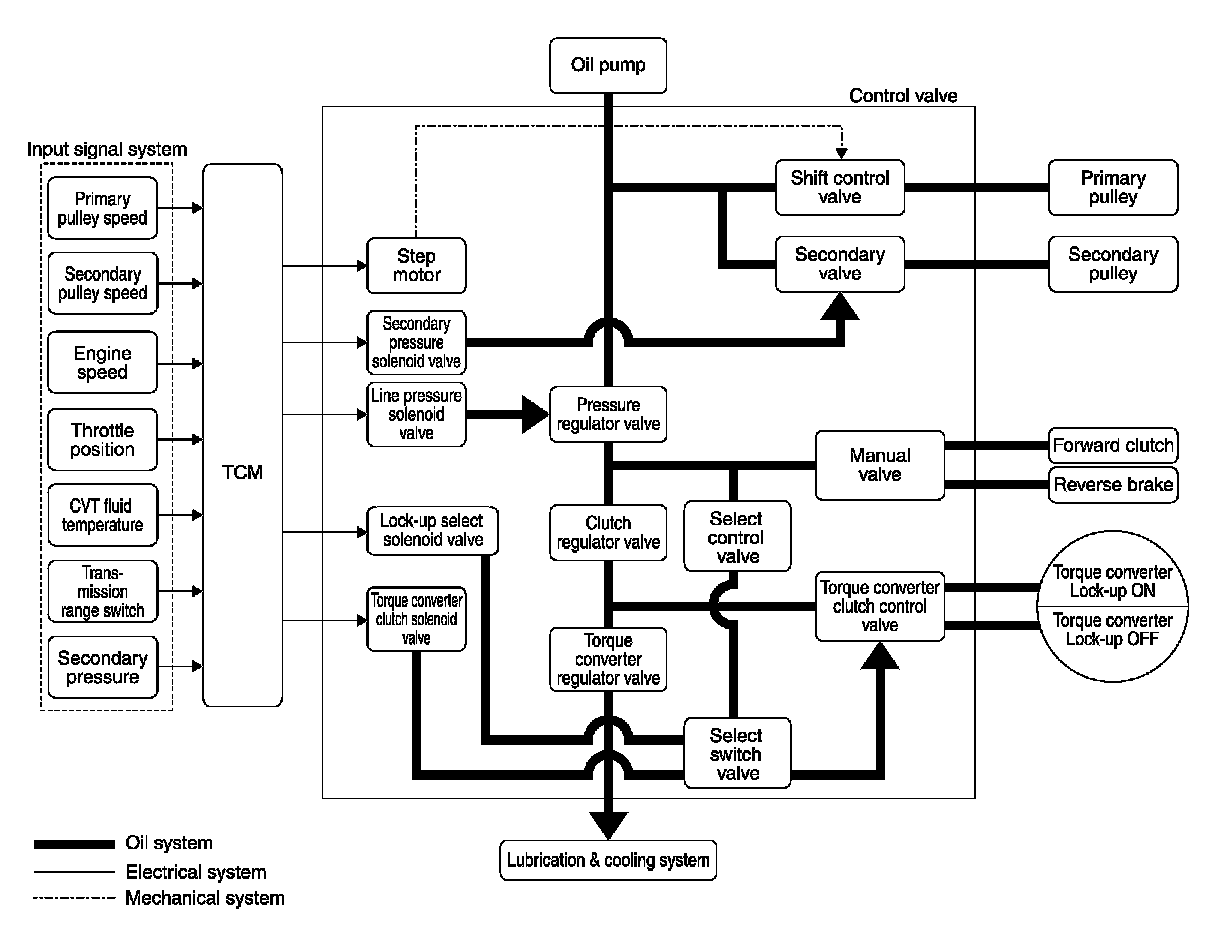

HYDRAULIC CONTROL SYSTEM
System Diagram
