Exploded View

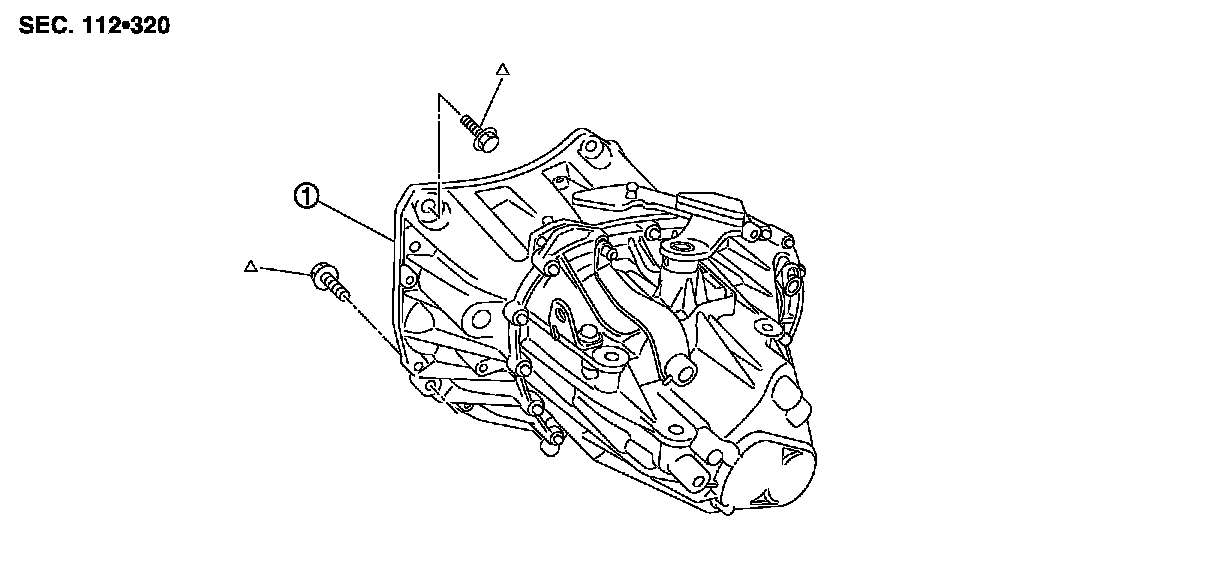

TRANSAXLE ASSEMBLY

Exploded View















TRANSAXLE ASSEMBLY

Exploded View


CASE AND HOUSING

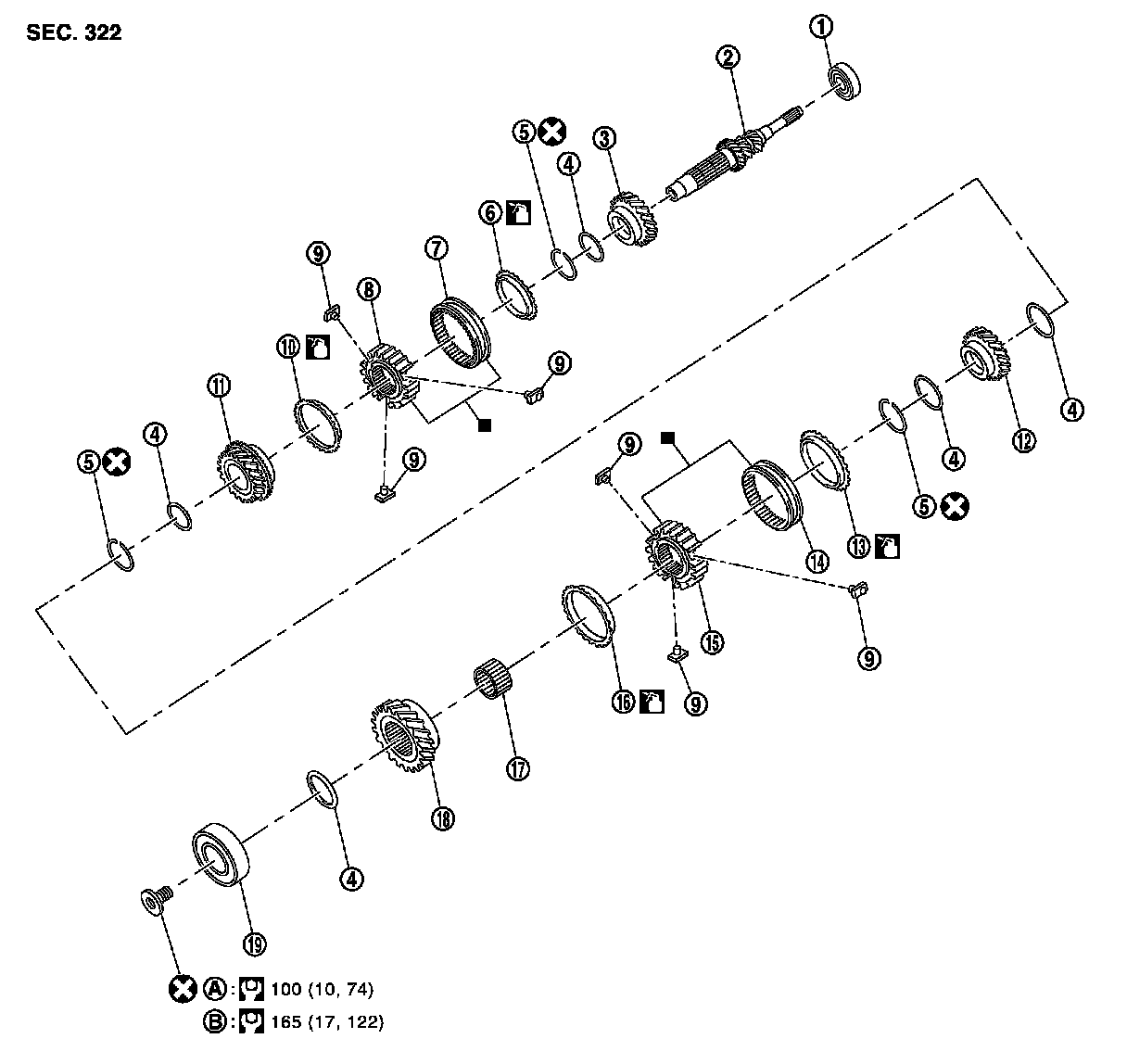

SHAFT AND GEAR
































SHIFT FORK AND FORK ROD












FINAL DRIVE
