Cube L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Cylinder Head Assembly
>>
Service and Repair
>>
Overhaul
>>

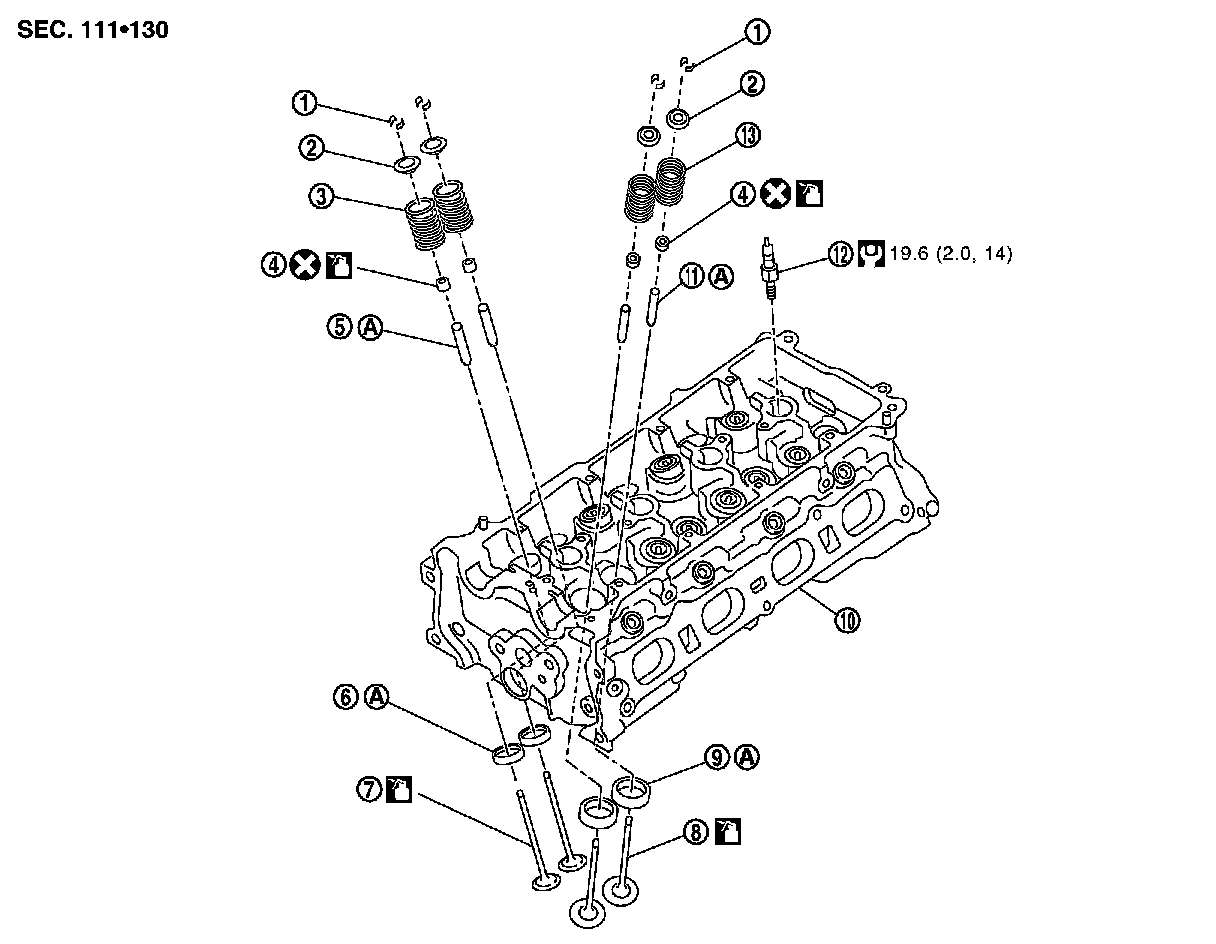

Exploded View
Exploded View

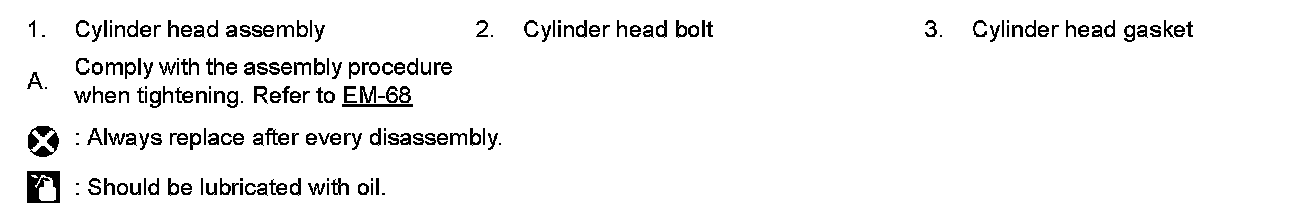

CYLINDER HEAD
Exploded View
REMOVAL
DISASSEMBLY
