Door Mirror Assembly
>>
Exploded View
Exploded View
OUTSIDE MIRROR

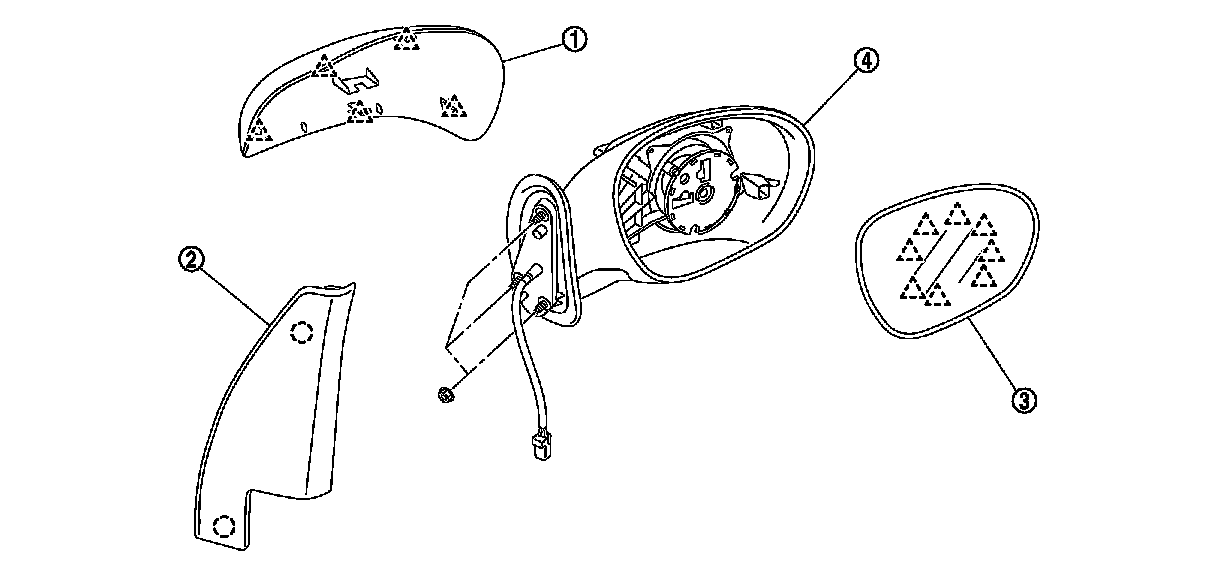

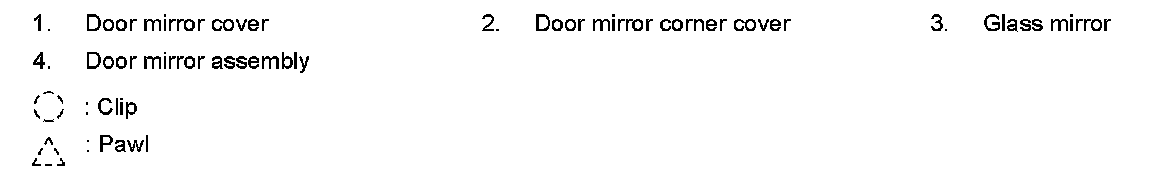

DOOR MIRROR ASSEMBLY : Exploded View
