Without Intelligent Key System

BCM (BODY CONTROL MODULE)

Reference Value

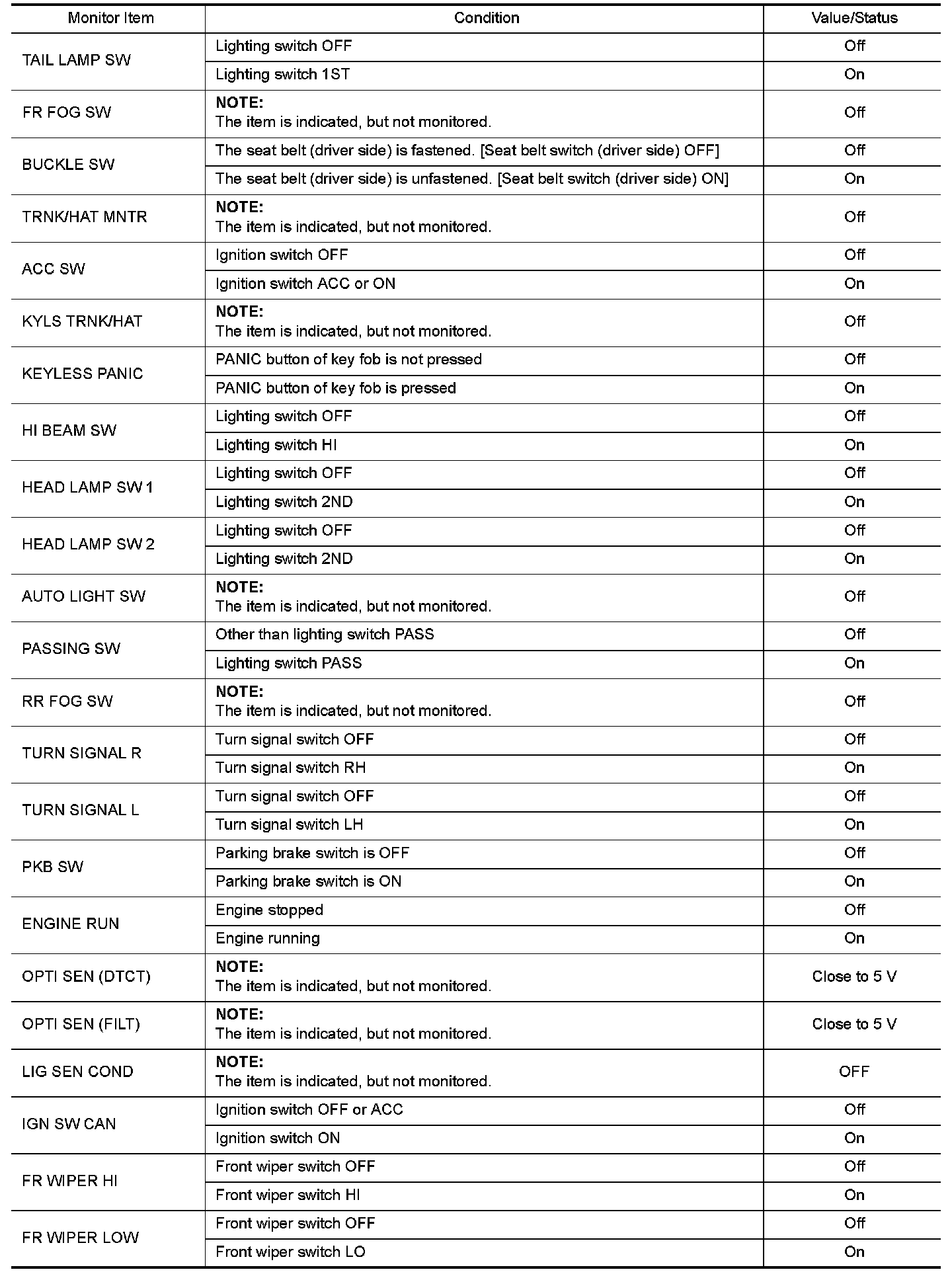

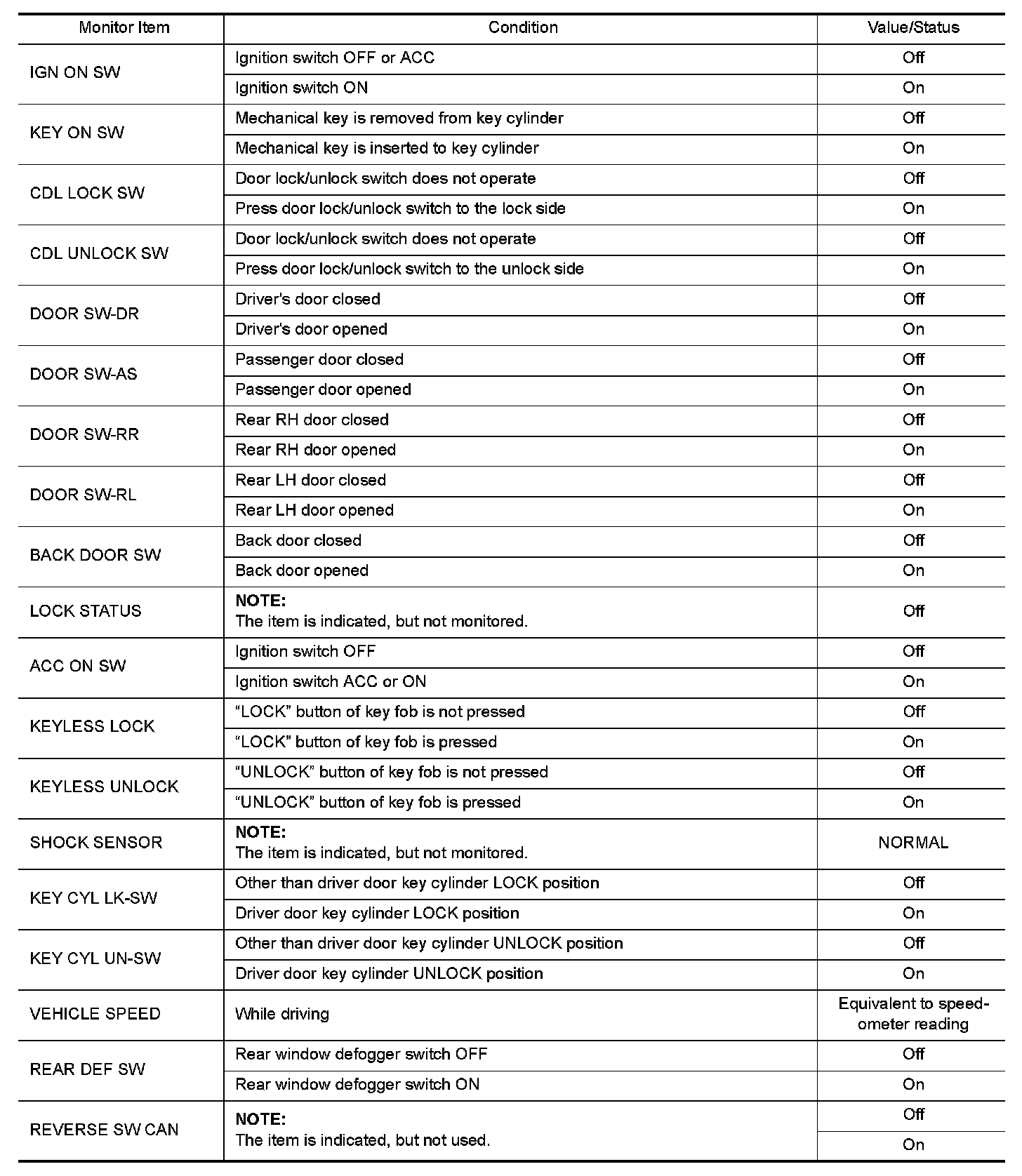

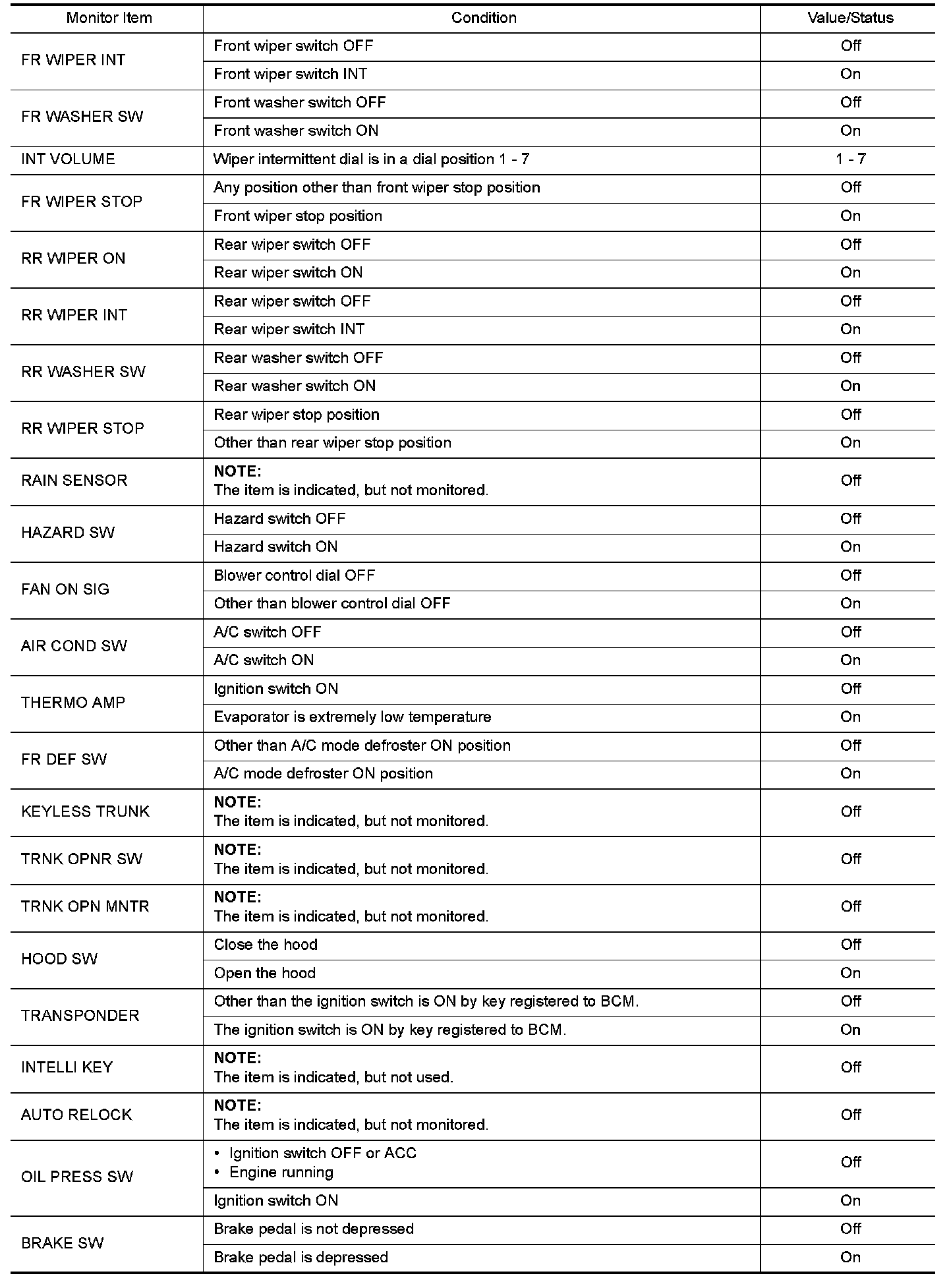

VALUES ON THE DIAGNOSIS TOOL

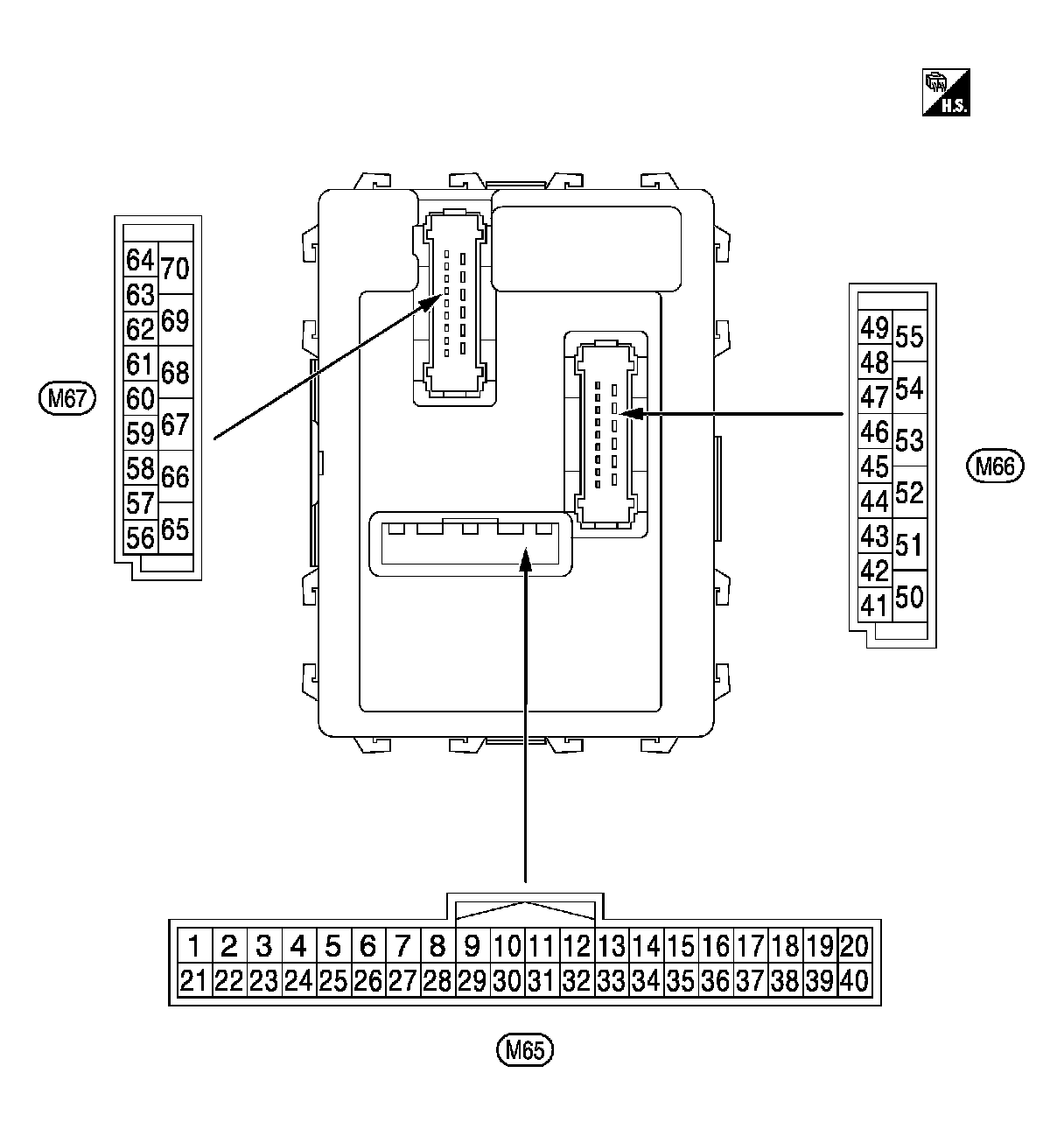

TERMINAL LAYOUT






NOTE:
- M65, M66: White
- M67: Black

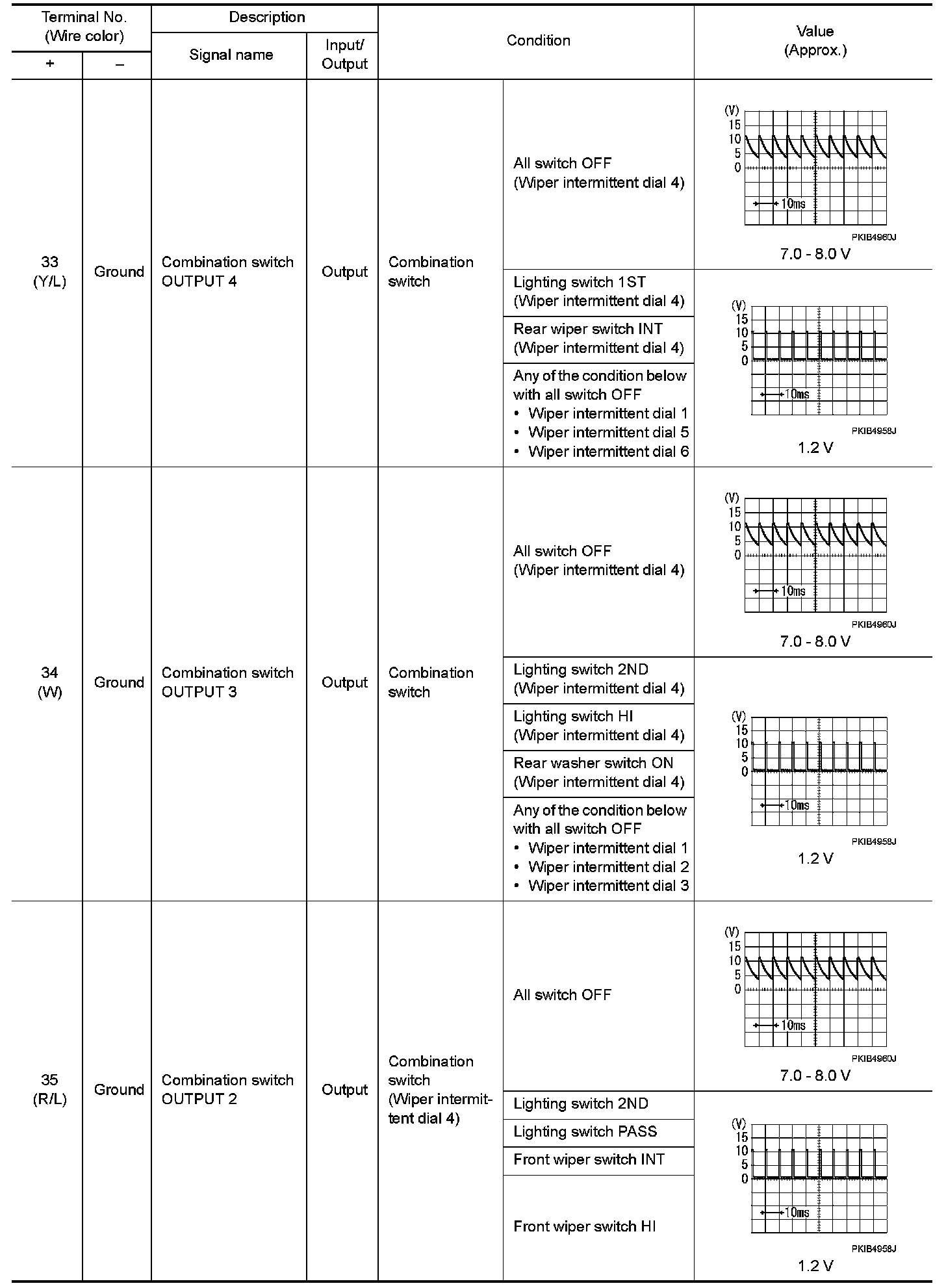

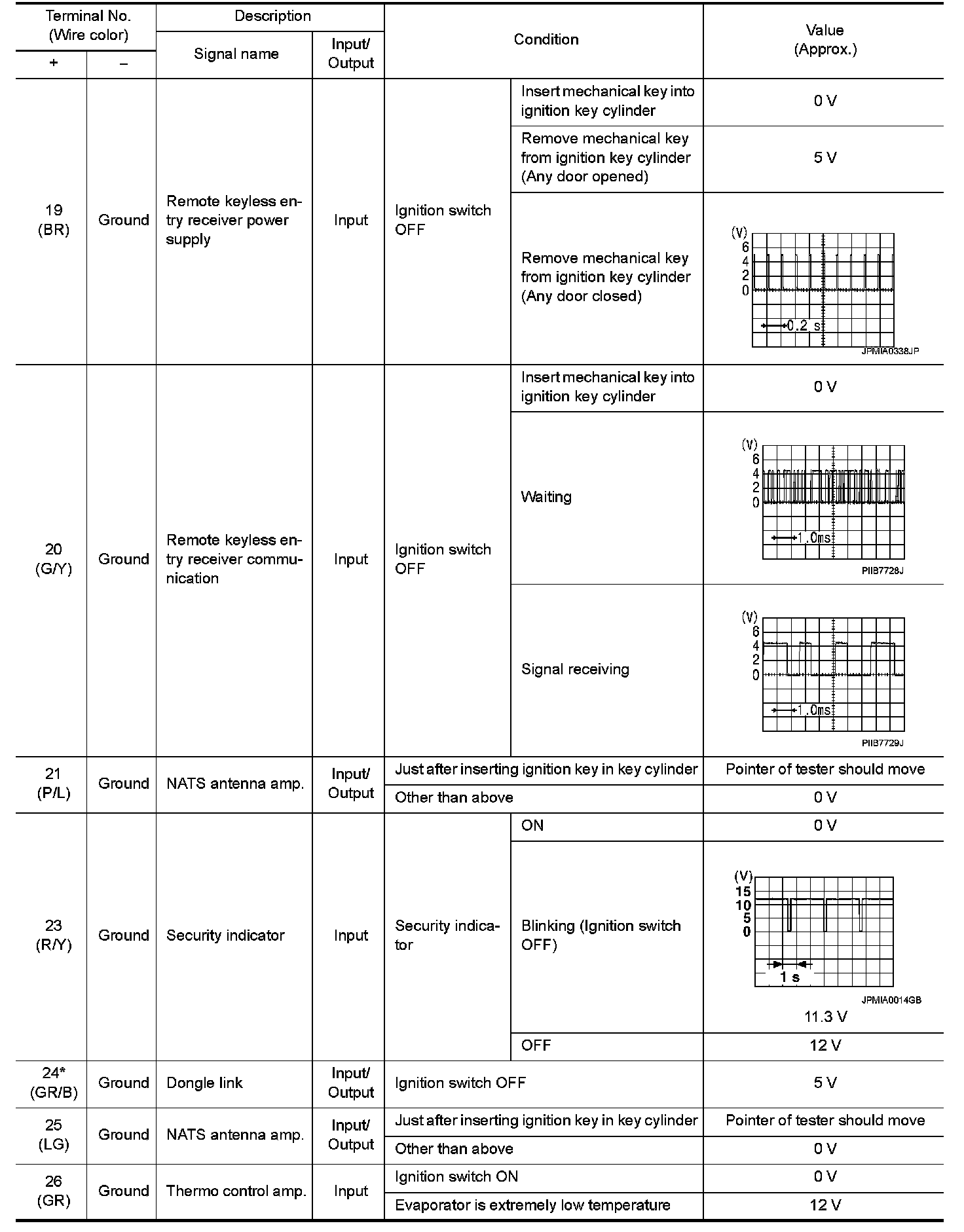

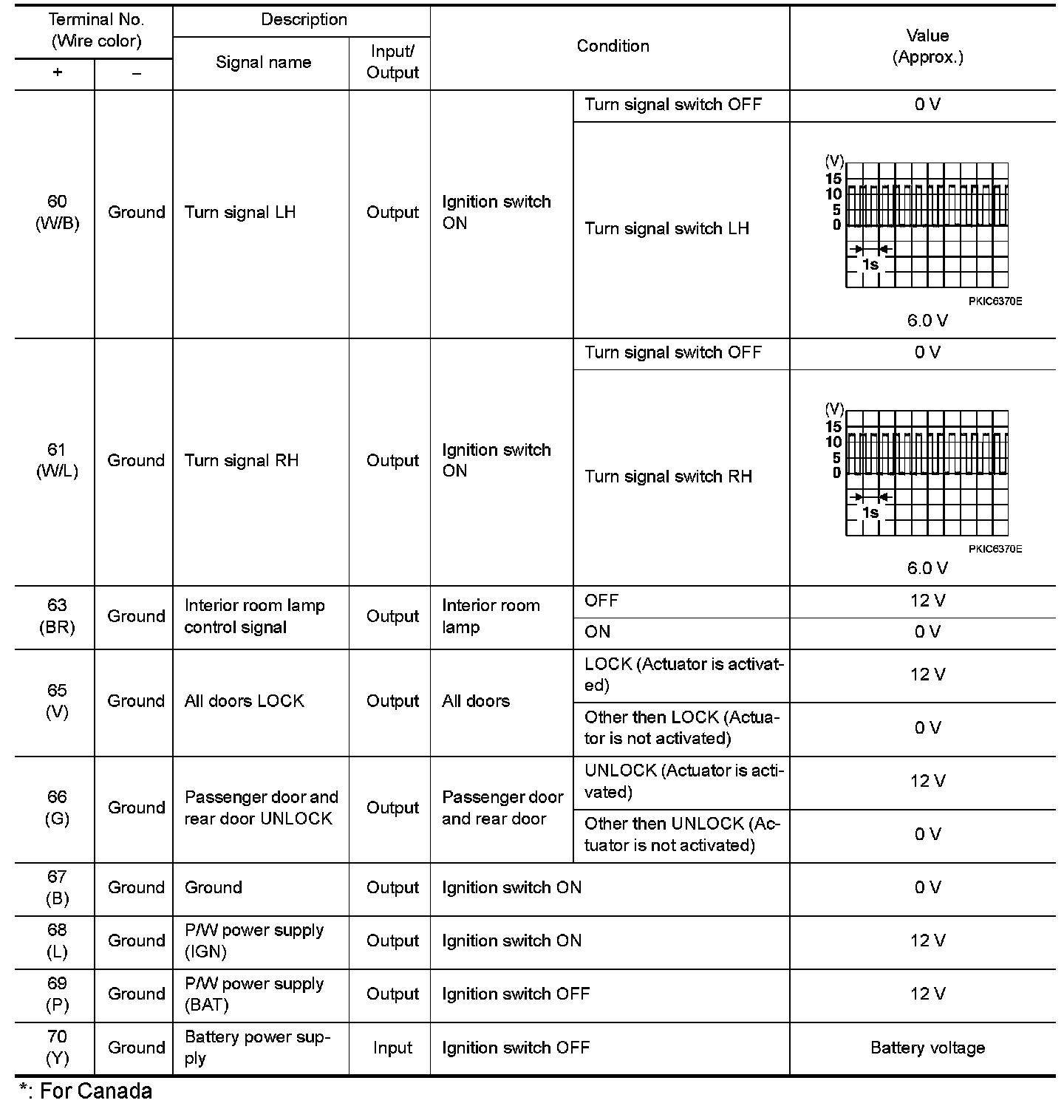

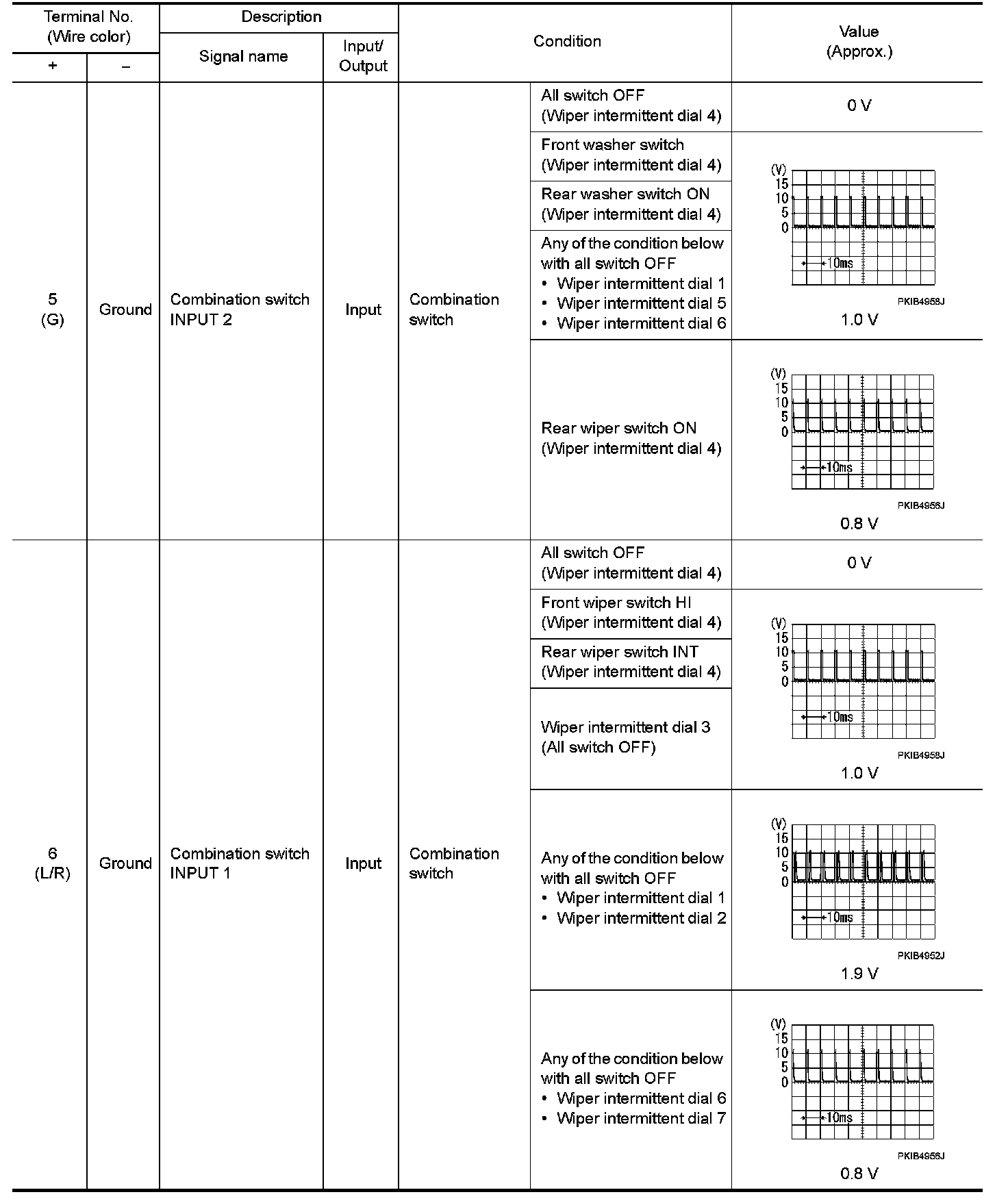

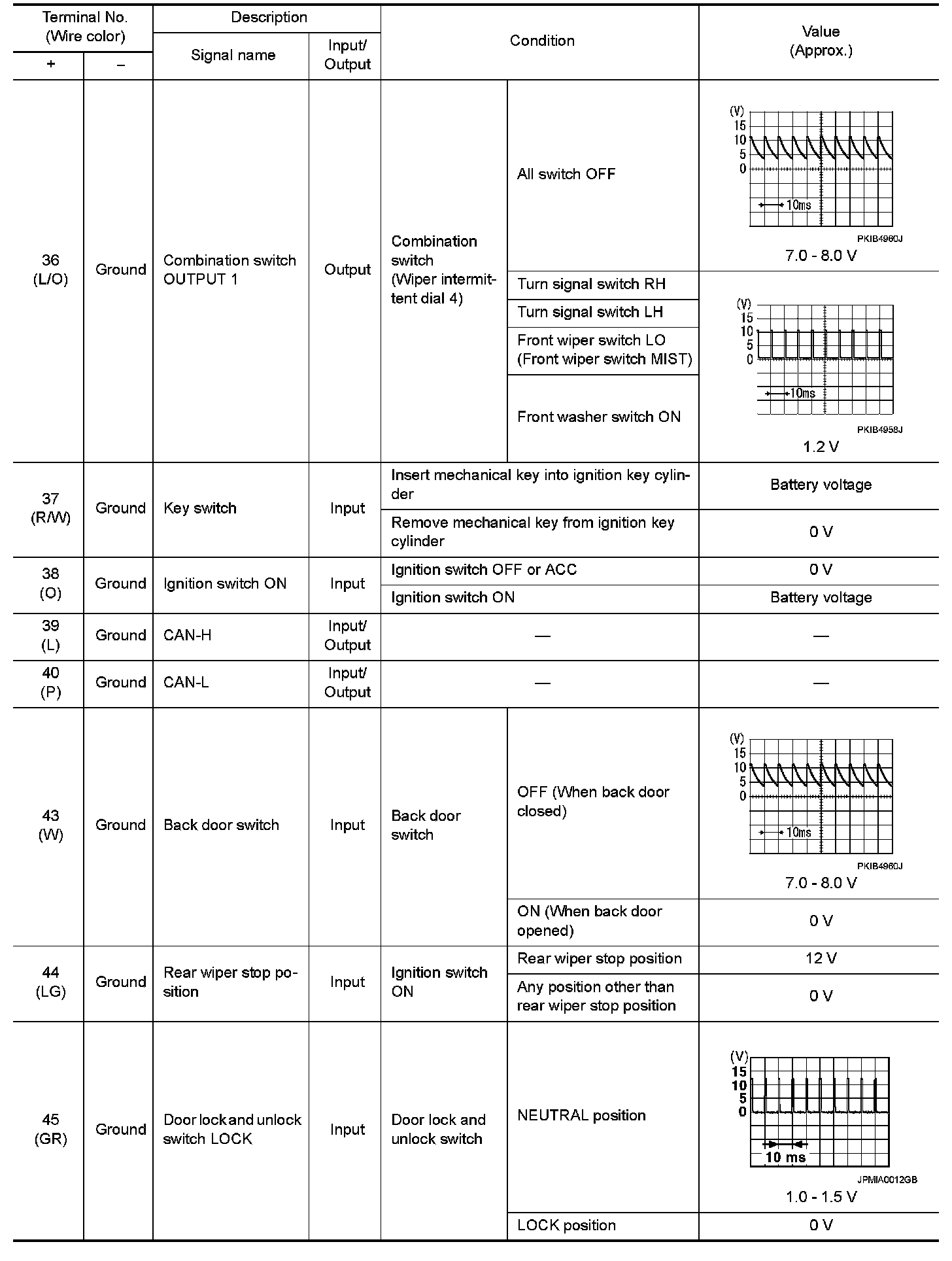

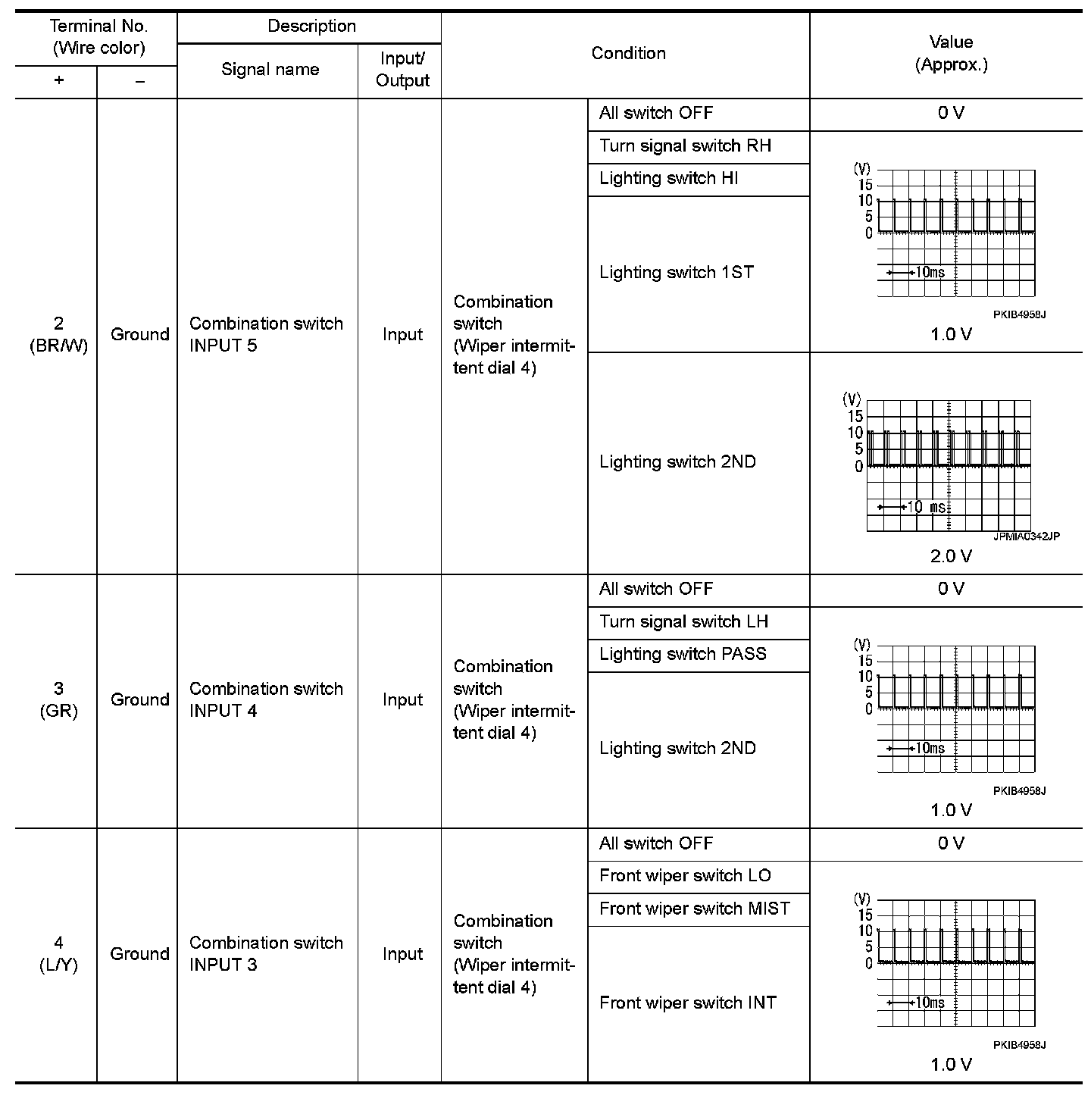

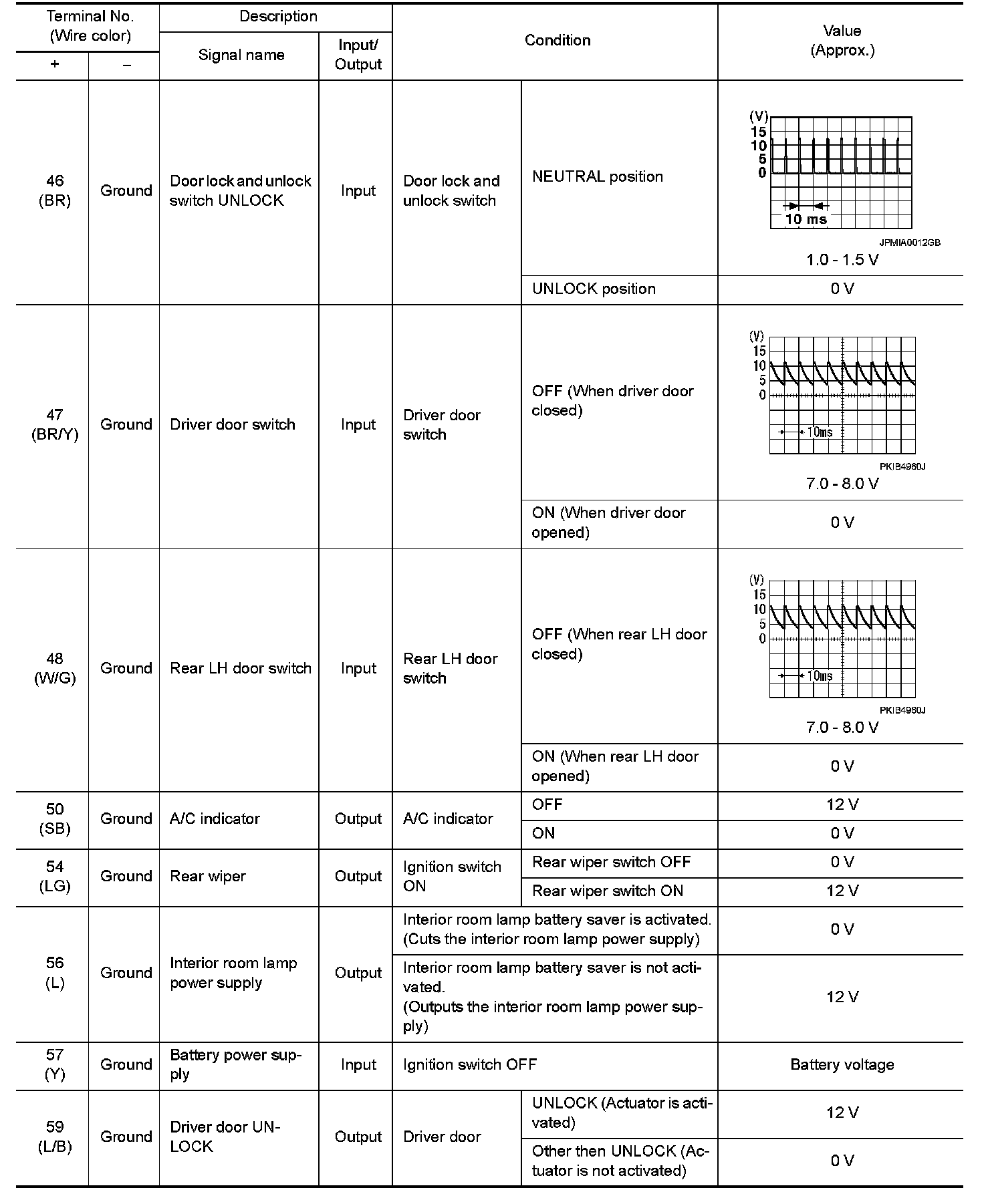

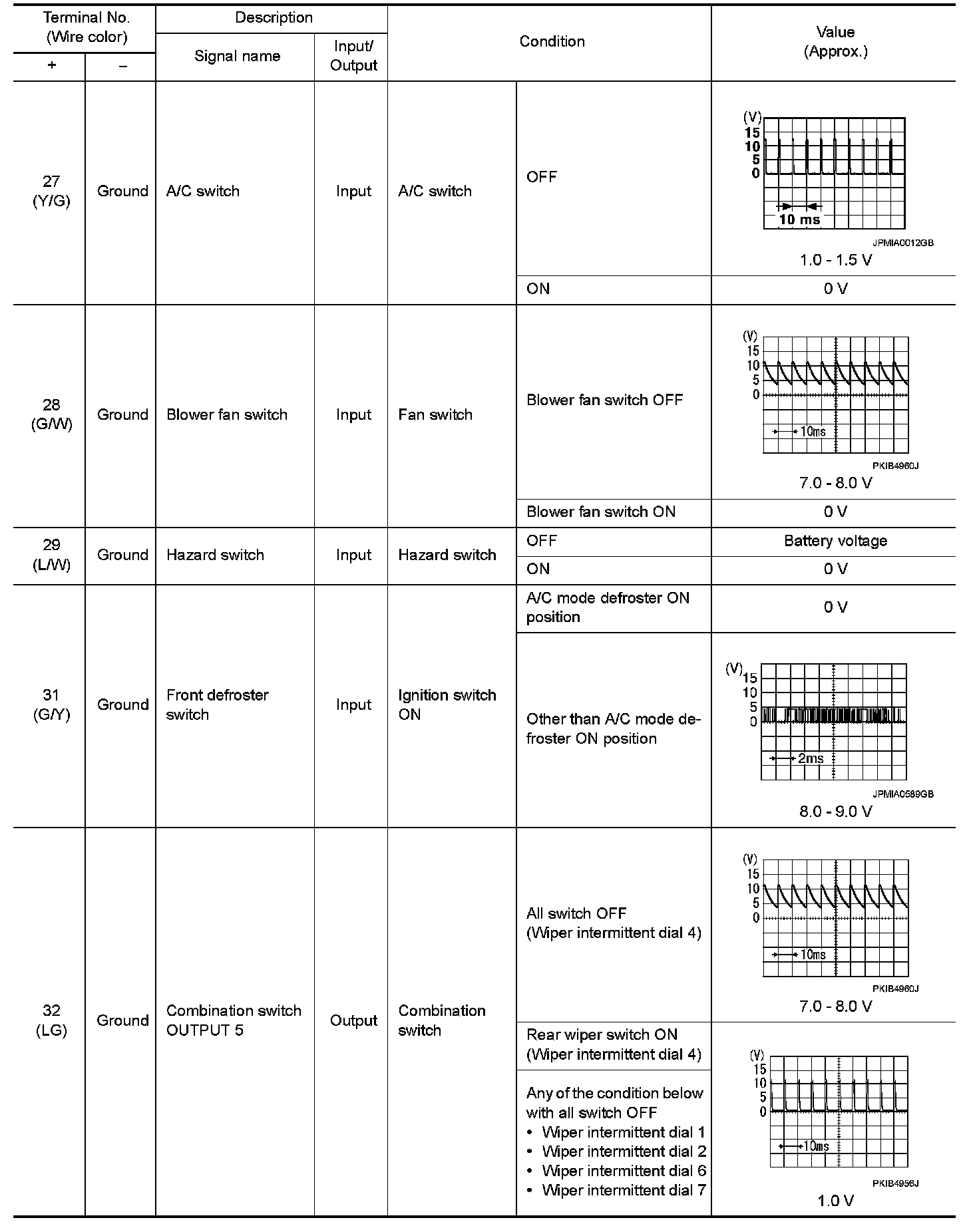

PHYSICAL VALUES














































*: For Canada
