Front Door Lock
>>

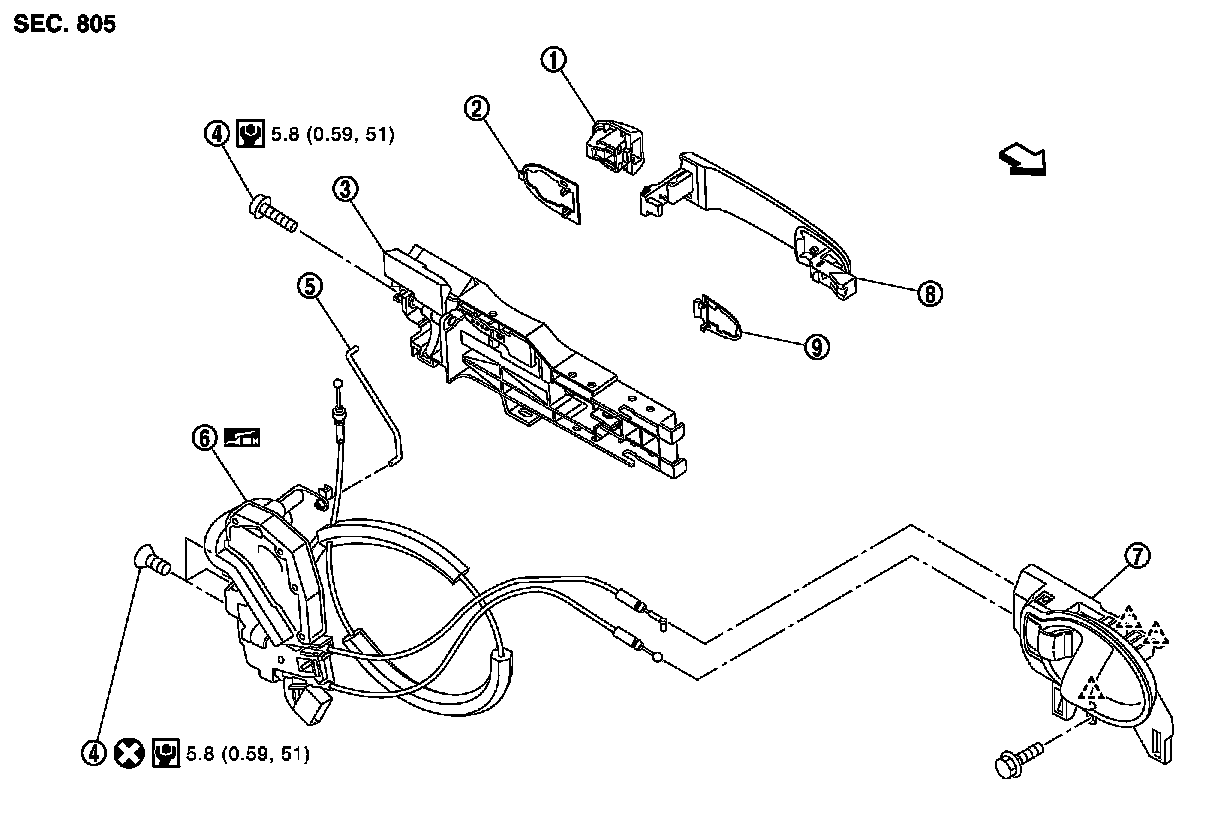

Exploded View
>>
With Intelligent Key System
With Intelligent Key System
FRONT DOOR LOCK

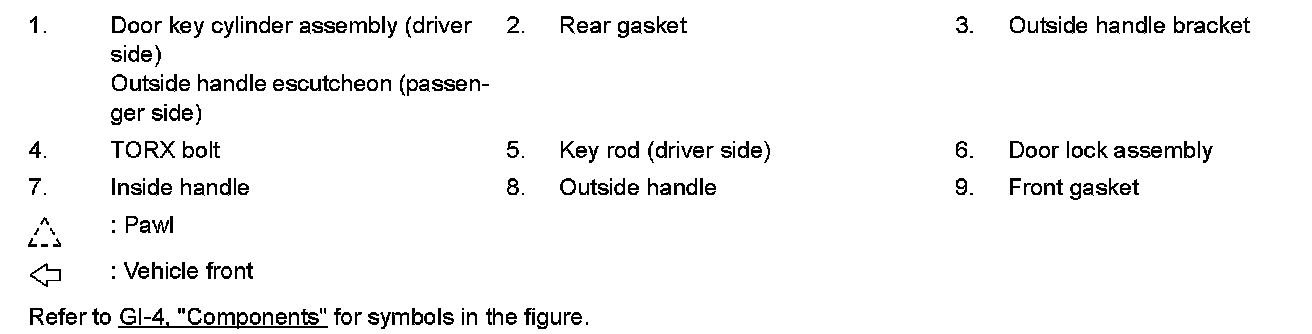

DOOR LOCK : Exploded View
