Cube L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Fender
>>
Front Fender
>>
Service and Repair
>>

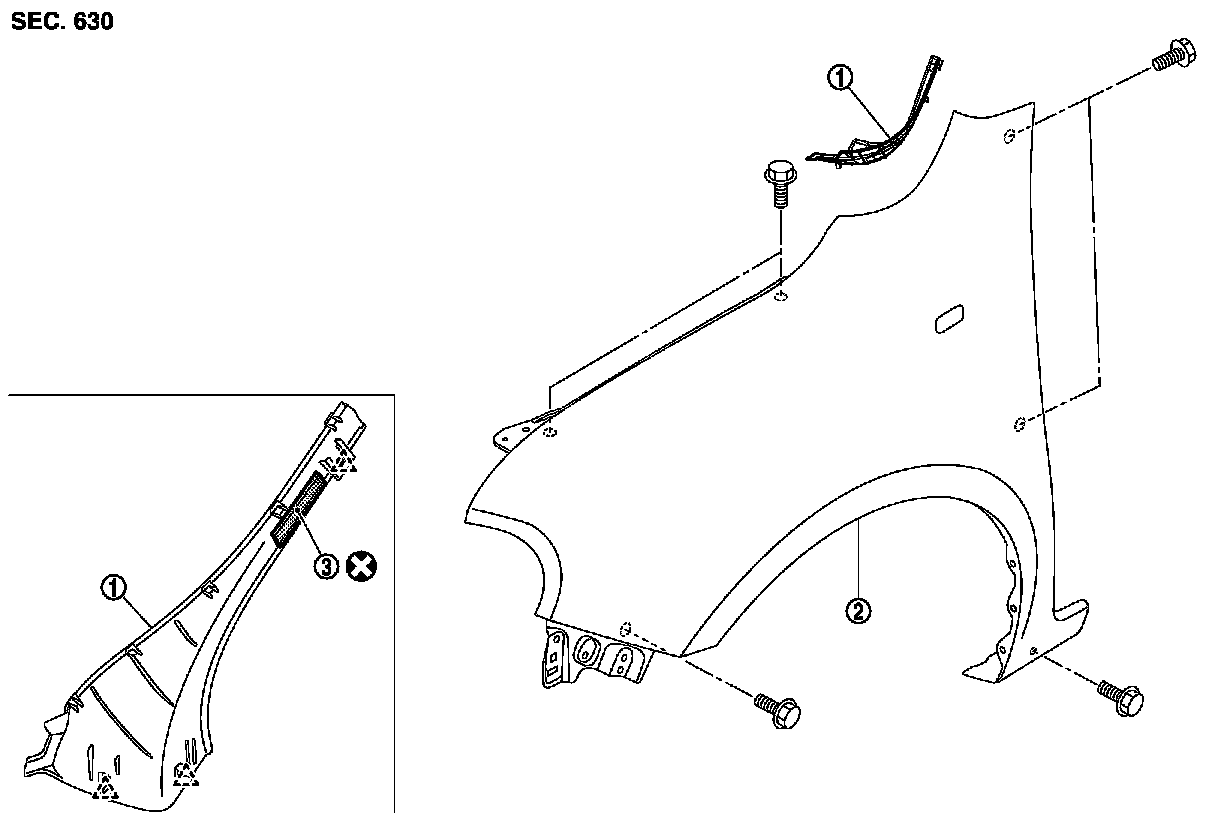

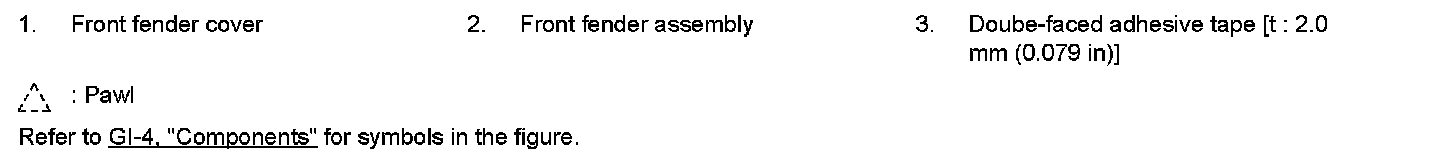

Exploded View
>>
With Intelligent Key System
With Intelligent Key System
FRONT
FENDER
Exploded View
