Exploded View
>>
With Intelligent Key System
With Intelligent Key System
BACK DOOR

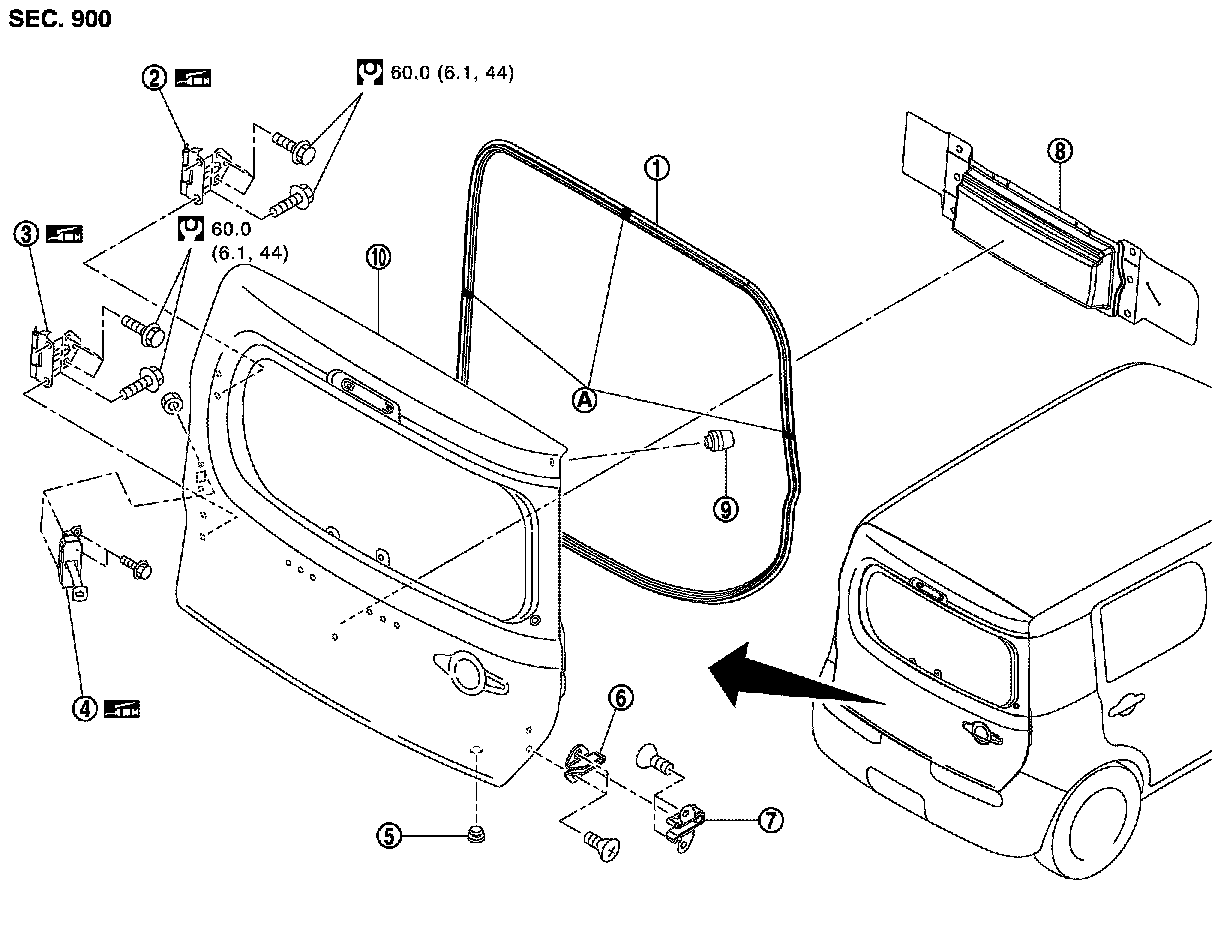

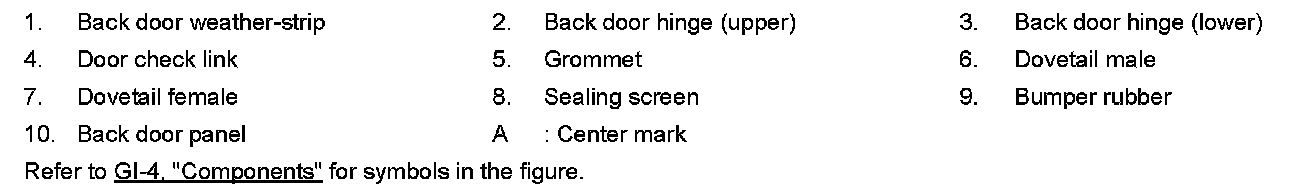

BACK DOOR HINGE : Exploded View
