Diagnostic Work Sheet

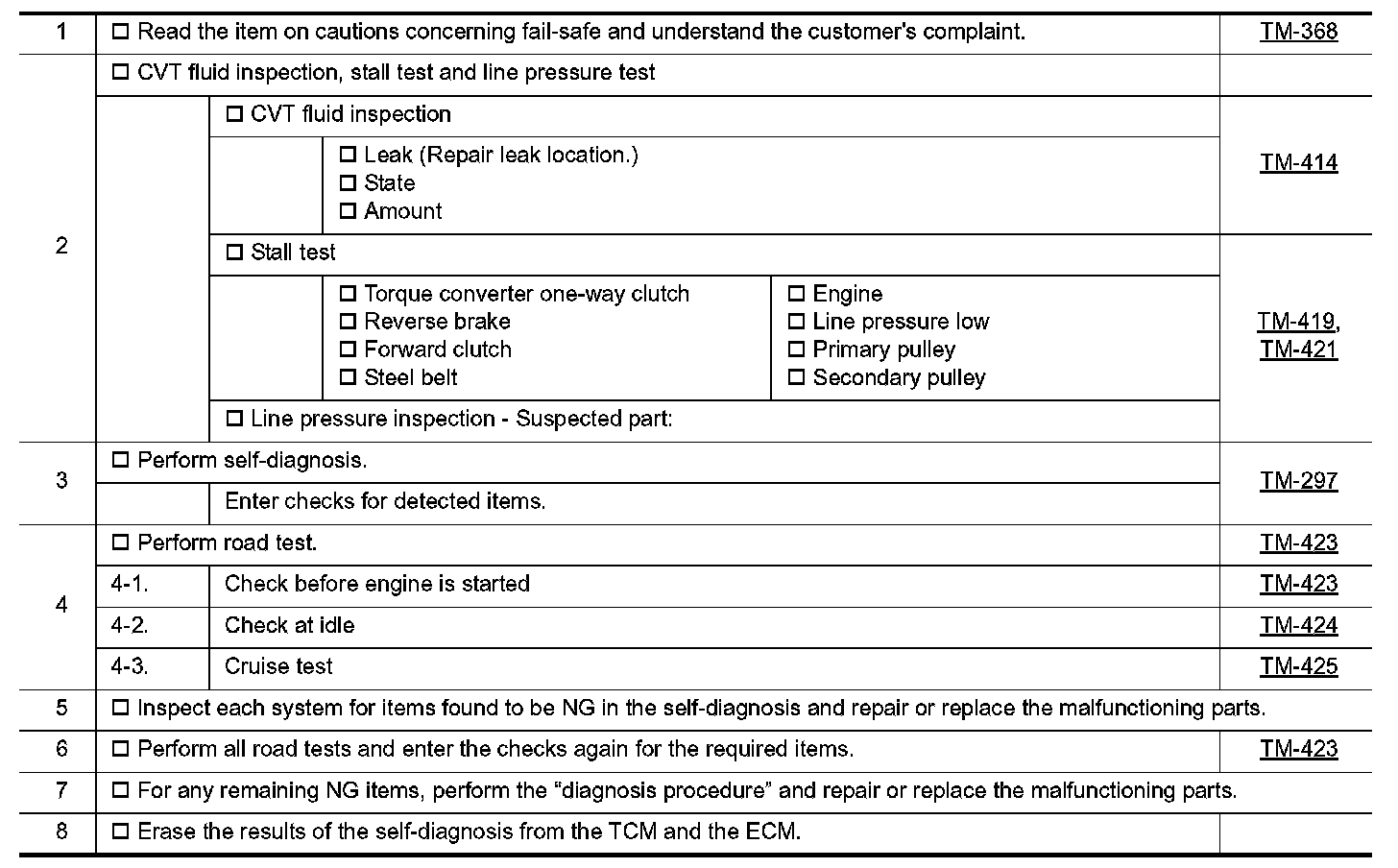

DIAGNOSIS AND REPAIR WORK FLOW

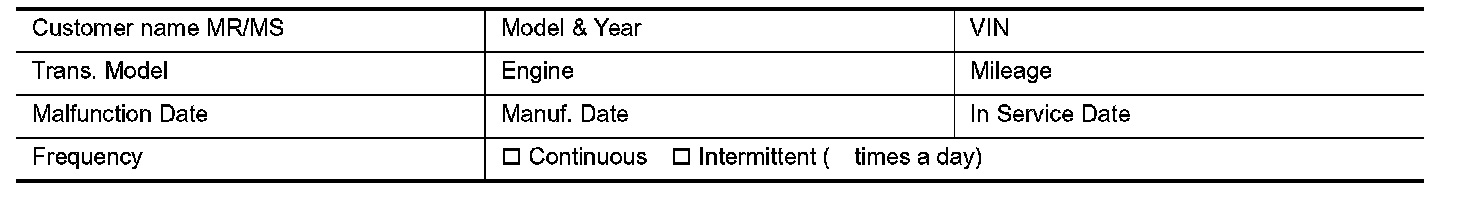

Diagnostic Work Sheet

INFORMATION FROM CUSTOMER

- WHAT.....Vehicle & CVT model
- WHEN.....Date, Frequencies
- WHERE...Road conditions
- HOW.......Operating conditions, Symptoms
