Power Distribution System Sedan
Power Distribution System Sedan
POWER DISTRIBUTION SYSTEM

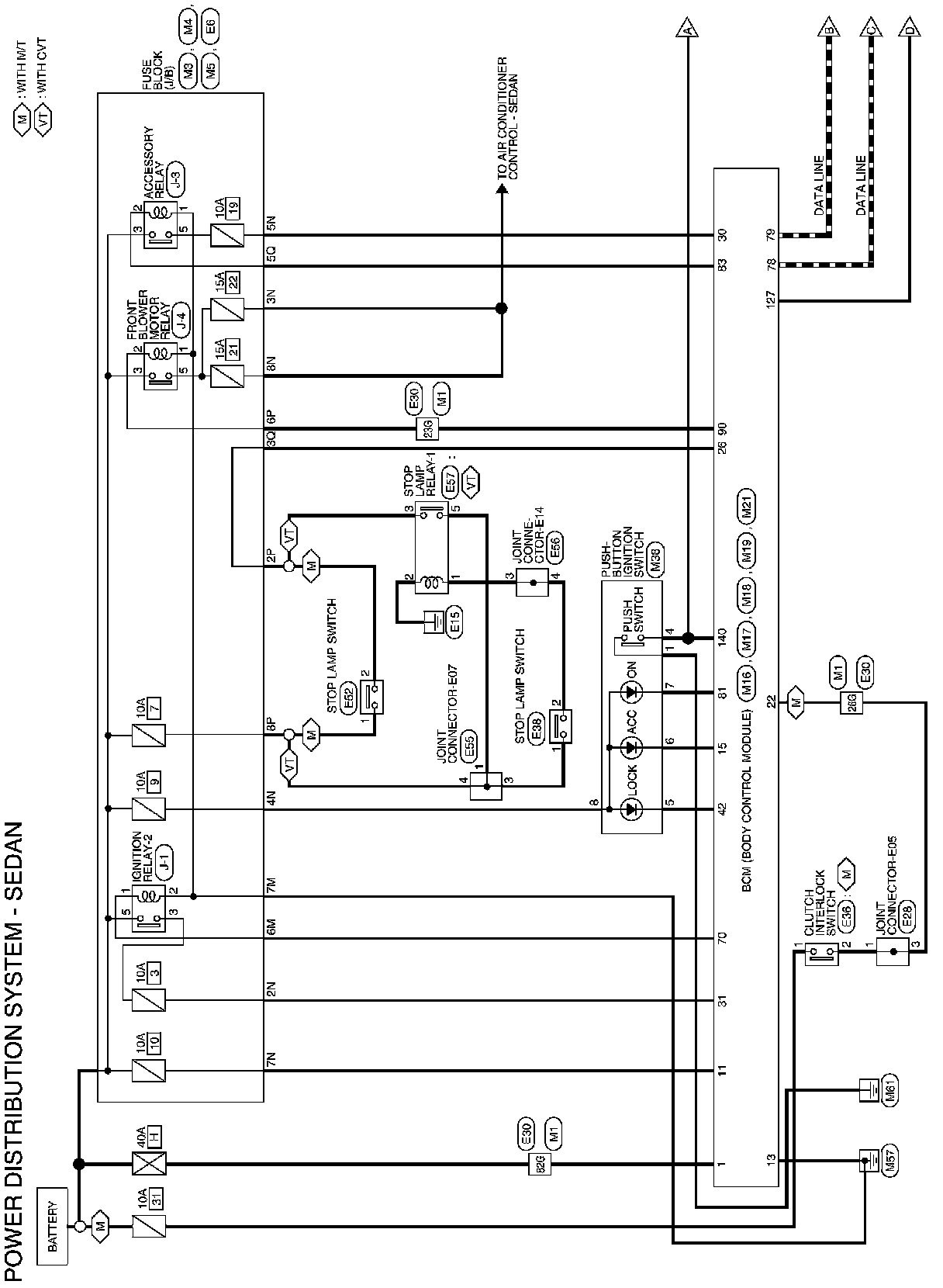

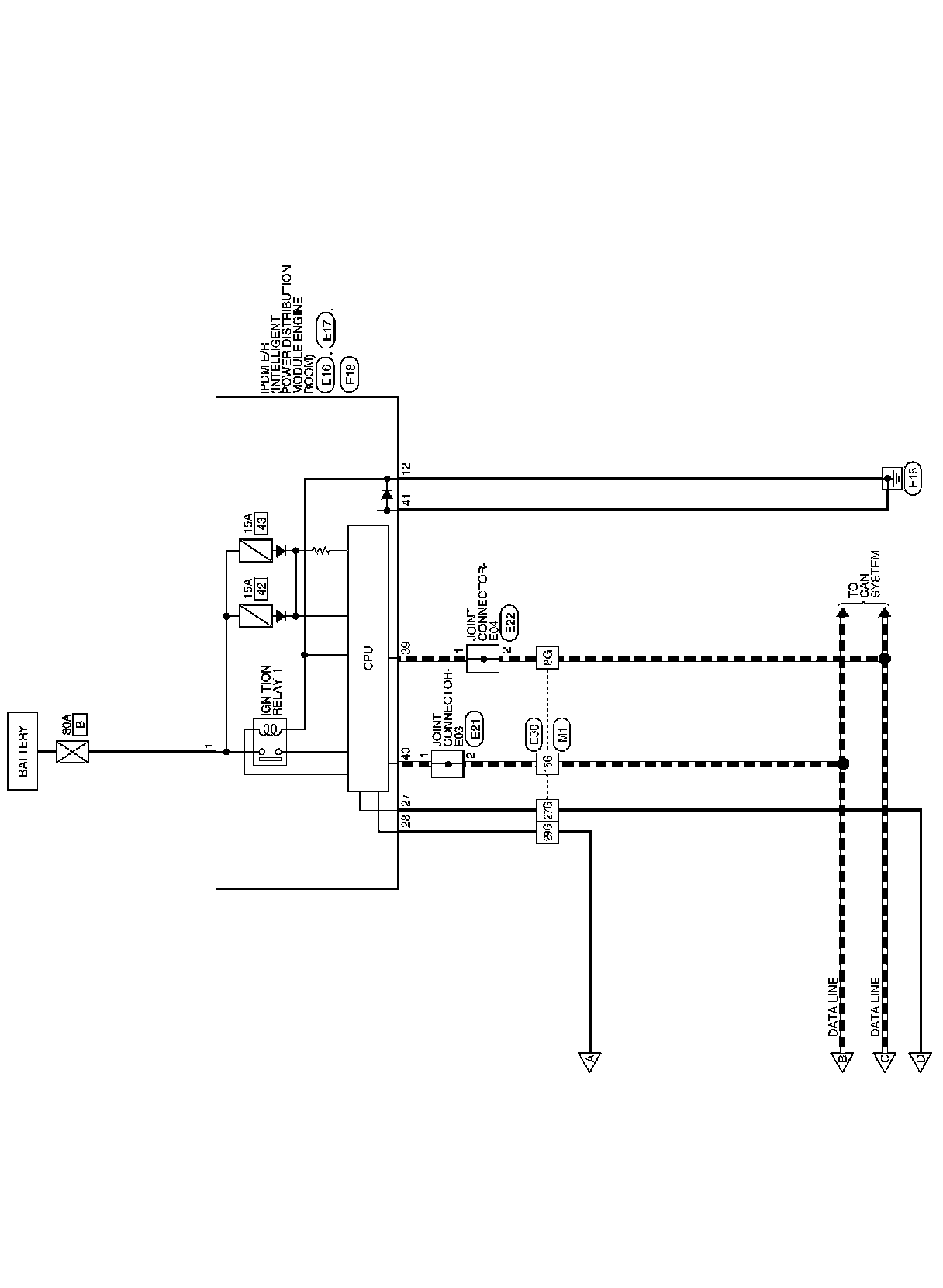

Wiring Diagram - Sedan
