Auxiliary Input Jack

AUXILIARY INPUT JACKS

Removal and Installation


REMOVAL

1.Remove the center console. Removal And Installation.

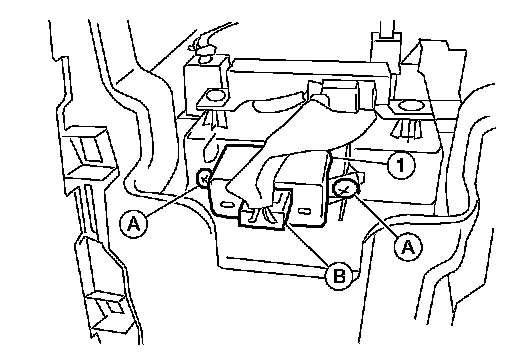

2.Disconnect the auxiliary input jacks connector (B).
3.Remove the auxiliary input jacks screws (A).
4.Remove the auxiliary input jacks (1).

INSTALLATION

Installation is in the reverse order of removal.
