A/T

STARTER MOTOR

A/T : Removal and Installation


Removal

1.Disconnect the battery cable from the negative terminal.
2.Remove engine undercover using power tools.

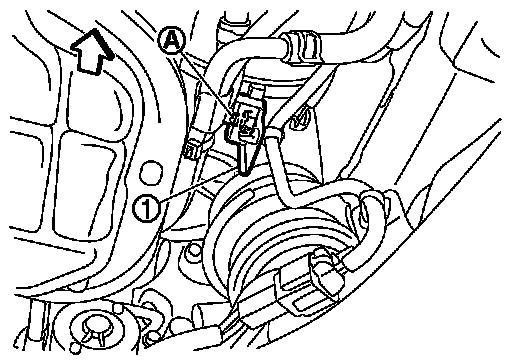

3.Remove "B" terminal nut (1).





4.Disconnect "S" connector (A).
5.Remove starter motor mounting bolts (B) and harness bracket, using power tools.

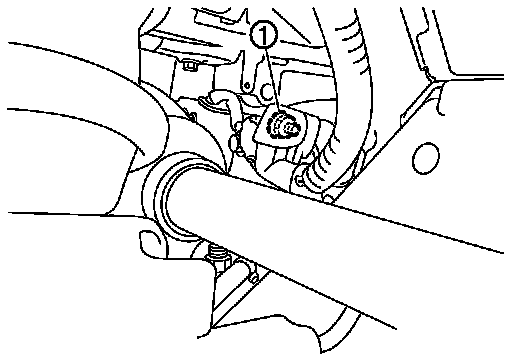

6.Remove the bolt (A) and remove the harness bracket (1).





7.Remove A/T fluid cooler tube clip bolts and bracket. Exploded View.

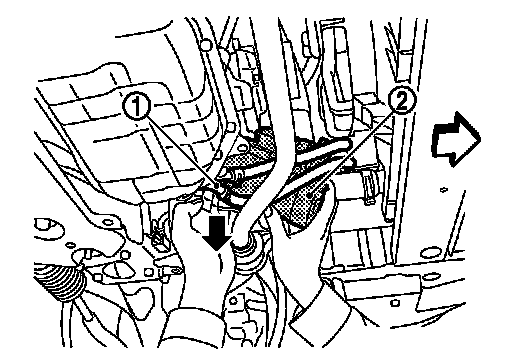

8.Move A/T fluid cooler tube (1) downward.
9.Remove starter motor (2) forward from the vehicle.






INSTALLATION

Install in the reverse order of removal.

CAUTION:
Be sure to tighten "B" terminal nut carefully.
