Removal And Installation

CRASH ZONE SENSOR

Removal and Installation


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.
- Never use the air tools or electric tools for servicing.

REMOVAL

1.Remove the reservoir tank. Exploded View.
2.Remove the crash zone sensor fixing nut.
3.Disconnect the crash zone sensor harness connector.

CAUTION:

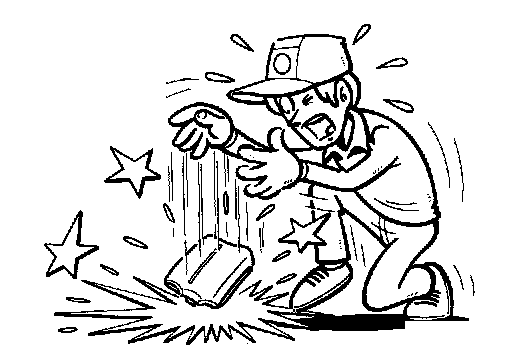

- Never impact the crash zone sensor.
- Replace the crash zone sensor if it has been dropped or sustained an impact.
- Replace the crash zone sensor of deployed driver air bag module, deployed passenger air bag module, or deployed seat belt pre-tensioner.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
- Never use the old fixing nut after removal, replace with the new nut.
- Never damage the harness while installing.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. Coupe.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.
