7AT RE7R01A
>>
Shift Pattern Control
>>
Shift Pattern
>>
System Diagram
System Diagram

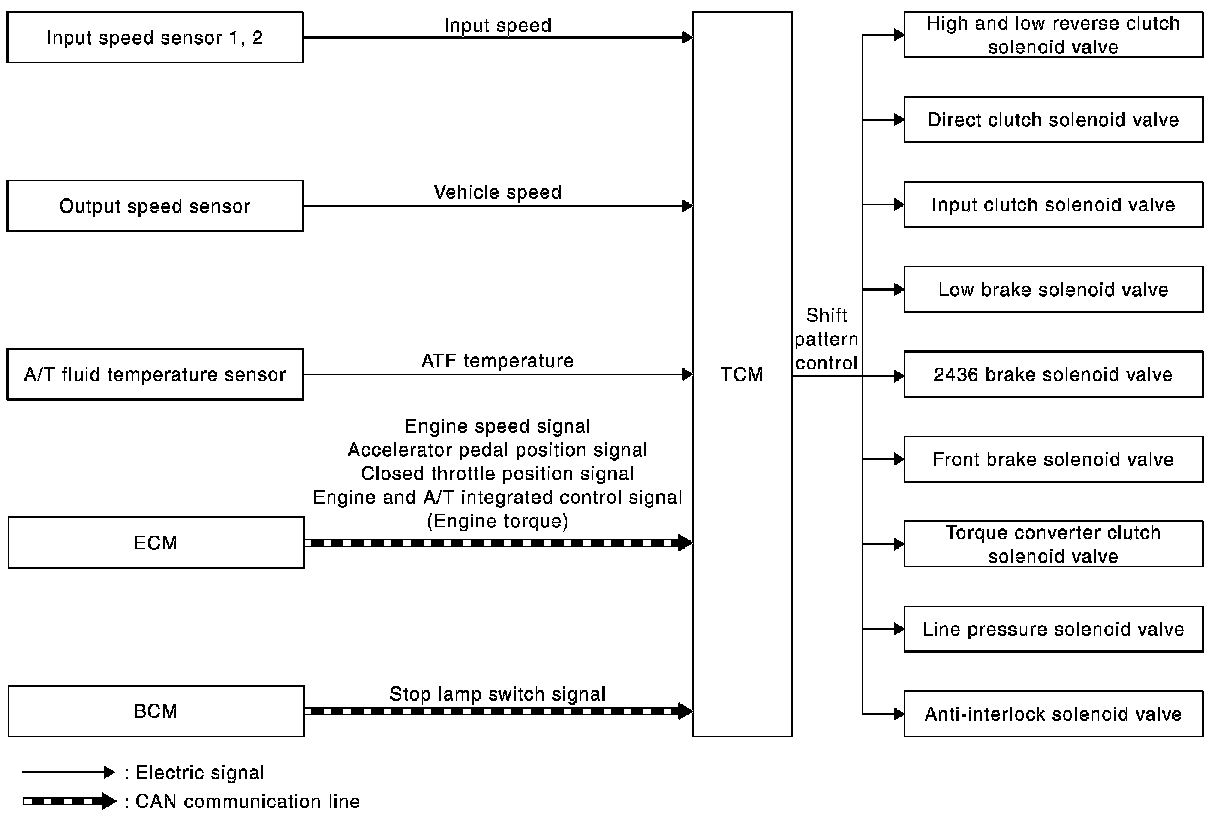

SHIFT PATTERN CONTROL
SHIFT PATTERN : System Diagram
