7AT RE7R01A
>>
Line Pressure Control
>>

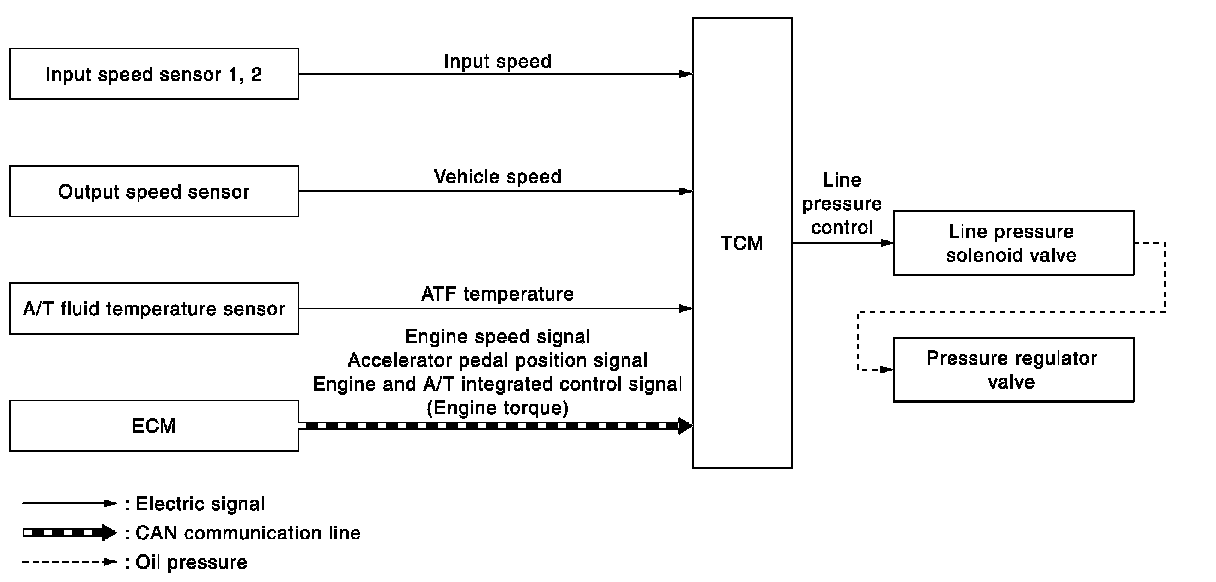

System Diagram
System Diagram
LINE PRESSURE CONTROL
System Diagram
