Refilling

REAR DIFFERENTIAL GEAR OIL

Refilling

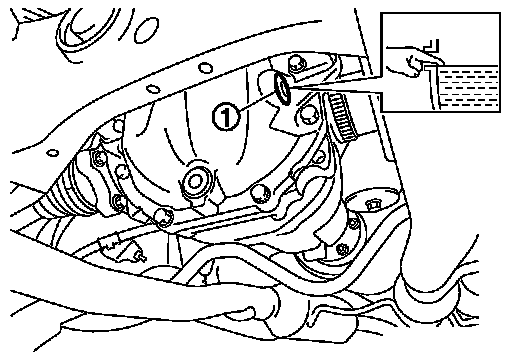

1.Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
Oil grade and viscosity: Refer to "FOR NORTH AMERICA : Fluids and Lubricants" (for NORTH AMERICA),
"FOR MEXICO : Fluids and Lubricants" (except for NORTH AMERICA).
Oil capacity: General Specification.
2.After refilling oil, check oil level. Set a gasket to filler plug, then install it to final drive assembly. Refer to
Exploded View.

CAUTION:
Never reuse gasket.
