INTAKE SENSOR

Removal and Installation


REMOVAL

1.Remove high-pressure evaporator pipe and low-pressure evaporator pipe. Exploded View.
2.Disconnect intake sensor connector.

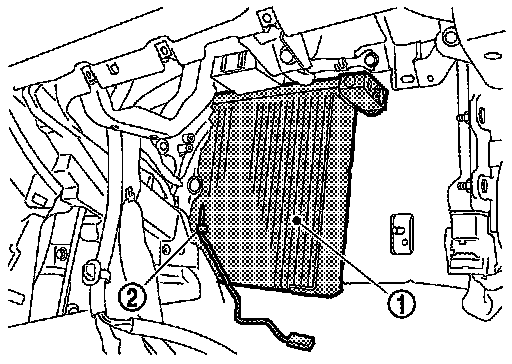

3.Slide evaporator (1) toward the right side of the vehicle (as shown in the figure), and then remove intake sensor (2).

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
- Replace O-rings with new ones. Then apply the compressor oil to them when installing.
- Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor can be located in the same position.
- Never rotate the bracket insertion part when removing and installing the intake sensor.
- Check for leakages when recharging refrigerant. Leak Test.
