With 7 Inch Display

IN-VEHICLE SENSOR

Removal and Installation


REMOVAL

1.Remove instrument lower panel LH. Exploded View.

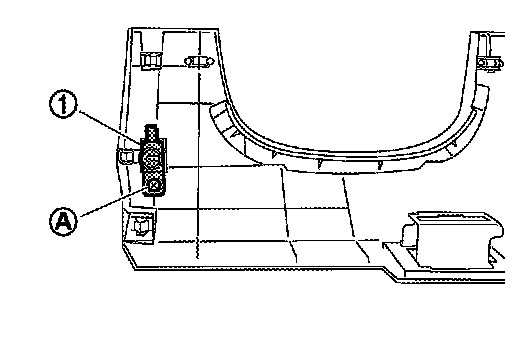

2.Remove fixing screw (A), and then remove in-vehicle sensor (1).

INSTALLATION

Install in the reverse order of removal.
