Blower Unit

BLOWER UNIT

BLOWER UNIT : Removal and Installation


REMOVAL

1.Remove instrument lower panel RH. Exploded View.
2.Disconnect intake door motor connector.
3.Disconnect blower motor connector.

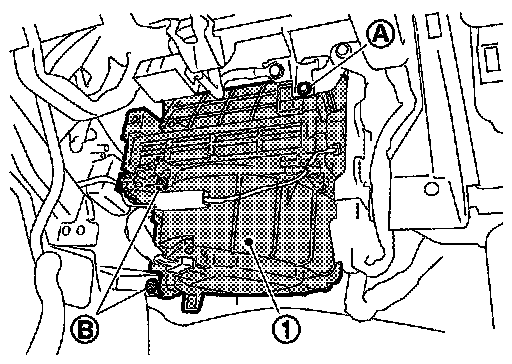

4.Remove mounting bolt (A) and fixing screws (B), and then remove blower unit assembly (1).

CAUTION:
Move blower unit assembly rightward, and remove locating pin (1 part) and joint. Then remove blower unit assembly downward.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

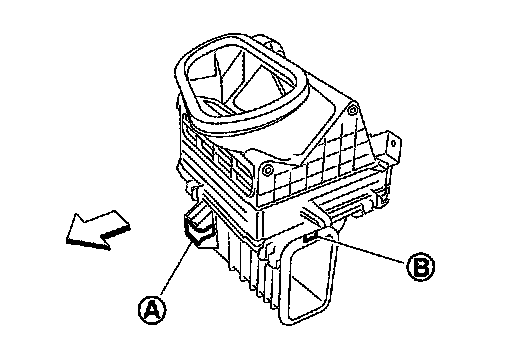

Check locating pin (A) and joint (B) are securely inserted.

White arrow indicates : Vehicle front
