Side Defroster Nozzle

DUCT AND GRILLE

SIDE DEFROSTER NOZZLE : Removal and Installation


REMOVAL

1.Remove instrument panel assembly. Exploded View.

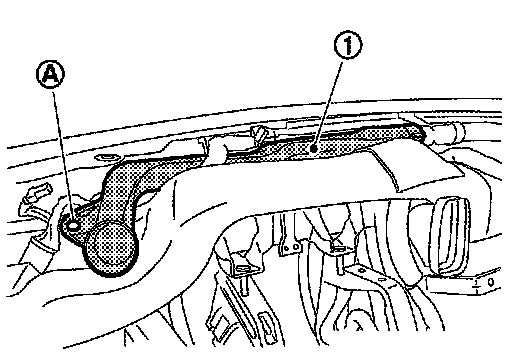

2.Remove fixing clip (A), and then remove side defroster nozzle (1).

INSTALLATION

Install in the reverse order of removal.
