Front Defroster Nozzle

DUCT AND GRILLE

FRONT DEFROSTER NOZZLE : Removal and Installation


REMOVAL

1.Remove side defroster nozzles. Exploded View.

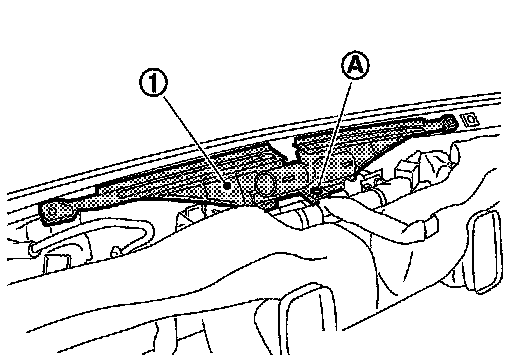

2.Remove fixing screw (A), and then remove front defroster nozzle (1).

INSTALLATION

Install in the reverse order of removal.
