Foot Duct

DUCT AND GRILLE

FOOT DUCT : Removal and Installation


REMOVAL

Driver Side
1.Remove heater & cooling unit assembly. Exploded View.
2.Remove heater pipe cover. Exploded View.

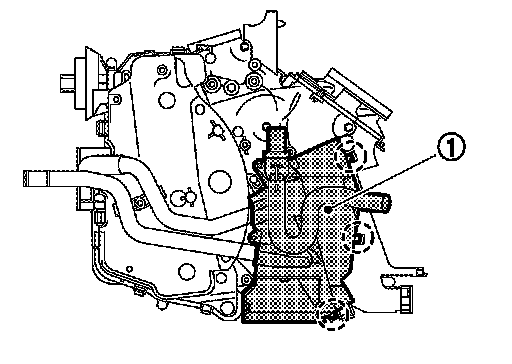

3.Disengage fixing pawls, and then remove foot duct LH (1).

Broken circle indicates : Pawl

Passenger Side
1.Set the temperature at full cold.

CAUTION:
The angle may be out, when installing the air mix door motor to the air mix door, unless the above procedure is performed.
2.Disconnect the battery cable from the negative terminal.
3.Remove heater & cooling unit assembly. Exploded View.
4.Remove air mix door motor and mode door motor. Refer to the following.
- Without 7 Inch Display. (WITHOUT 7 INCH DISPLAY)
- With 7 Inch Display. (WITH 7 INCH DISPLAY)
5.Remove evaporator cover. Exploded View.

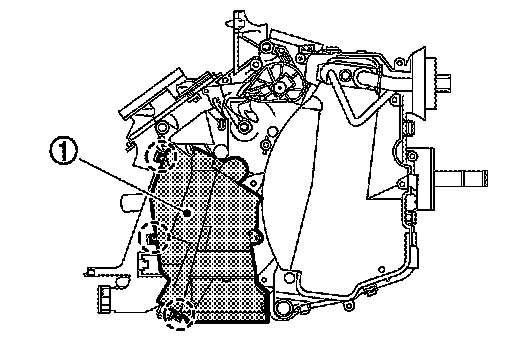

6.Disengage fixing pawls, and then remove foot duct RH (1).

Broken circle indicates : Pawl


INSTALLATION

Install in the reverse order of removal.
