Control Valve Assembly and Accumulators

Control Valve Assembly and Accumulators

REMOVAL





1. Drain ATF from transaxle.

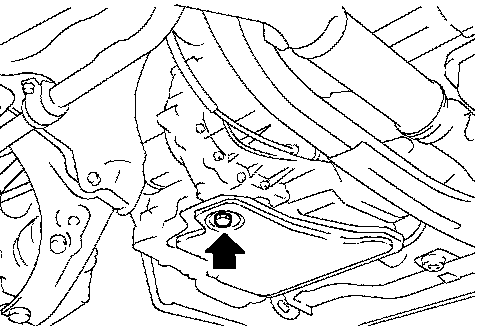

2. Remove oil pan and gasket.
^ Always replace oil pan bolts as they are self-sealing bolts.

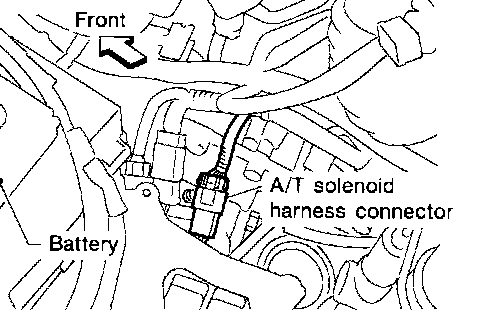

3. Disconnect A/T solenoid valve harness connector.





4. Remove stopper ring from A/T solenoid harness terminal body.

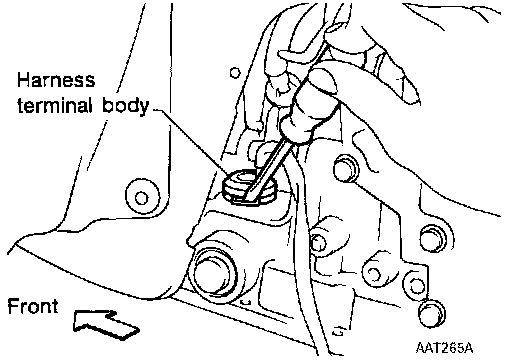

5. Remove A/T solenoid harness by pushing terminal body into transmission case.





6. Remove control valve assembly mounting bolts A, B and C.

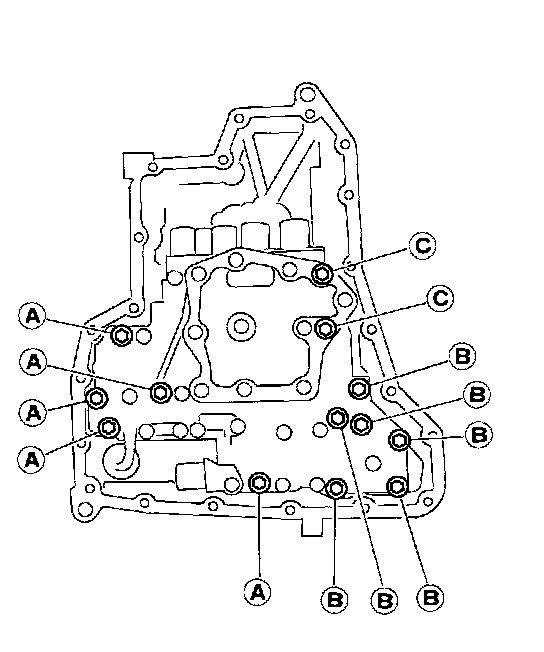

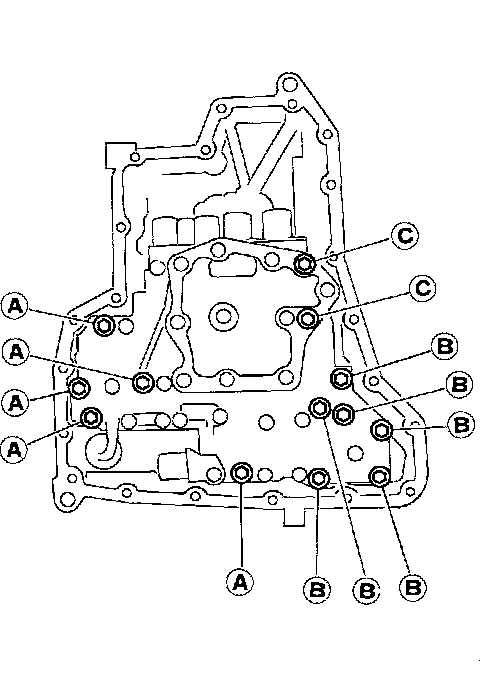

Bolt length, number and location:

^ Be careful not to drop manual valve and servo release accumulator return springs.
7. Disassemble and inspect control valve assembly if necessary.





8. Remove servo release and N-D accumulators by applying compressed air if necessary.
^ Hold each piston with a clean, lint-free towel.

INSTALLATION





^ Tighten mounting bolts A, B and C to specification.
: 7 - 9 Nm (0.7 - 0.9 kgf-cm, 61 - 78 inch lbs.)

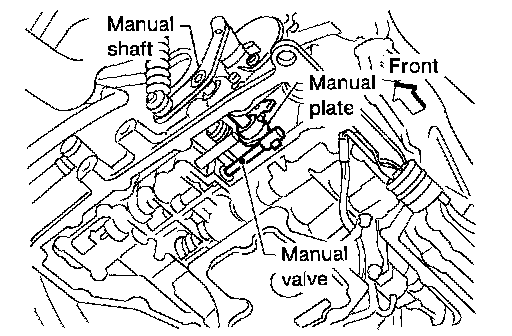

^ Set manual shaft in Neutral position, then align manual plate with groove in manual valve.
^ After installing control valve assembly to transmission case, make sure that selector lever can be moved to all positions.
