Radiator Cooling Fan Motor Relay: Testing and Inspection

COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Component Inspection







COOLING FAN RELAYS-1 AND -2

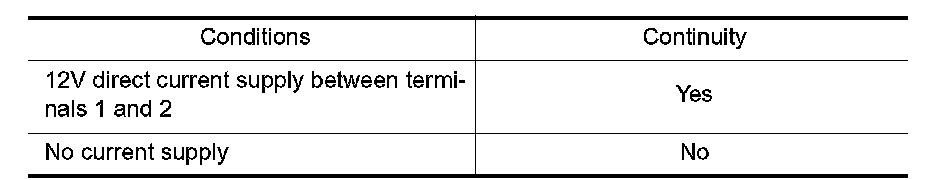

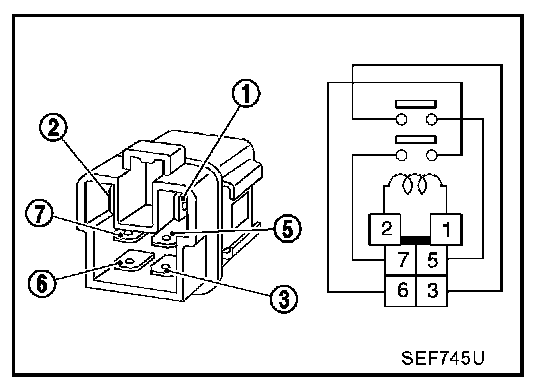

Check continuity between terminals 3 and 5, 6 and 7.
If NG, replace relay.

ENGINE OVER TEMPERATURE

Component Inspection







COOLING FAN RELAYS-1 AND -2

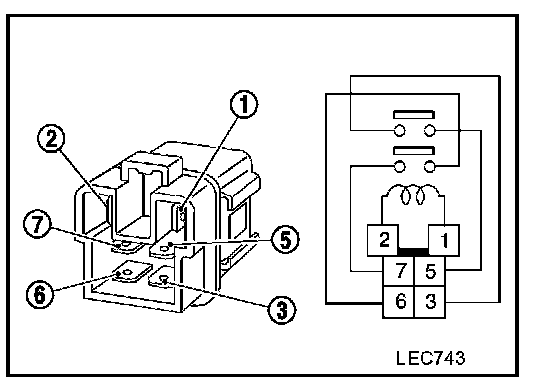

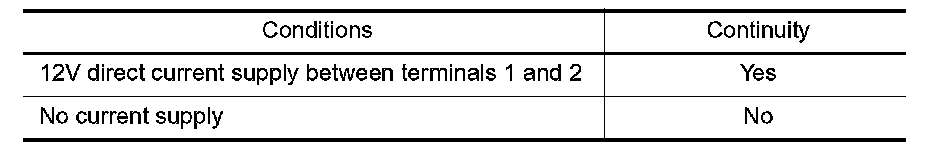

Check continuity between terminals 3 and 5, 6 and 7.
If NG, replace relay.
