Fuel Temperature Sensor: Testing and Inspection

Component Inspection







FUEL TANK TEMPERATURE SENSOR

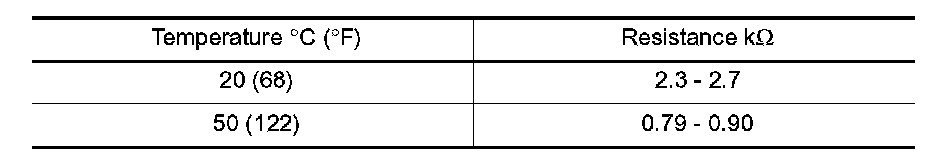

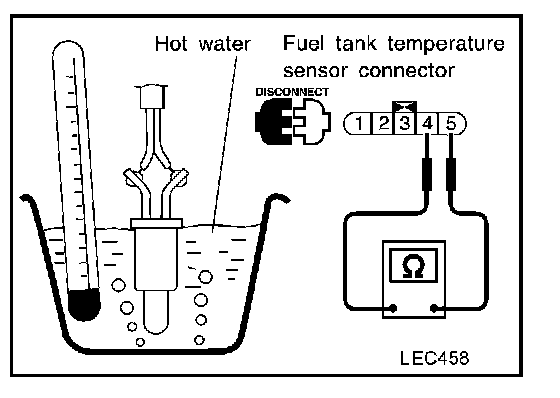

Check resistance by heating with hot water or heat gun as shown in the figure.
If NG, replace fuel tank temperature sensor.
