Home
>>
Nissan-Datsun
>>
2002
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Control Solenoid
>>
Diagrams
>>
Connector Views
Connector Views

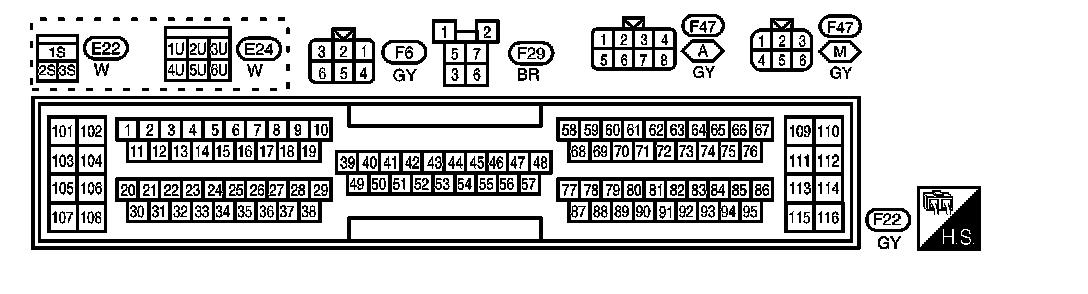

EC-EGVC/V-01 Connector Views:

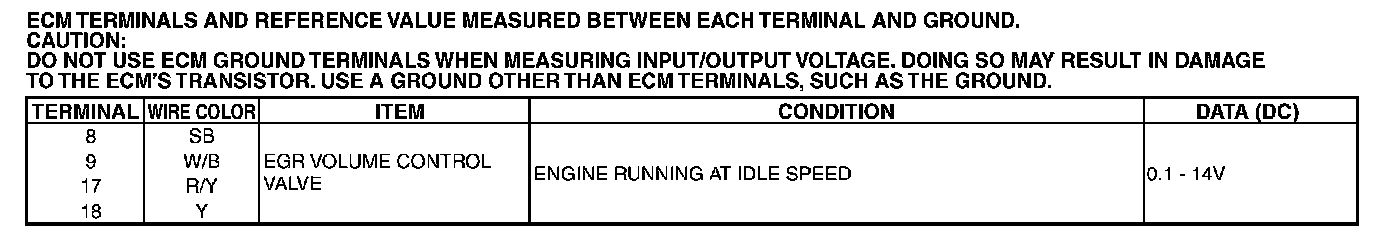

ECM Terminals And Reference Value:
