Canister Purge Volume Control Valve: Testing and Inspection

Component Inspection

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

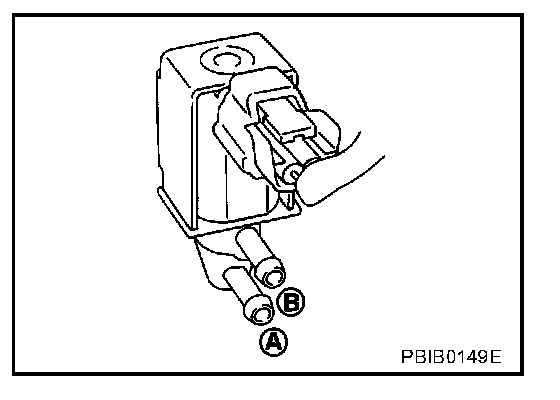

With CONSULT-II

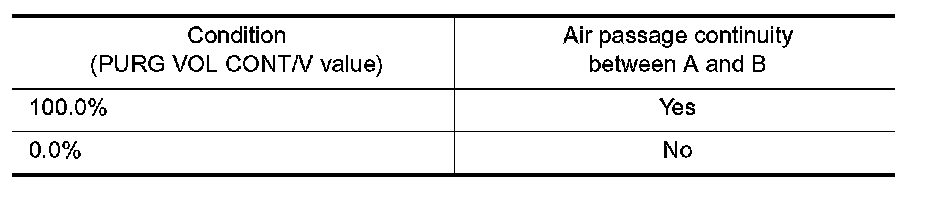

Check air passage continuity of EVAP canister purge volume control solenoid valve under the given conditions.

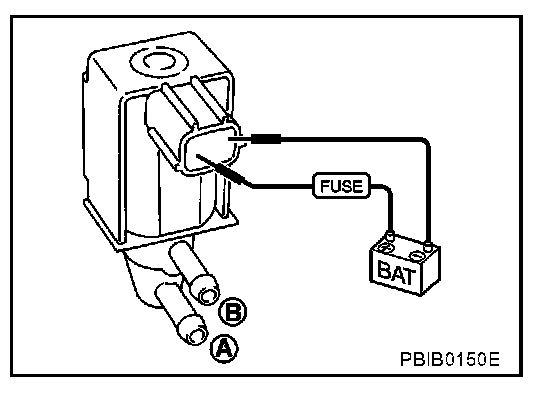

Without CONSULT-II

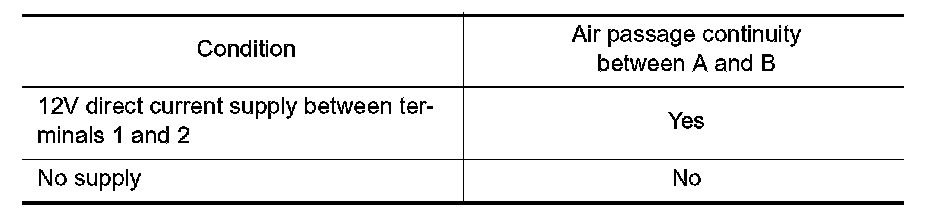

Check air passage continuity of EVAP canister purge volume control solenoid valve under the given conditions.
