Idle Speed/Throttle Actuator - Electronic
>>
Locations
>>
Connector Locations
Connector Locations

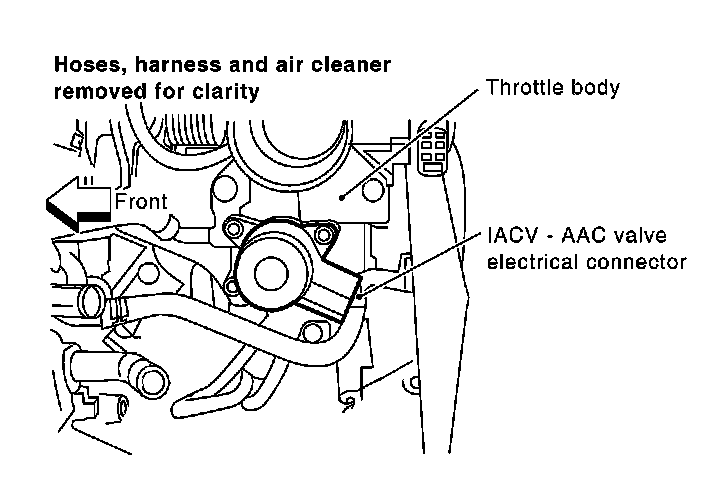

Throttle Body / IACV-AAC Valve Electrical Connector:
